4.3 Connecting water components (water installation)
As standard, every unit is equipped with a suction pipe inlet (3), a disinfected water
outlet (2), a drain water return pipe (1), and a discharge pipe (4). Make sure that the
inlet pipes and outlet pipes have been connected to the correct water tanks (or
equipment).

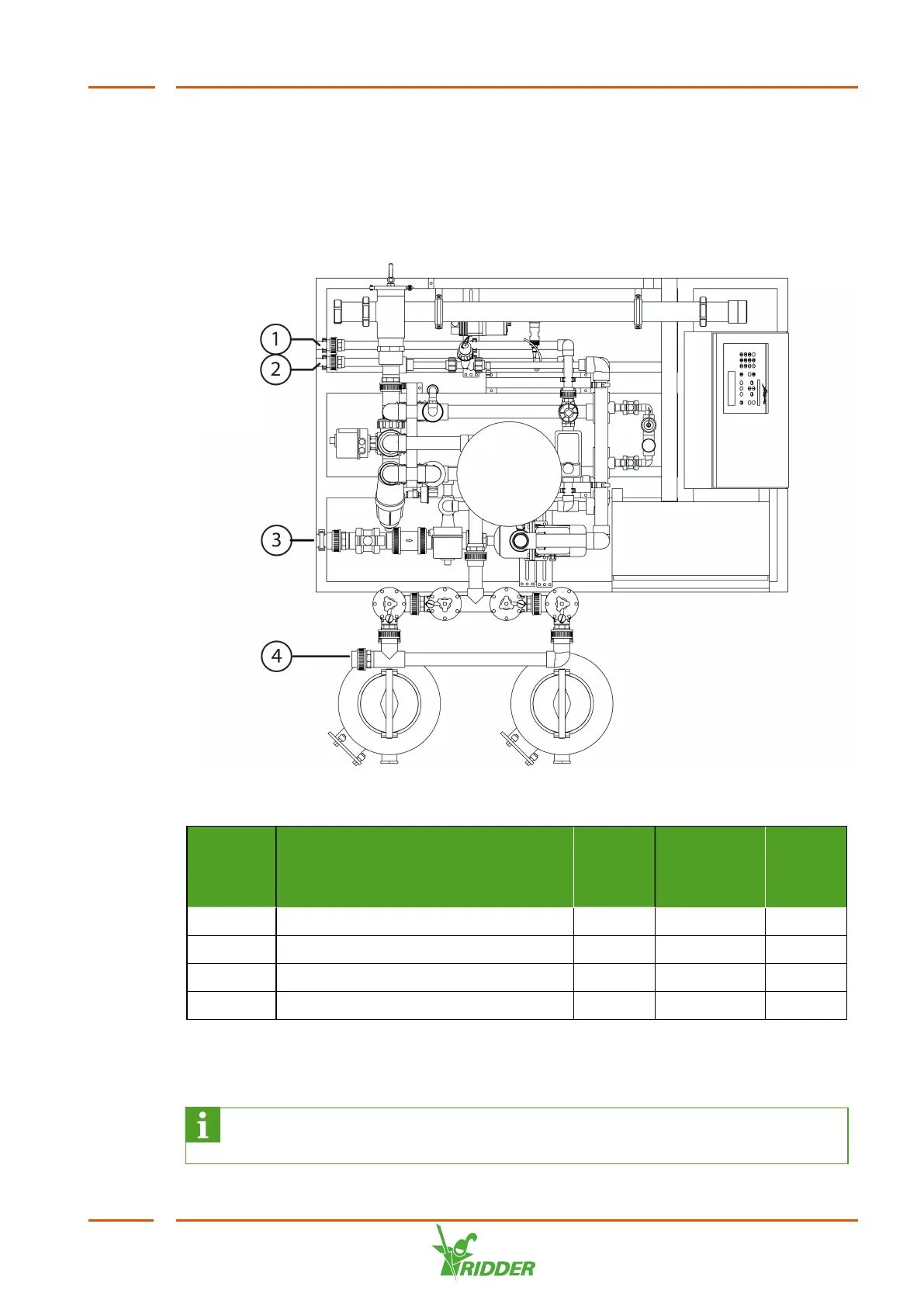

Figure 4-4: Pipe connections
No. Connection
Model
E2
(mm)
Model E4
(mm)
Model
E6
(mm)
1 Drain water return pipe (out) 32 50 50
2 Disinfected water outlet (out) 32 50 50
3 Suction pipe inlet (in) 50 50 50
4 Discharge pipe (out) 50 50 50
The unit is supplied with screw couplings. A dummy pipe is fastened to all connection
points to protect the unit during transit. Remove this pipe before connecting the
correct pipe.
All units are built in metric sizes. Metric-to-imperial adapter sets are available
from Ridder Growing Solutions.
VitaLite
27
