Publication 1734-UM001D-EN-P - April 2008
Configure POINT I/O Modules for DeviceNet Networks 217

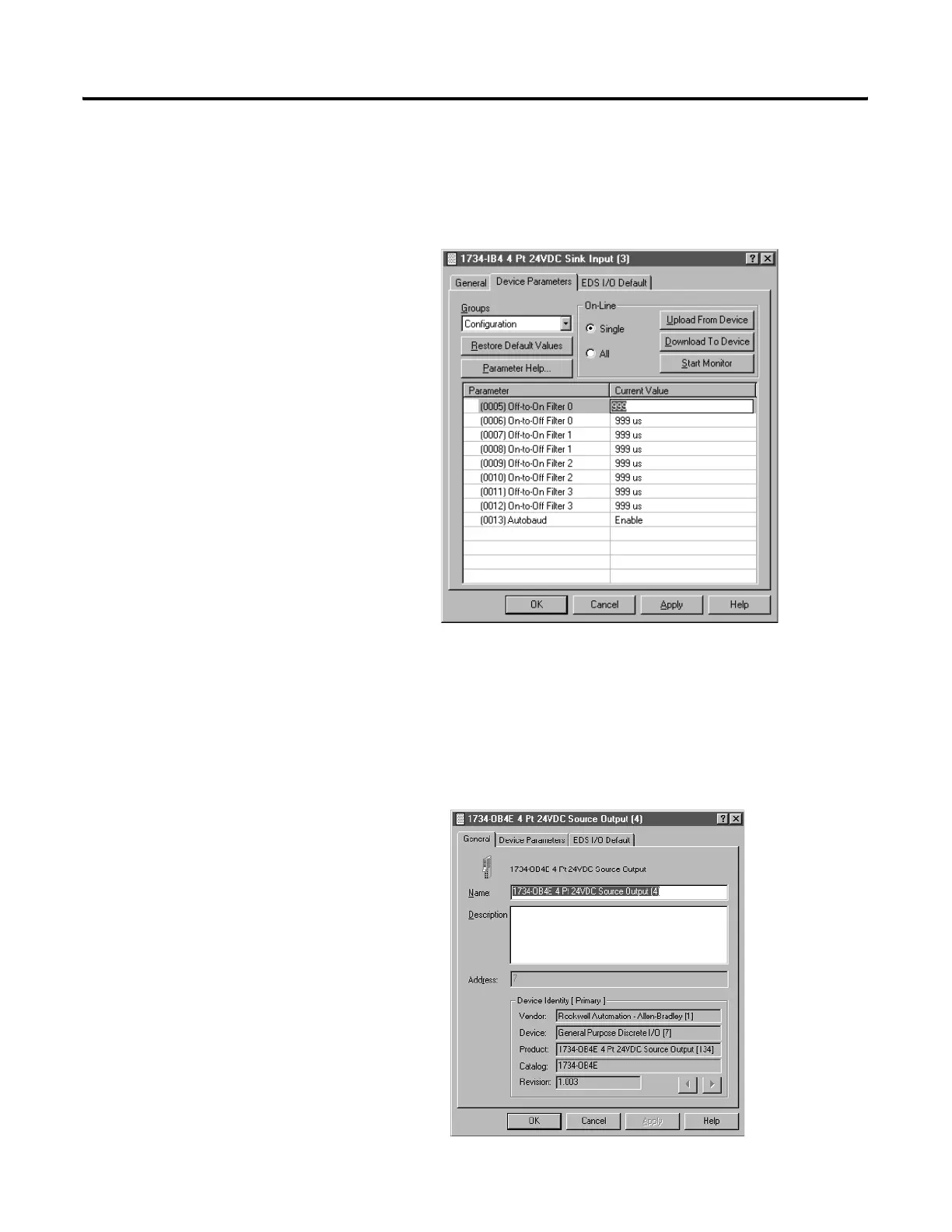

3. From the Device Parameters dialog, select the filter of your choice by
selecting and typing in the filter time, noting that each input channel can
have its own time selection.
4. From the Device Parameters dialog, click Download to Device.
Configure Output Modules
To configure output modules, follow this procedure. Output modules use
dialogs similar to the one for the 1734-OB4E output module used in this
procedure.
1. From the General Parameters dialog, click Device Parameters to get the
dialog for setting parameters.
