Rear Panel Features

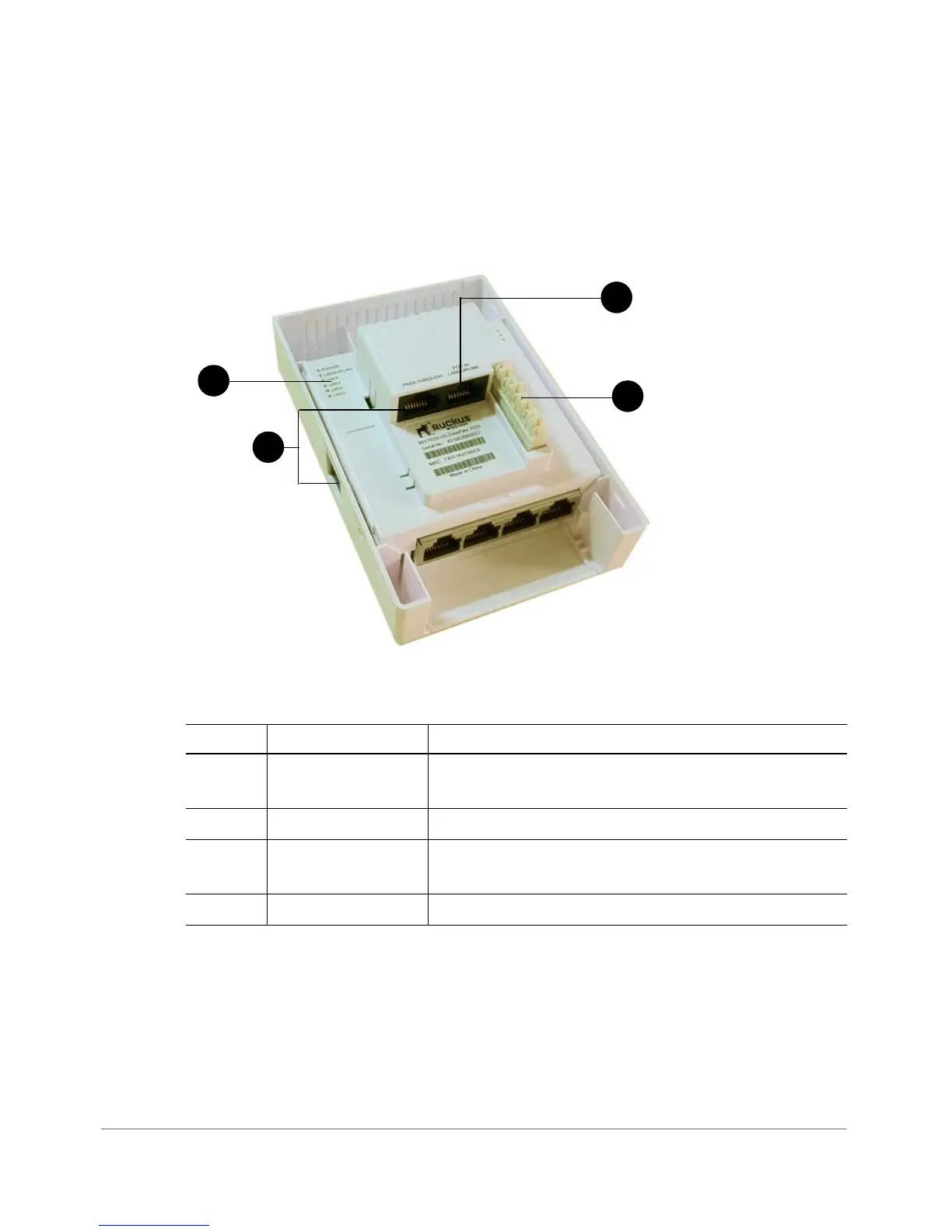

Figure 2 shows the rear panel of the ZF7025-US model. For a description of each
rear panel element, refer to Tab l e 4.
Figure 2. ZF7025-US rear panel
Table 4. ZF7025-US rear panel features
Number Name Description
1 PoE In LAN 5/Uplink Uplink LAN port that supports 802.3af and 802.3at
Power over Ethernet (PoE) input.
2 Punch down Block 110 punchdown block.
3 Pass Through Port RJ-45 pass through port for the pass through
connection.
4 LEDs See
Tab l e 7 for LED descriptions and behaviors.
