Introducing the ZoneFlex Access Point
Getting to Know the Access Point Features
ZoneFlex Indoor Access Point 9.8.1 User Guide, 800-70601-001 Rev C 17
ZF7025-EU Model
This section describes the physical features of the ZF7025-EU model, which is
designed to fit in a standard EU-style wall electrical outlet box. The outlet box must
conform to BS 4662, with a minimum depth of 35mm.
Front View Features

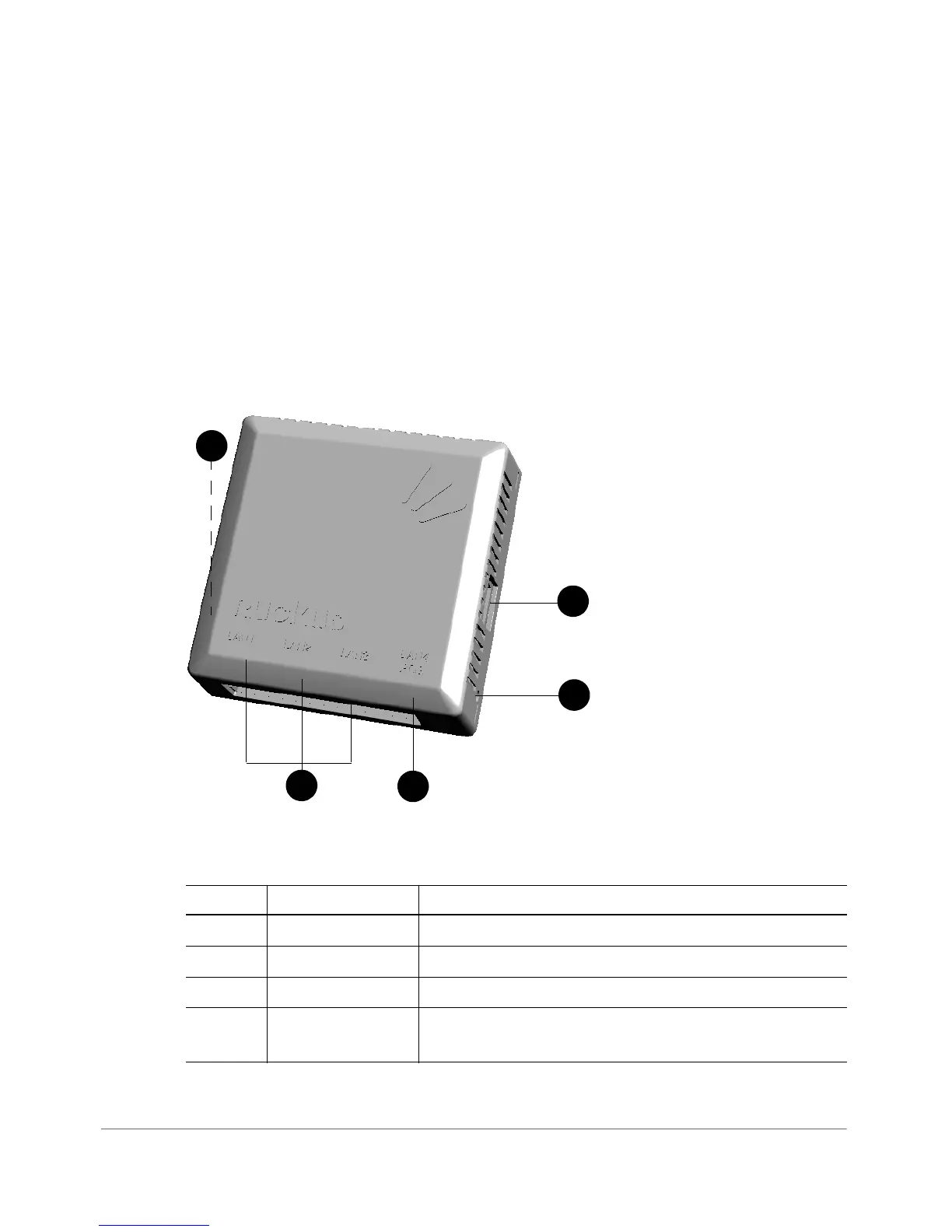

Figure 3 shows the front view of the ZF7025-EU model. For a description of each
front view element, refer to Ta ble 5 .
Figure 3. ZF7025-EU front view
Table 5. ZF7025-EU front view
Number Name Description
1 Pass Through port Pass through port.
2 Power Input Optional 48V DC power input.
3 LAN1-LAN3 Three 10/100 RJ-45 Ethernet Ports.
4 LAN4 One 10/100 RJ-45 LAN port with PoE out. Supports
802.3af PSE Class 0/2 (depending on power input).
