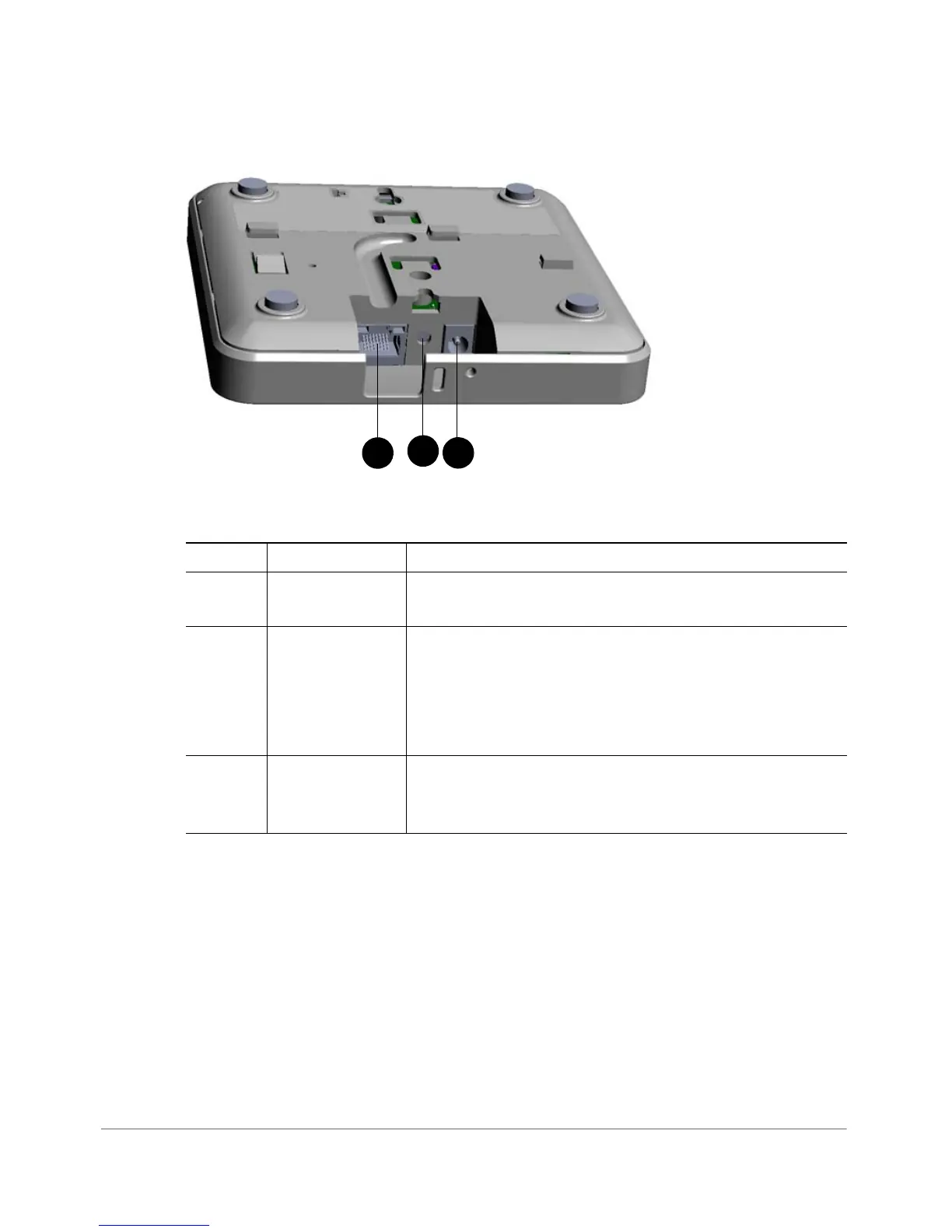

Figure 27. R300 rear panel
Table 32. R300 rear panel elements
Number Item Name Description
1 10/100/
1000+PoE Port
One RJ-45 port for a 10/100/1000 PoE (Power over
Ethernet, 802.3af) connection.
2 RST Button Pressing, and then quickly releasing this internal button
reboots the AP. Pressing and holding it for six seconds
resets the AP to factory default settings.
CAUTION! Resetting the AP to factory default settings
erases all previously configured settings.
3 Power Connect the power adapter (12 VDC/1.25A) to this
socket. Power can also be supplied via the 10/100/1000
PoE port.
