102 Operating Instructions Cubis
®
MCA
Technical Data
15.10 Data Storage Device
Value
Maximum number of data records 150000
15.11 Interfaces
15.11.1 Specifications of the COM-RS232 Interface
Type of interface Serial interface
Interface operation Full duplex
Level RS232
Connection D-sub connector, 9-pin

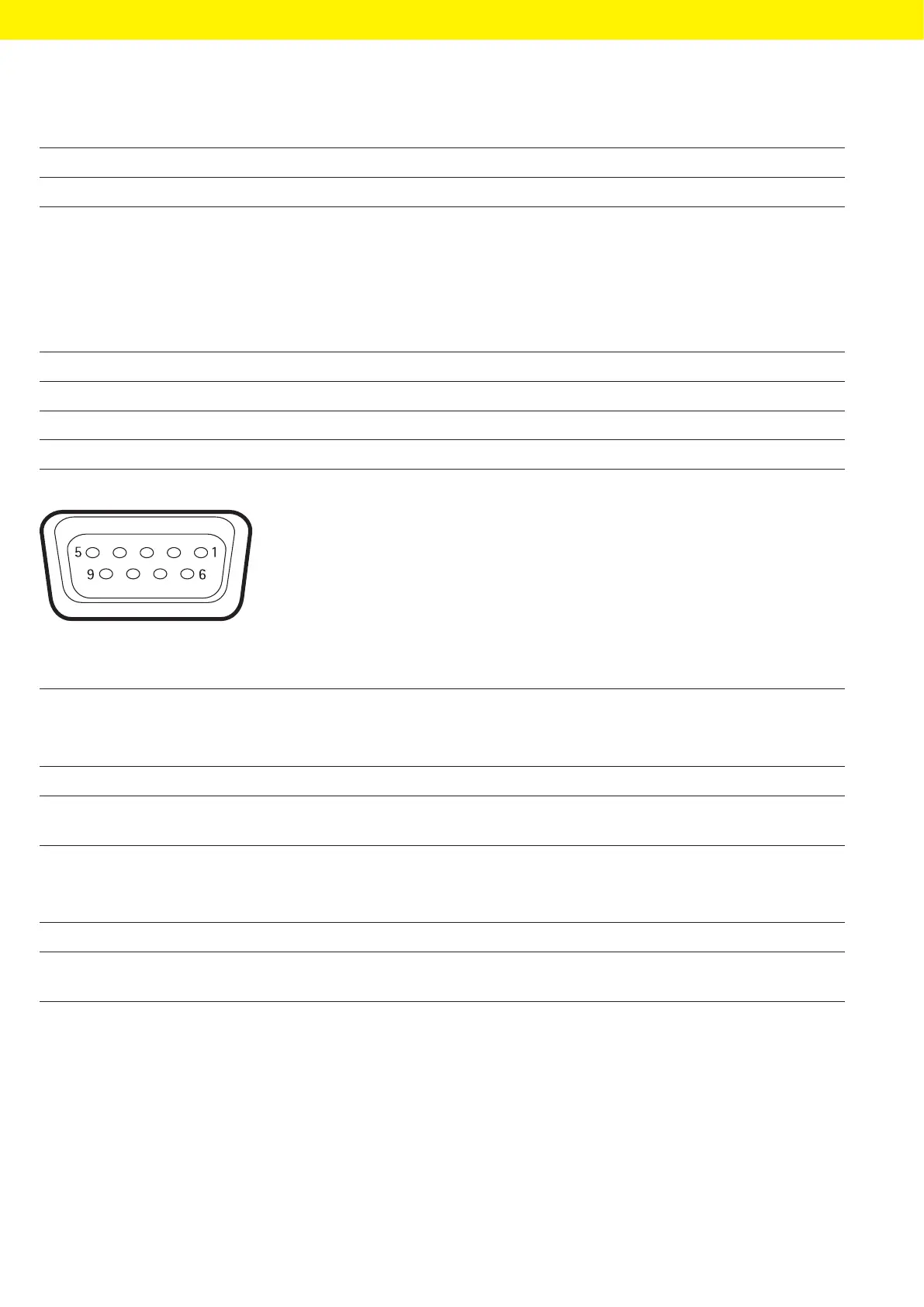

Pin assignment
Pin 1: Not assigned
Pin 2: Data output (TxD)
Pin 3: Data input (RxD)
Pin 4: Not assigned
Pin 5: Internal ground
Pin 6: Not assigned
Pin 7: Clear to Send (CTS)
Pin 8: Request to Send (RTS)
Pin 9: Not assigned
15.11.2 Specifications for the USB-A Interface
Communication USB host (master)
Connectable devices Sartorius printers, USB memory sticks, USB barcode
scanners, USB keyboards
15.11.3 Specifications for the USB-B Interface
Communication USB device (slave)
Type of interface Virtual serial interface (virtual COM-port, VCP)
and “PCdirect” communication
