Operating Instructions Cubis
®
MCA 47
Installation

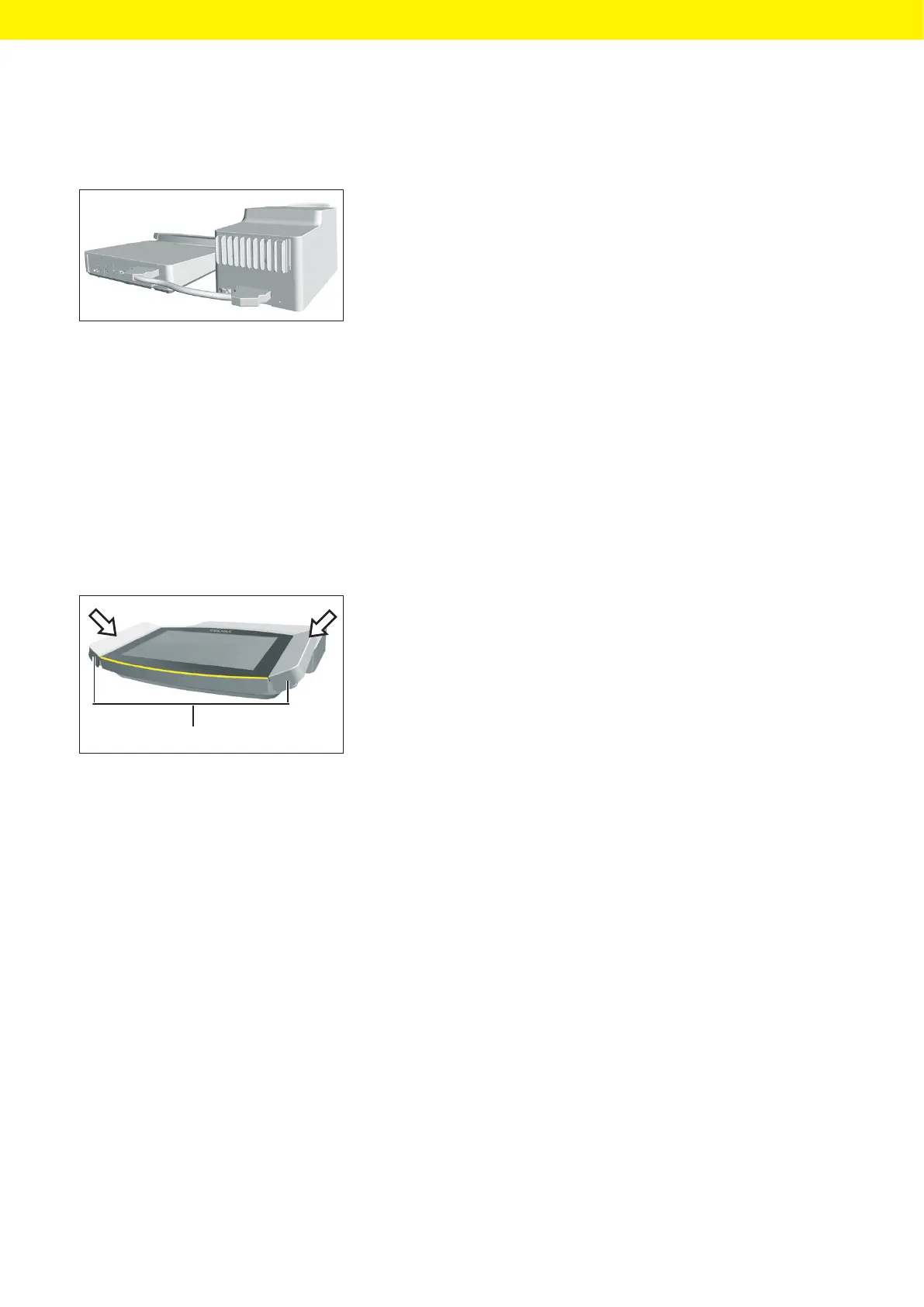

5.9 Connecting the Electronics Module
Procedure
t Connect the connection cable to the electronics module’s weighing
module connection.
t Connect the other end of the connection cable to the weighing
module’s electronics module connection.
t To lock the connection cable: Lock the plugs of the connection cable
onto both connections with two clicks in each case.
t NOTICE Damage to the device due to incorrect connection!
t Check the correct fit of the plug contacts.
t There should be no tension on the connection cable, e.g. do not
install directly against a wall.
5.10 Installing Palm-operable Keys (Only for
Devices with Motorized Draft Shield)
For models with a motorized draft shield, 2 palm-operable keys can
beinstalled.
Procedure
t Affix both palm-operable keys (1) onto the side of the display and
controlunit.
5.11 Acclimatizing
When a cold device is brought into a warmer area: The temperature
difference can lead to condensation of humidity in the device (moisture
formation). Moisture in the device can lead to malfunctions.
t Allow the device to acclimatize for approx. 2 hours at the installation site.
Ensure that the device is disconnected from the power supply during
that time.
1
