8.4 Opening and Closing the Motorized Draft
Shield (Only for Devices with a Motorized
Draft Shield)

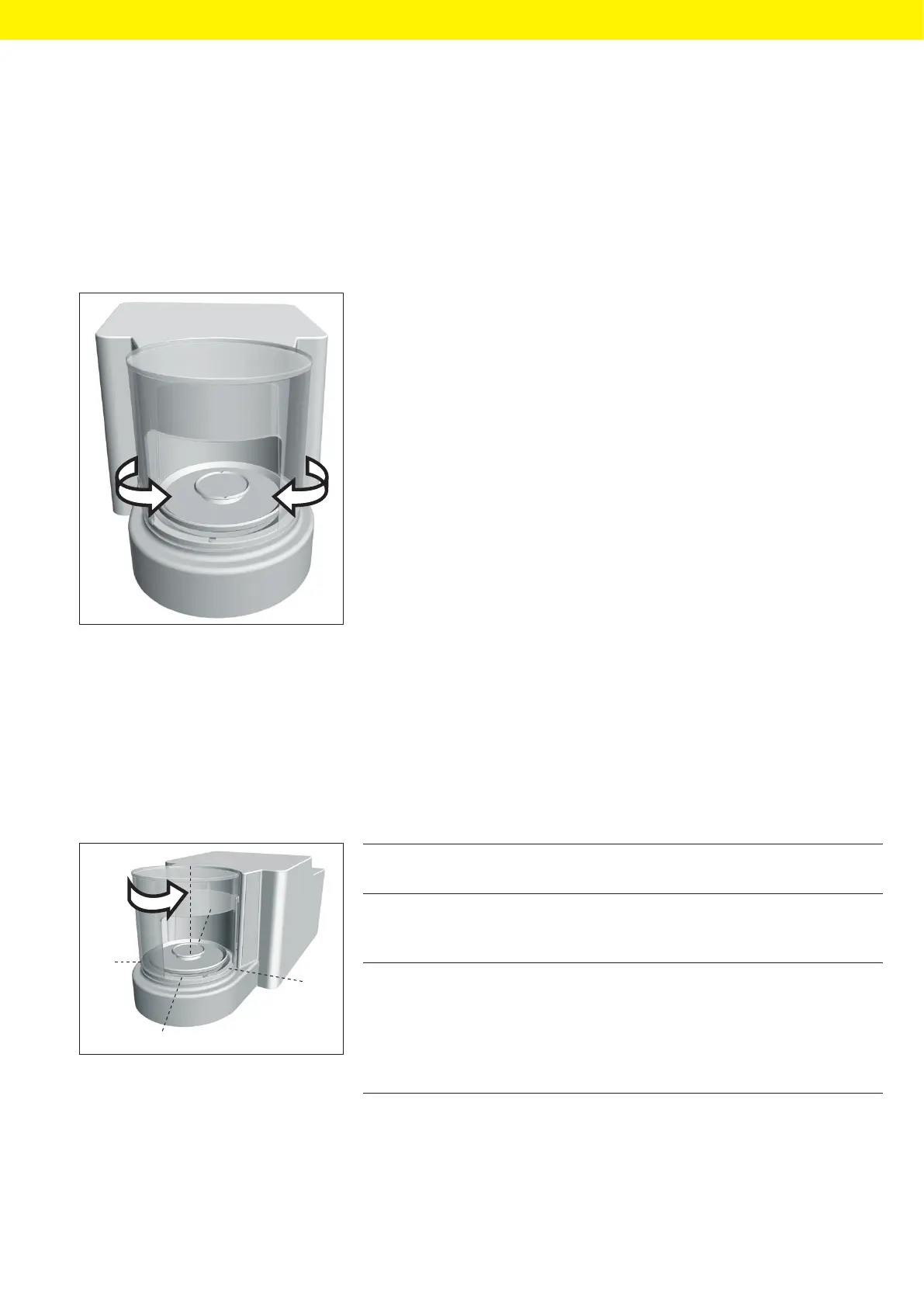

Pressing the palm-operated key or using gestures enables the motorized
draft shield to be opened and closed.
Procedure
t Press a palm-operated key or move your hand to the side of the
draftshield.
y The draft shield is opened or closed.
8.4.1 Defining the Opening Width
It can be determined how far the draft shield should open when pressing
the palm-operated key. The opening width of the draft shield can
bedetermined separately for each of the two palm-operated keys
(ifselected in the menu).
Procedure
Same function
(one opening angle)
Separate Function
(2 opening angles)
Defining the
opening width
Select the required
opening position
manually
–
Pressing the
palm-operat-
ed keys
1) Open in line with
the opening position
set previously
2) Close
1) Left palm-operated key:
Opens 260° clockwise
Right palm-operated key:
Opens 100°
counterclockwise
2) Close
y The next time a palm-operated key is pressed: The draft shield is opened
or closed until it reaches the required position.
100°
180°
0°
260°
