44 Operating Instructions Cubis
®
MCA
Installation
5.6 Procedure

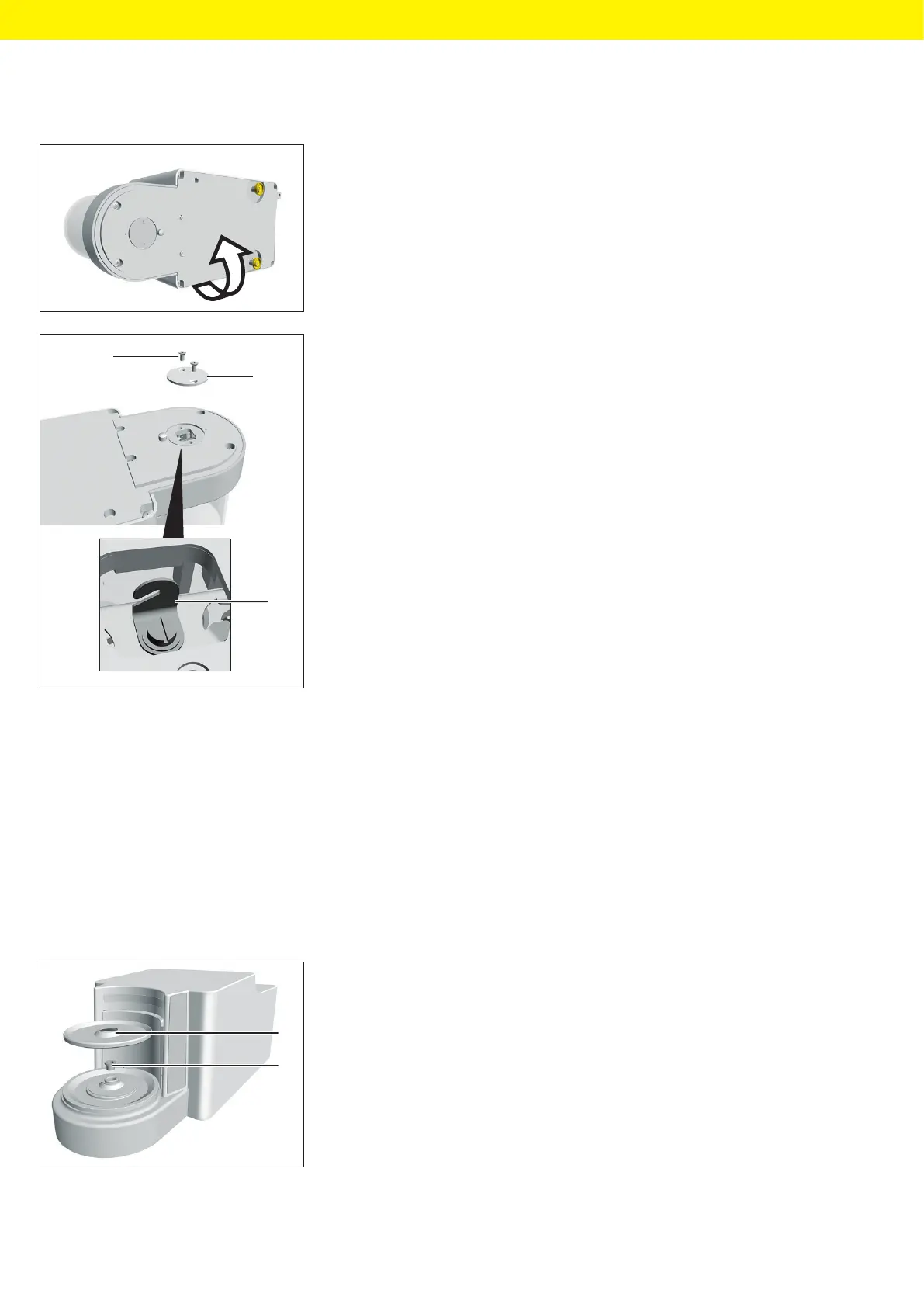

t Turn the device on its side and place it on the soft support base.
t Unscrew both screws (2) from beneath the weighing module with
theTorx Allen key.
t Lift out the cover plate (1).
t Install a draft protection shield.
t Set up the device on the weighing table with recess. The hook for below-
balance weighing (3) may not touch the weighing table.
t Install the draft protection shield.
5.7 Installing a Microbalance with
GlassDraftShield
5.7.1 Positioning the Weighing Pan and
Associated Components
Procedure
t For a device with a connector: Place the connector (2) on the base of the
weighing chamber.
t Place the shield plate (1) on the base of the weighing chamber.
2
1
3
1
2
1
2
