Operating Instructions Cubis
®
MCA 45
Installation

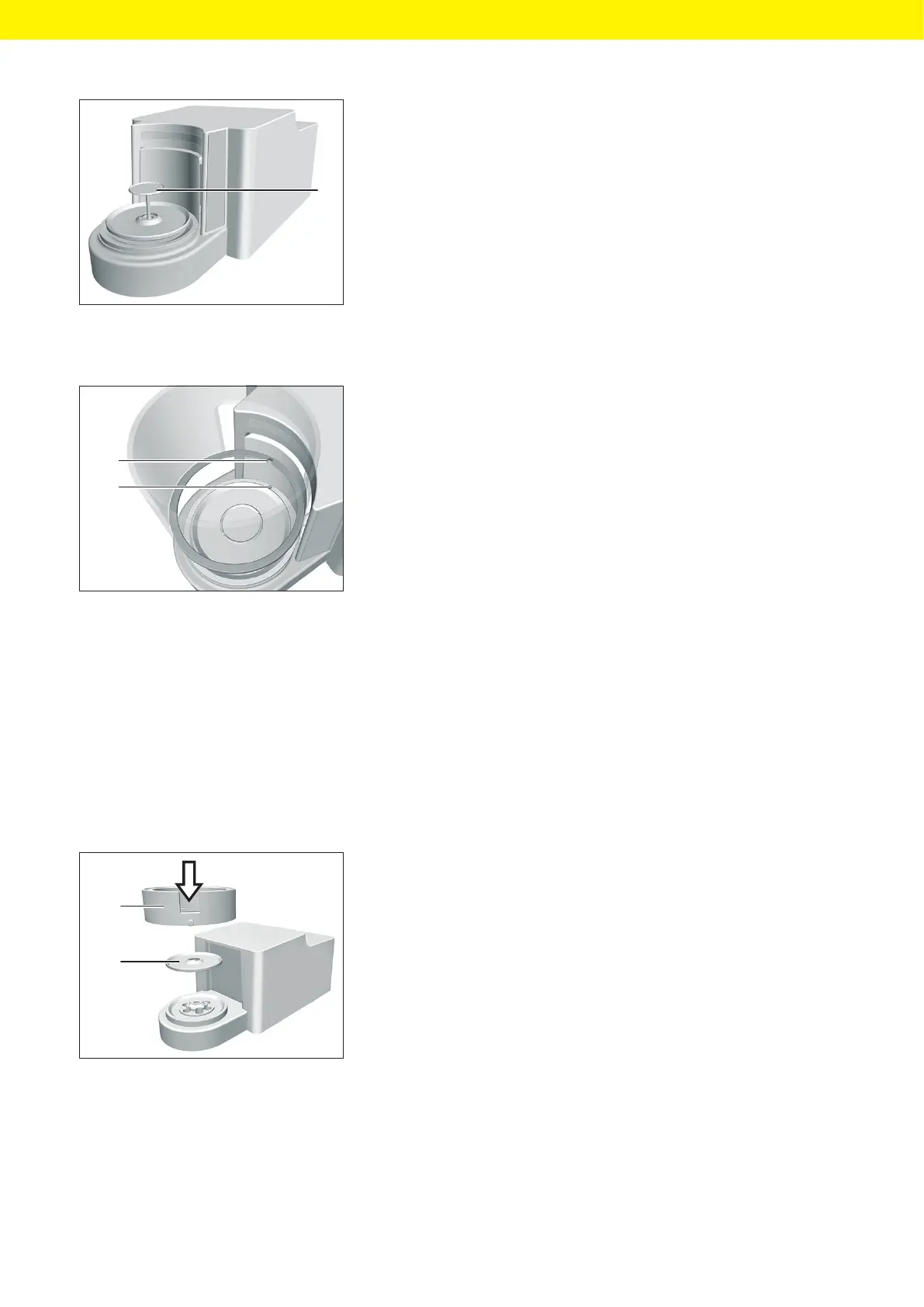

t Place the weighing pan (1) through the opening in the base of the
weighing chamber into the pan retainer.
t To mount the weighing pan: Turn the weighing pan slightly while pressing
down lightly.
t For devices with an internal draft shield: Place the internal draft shield
ona shield plate.
t Center and insert glass draft shield with recess (1) above the snap-in
peg(2).
5.8 Installing a Filter Balance with a Metal Ring
Draft Shield
5.8.1 Positioning the Weighing Pan and Associated
Components
Procedure
t For a device with a connector: Place the connector on the base of the
weighing chamber.
t Place the shield plate (2) on the base of the weighing chamber.
t Place the metal ring draft shield (1) on the base of the weighing chamber.
The inner metal ring of the draft shield must be inserted into the outer
metal ring.
1
1
2
1
2
