3.7 Safety Equipment
3.7.1 Protective Caps on the Electronics Module
1 2 3 4
5

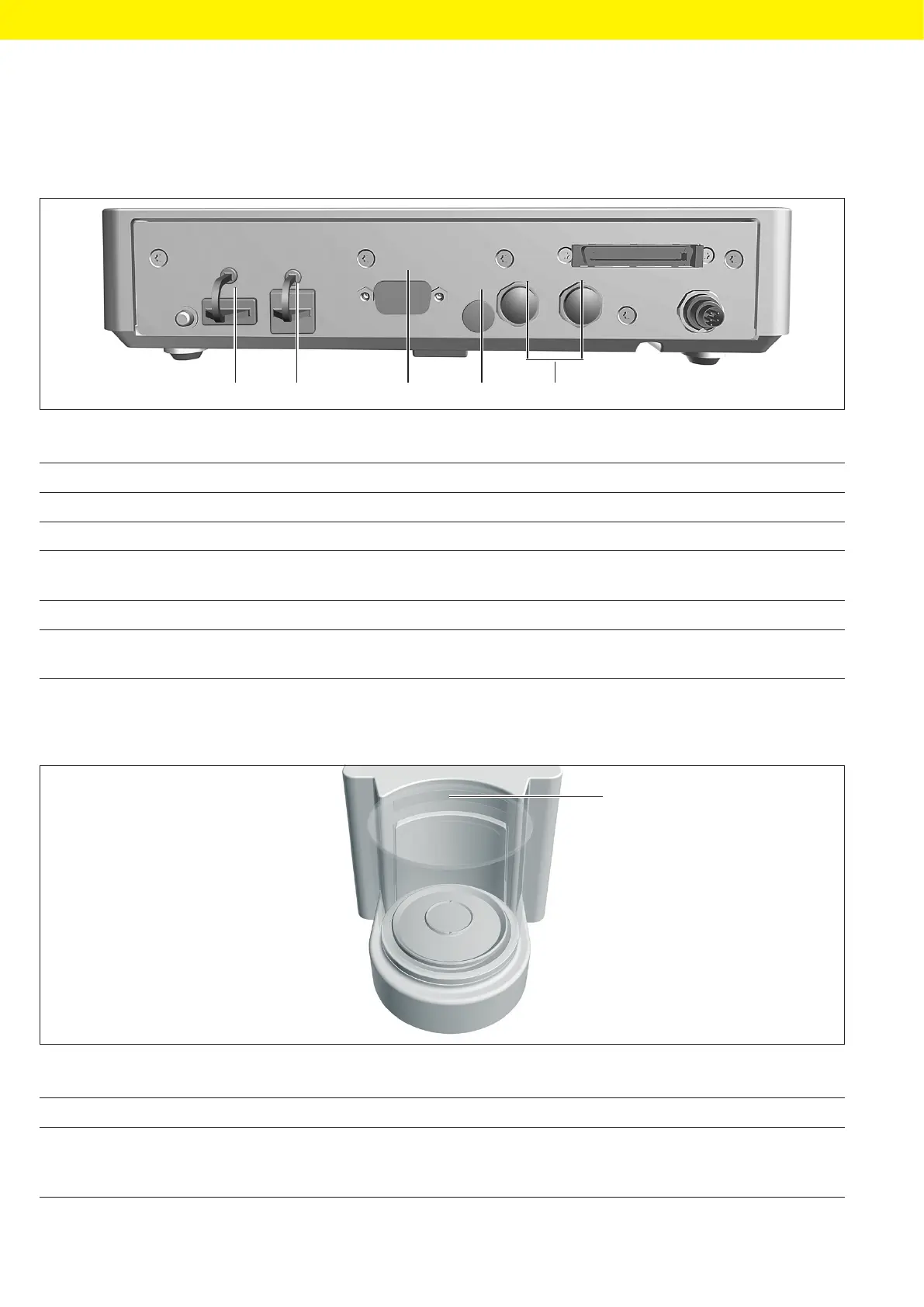

Fig. 7: Protective caps on the electronics module
Pos. Name Description
1 Protective cap for USB-A connection Plastic attachment hood, fastened to the device.
2 Protective cap for USB-B connection Plastic attachment hood, fastened to the device.
3 Protective cap for
COM-RS232 connection
Removable plastic sealing cap.
4 Protective cap for access switch Removable plastic sealing cap.
5 Protective caps for peripheral
connections
Removable plastic sealing caps.
3.8 Displays on the Weighing Module
1
Fig. 8: Displays on the weighing module (example)
Pos. Name Description
1 LED strip Used for lighting of weighing chamber. The intensity of the lighting can be adjusted
inthe menu. When the control unit displays an error message: The LED strip is
illuminated in orange.
