14 Operating Instructions Cubis
®
MCA
Device Description
3.3 Weighing Pan and Associated Components
1
6
5
2
3
4
2
3
4

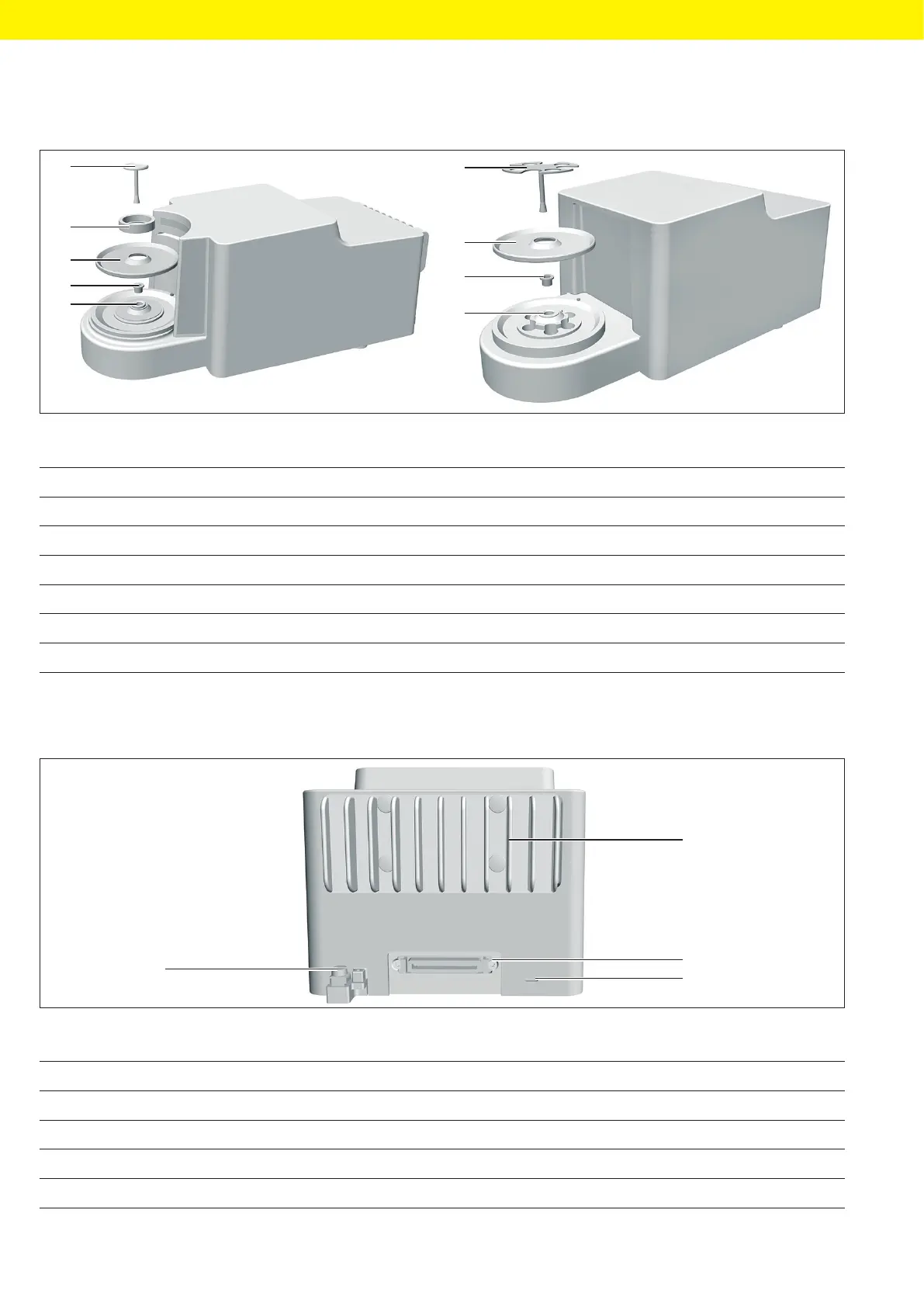

Fig. 3: Microbalance with motorized glass draft shield and filter microbalance with manual metal ring draft shield (example)
Pos. Name Description
1 Filter weighing pan
2 Shield plate
3 Connector For models MCA2.7S... only
4 Pan retainer
5 Internal draft shield For models MCA2.7S...M only
6 Weighing pan
3.4 Connections and Components on the Backside of the WeighingModule
4
1
2
3
Fig. 4: Connections on the weighing module of the microbalance (example)
Pos. Name Description
1 Cooling fins For models MCA2.7S... only
2 Electronics module connection For connecting the electronics module to the weighing module
3 Slot For attaching a “Kensington” anti-theft device
4 Connection clamp For connection of a potential equalization
