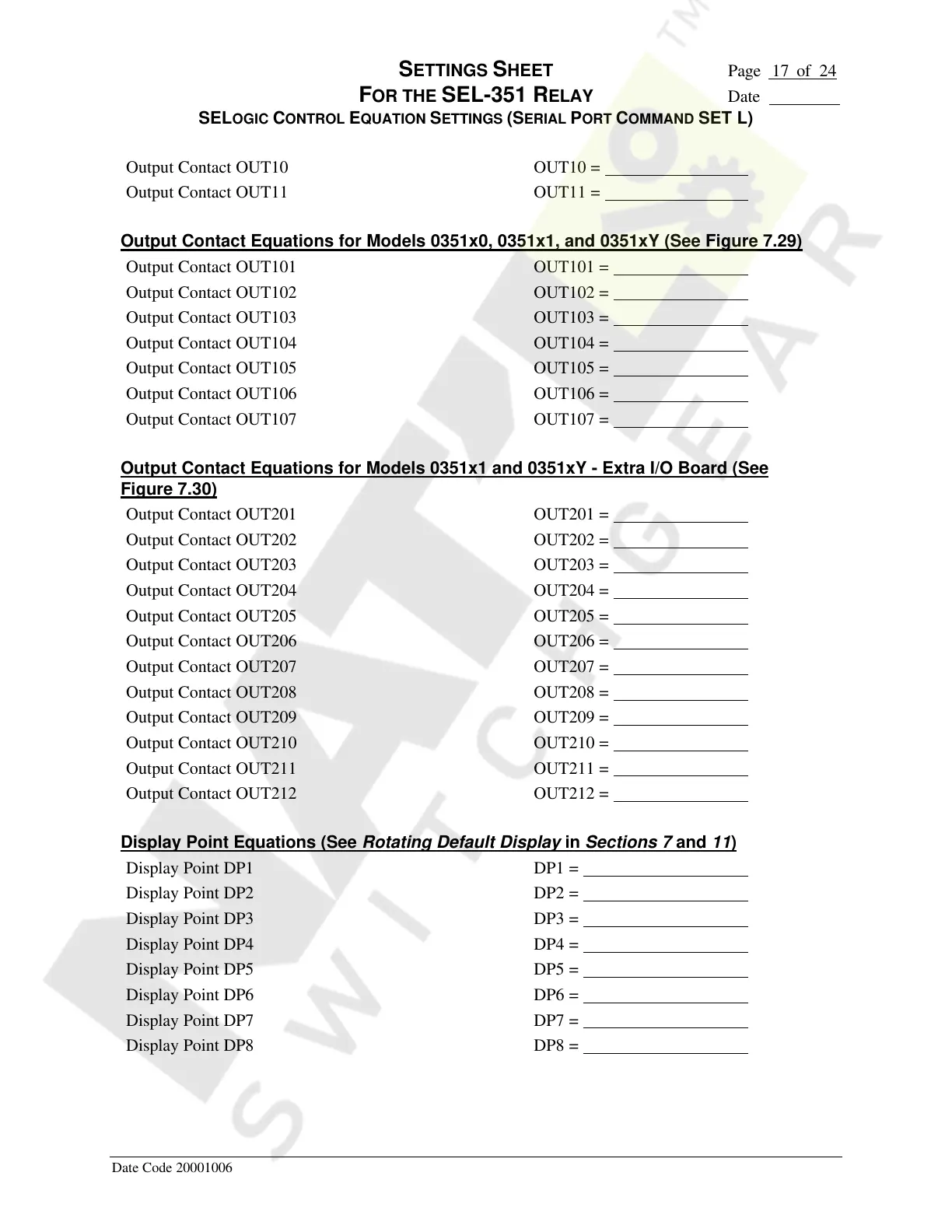

SETTINGS SHEET Page 17 of 24
FOR THE SEL-351 RELAY Date
SELOGIC CONTROL EQUATION SETTINGS (SERIAL PORT COMMAND SET L)
Date Code 20001006
Output Contact OUT10 OUT10 =
Output Contact OUT11 OUT11 =
Output Contact Equations for Models 0351x0, 0351x1, and 0351xY (See Figure 7.29)
Output Contact OUT101 OUT101 =
Output Contact OUT102 OUT102 =
Output Contact OUT103 OUT103 =
Output Contact OUT104 OUT104 =
Output Contact OUT105 OUT105 =
Output Contact OUT106 OUT106 =
Output Contact OUT107 OUT107 =
Output Contact Equations for Models 0351x1 and 0351xY - Extra I/O Board (See
Figure 7.30)
Output Contact OUT201 OUT201 =
Output Contact OUT202 OUT202 =
Output Contact OUT203 OUT203 =
Output Contact OUT204 OUT204 =
Output Contact OUT205 OUT205 =
Output Contact OUT206 OUT206 =
Output Contact OUT207 OUT207 =
Output Contact OUT208 OUT208 =
Output Contact OUT209 OUT209 =
Output Contact OUT210 OUT210 =
Output Contact OUT211 OUT211 =
Output Contact OUT212 OUT212 =
Display Point Equations (See Rotating Default Display in Sections 7 and 11)
Display Point DP1 DP1 =
Display Point DP2 DP2 =
Display Point DP3 DP3 =
Display Point DP4 DP4 =
Display Point DP5 DP5 =
Display Point DP6 DP6 =
Display Point DP7 DP7 =
Display Point DP8 DP8 =
