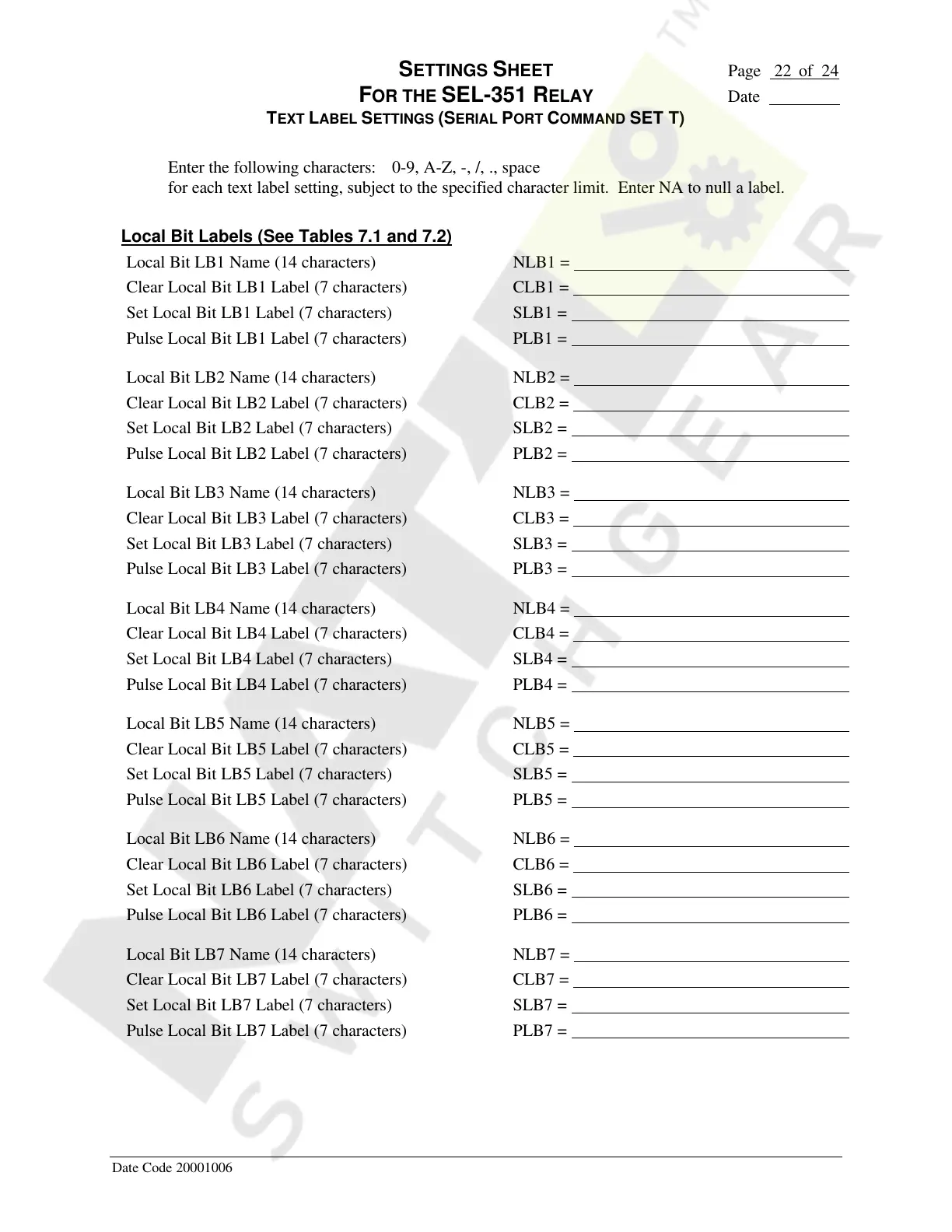

Schweitzer Engineering Laboratories SEL-351 - Page 402

SETTINGS SHEET Page 22 of 24
FOR THE SEL-351 RELAY Date
TEXT LABEL SETTINGS (SERIAL PORT COMMAND SET T)
Date Code 20001006
Enter the following characters: 0-9, A-Z, -, /, ., space
for each text label setting, subject to the specified character limit. Enter NA to null a label.
Local Bit Labels (See Tables 7.1 and 7.2)
Local Bit LB1 Name (14 characters) NLB1 =
Clear Local Bit LB1 Label (7 characters) CLB1 =
Set Local Bit LB1 Label (7 characters) SLB1 =
Pulse Local Bit LB1 Label (7 characters) PLB1 =
Local Bit LB2 Name (14 characters) NLB2 =
Clear Local Bit LB2 Label (7 characters) CLB2 =
Set Local Bit LB2 Label (7 characters) SLB2 =
Pulse Local Bit LB2 Label (7 characters) PLB2 =
Local Bit LB3 Name (14 characters) NLB3 =
Clear Local Bit LB3 Label (7 characters) CLB3 =
Set Local Bit LB3 Label (7 characters) SLB3 =
Pulse Local Bit LB3 Label (7 characters) PLB3 =
Local Bit LB4 Name (14 characters) NLB4 =
Clear Local Bit LB4 Label (7 characters) CLB4 =
Set Local Bit LB4 Label (7 characters) SLB4 =
Pulse Local Bit LB4 Label (7 characters) PLB4 =
Local Bit LB5 Name (14 characters) NLB5 =
Clear Local Bit LB5 Label (7 characters) CLB5 =
Set Local Bit LB5 Label (7 characters) SLB5 =
Pulse Local Bit LB5 Label (7 characters) PLB5 =
Local Bit LB6 Name (14 characters) NLB6 =
Clear Local Bit LB6 Label (7 characters) CLB6 =
Set Local Bit LB6 Label (7 characters) SLB6 =
Pulse Local Bit LB6 Label (7 characters) PLB6 =
Local Bit LB7 Name (14 characters) NLB7 =
Clear Local Bit LB7 Label (7 characters) CLB7 =
Set Local Bit LB7 Label (7 characters) SLB7 =
Pulse Local Bit LB7 Label (7 characters) PLB7 =
