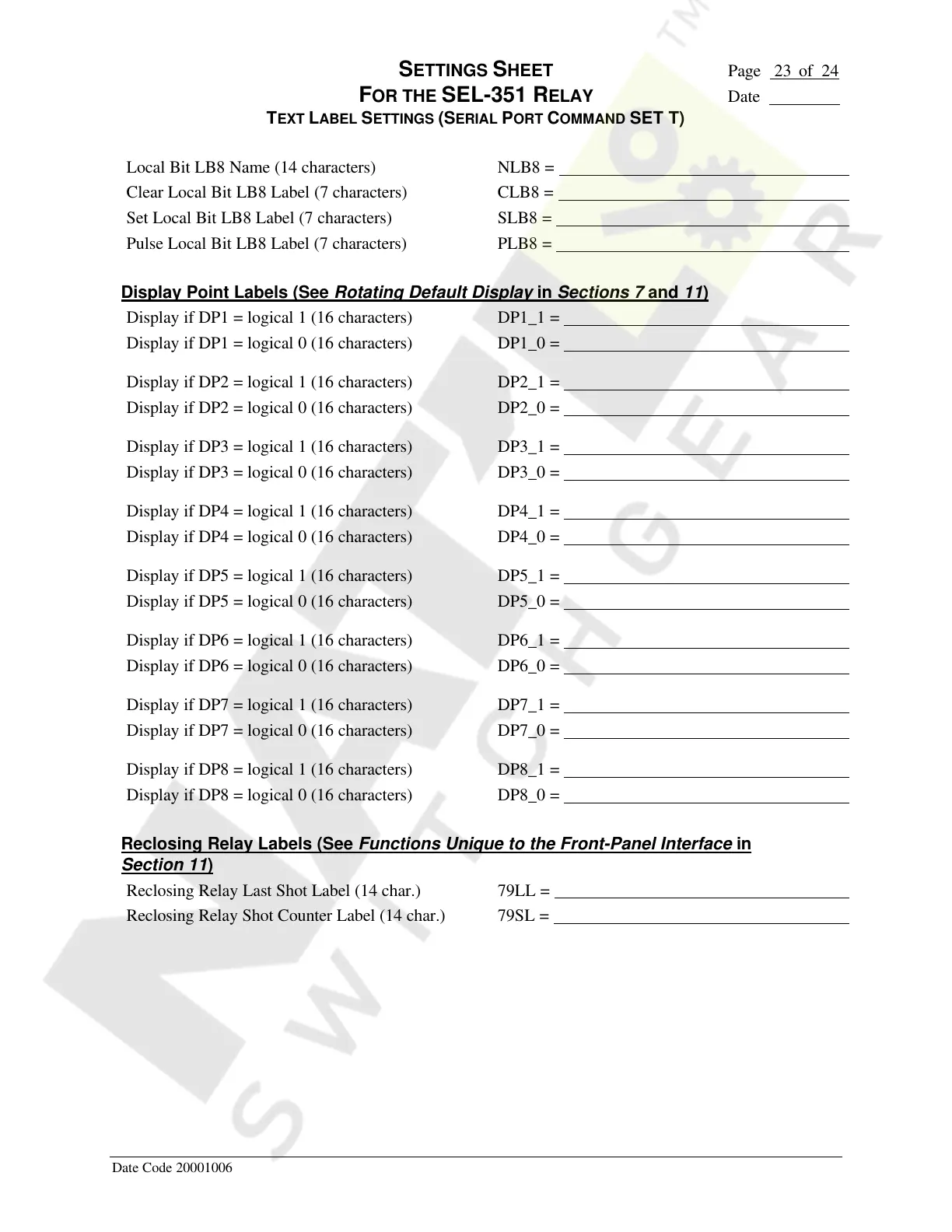

SETTINGS SHEET Page 23 of 24
FOR THE SEL-351 RELAY Date
TEXT LABEL SETTINGS (SERIAL PORT COMMAND SET T)
Date Code 20001006
Local Bit LB8 Name (14 characters) NLB8 =
Clear Local Bit LB8 Label (7 characters) CLB8 =
Set Local Bit LB8 Label (7 characters) SLB8 =
Pulse Local Bit LB8 Label (7 characters) PLB8 =
Display Point Labels (See Rotating Default Display in Sections 7 and 11)
Display if DP1 = logical 1 (16 characters) DP1_1 =
Display if DP1 = logical 0 (16 characters) DP1_0 =
Display if DP2 = logical 1 (16 characters) DP2_1 =
Display if DP2 = logical 0 (16 characters) DP2_0 =
Display if DP3 = logical 1 (16 characters) DP3_1 =
Display if DP3 = logical 0 (16 characters) DP3_0 =
Display if DP4 = logical 1 (16 characters) DP4_1 =
Display if DP4 = logical 0 (16 characters) DP4_0 =
Display if DP5 = logical 1 (16 characters) DP5_1 =
Display if DP5 = logical 0 (16 characters) DP5_0 =
Display if DP6 = logical 1 (16 characters) DP6_1 =
Display if DP6 = logical 0 (16 characters) DP6_0 =
Display if DP7 = logical 1 (16 characters) DP7_1 =
Display if DP7 = logical 0 (16 characters) DP7_0 =
Display if DP8 = logical 1 (16 characters) DP8_1 =
Display if DP8 = logical 0 (16 characters) DP8_0 =
Reclosing Relay Labels (See Functions Unique to the Front-Panel Interface in
Section 11)
Reclosing Relay Last Shot Label (14 char.) 79LL =
Reclosing Relay Shot Counter Label (14 char.) 79SL =
