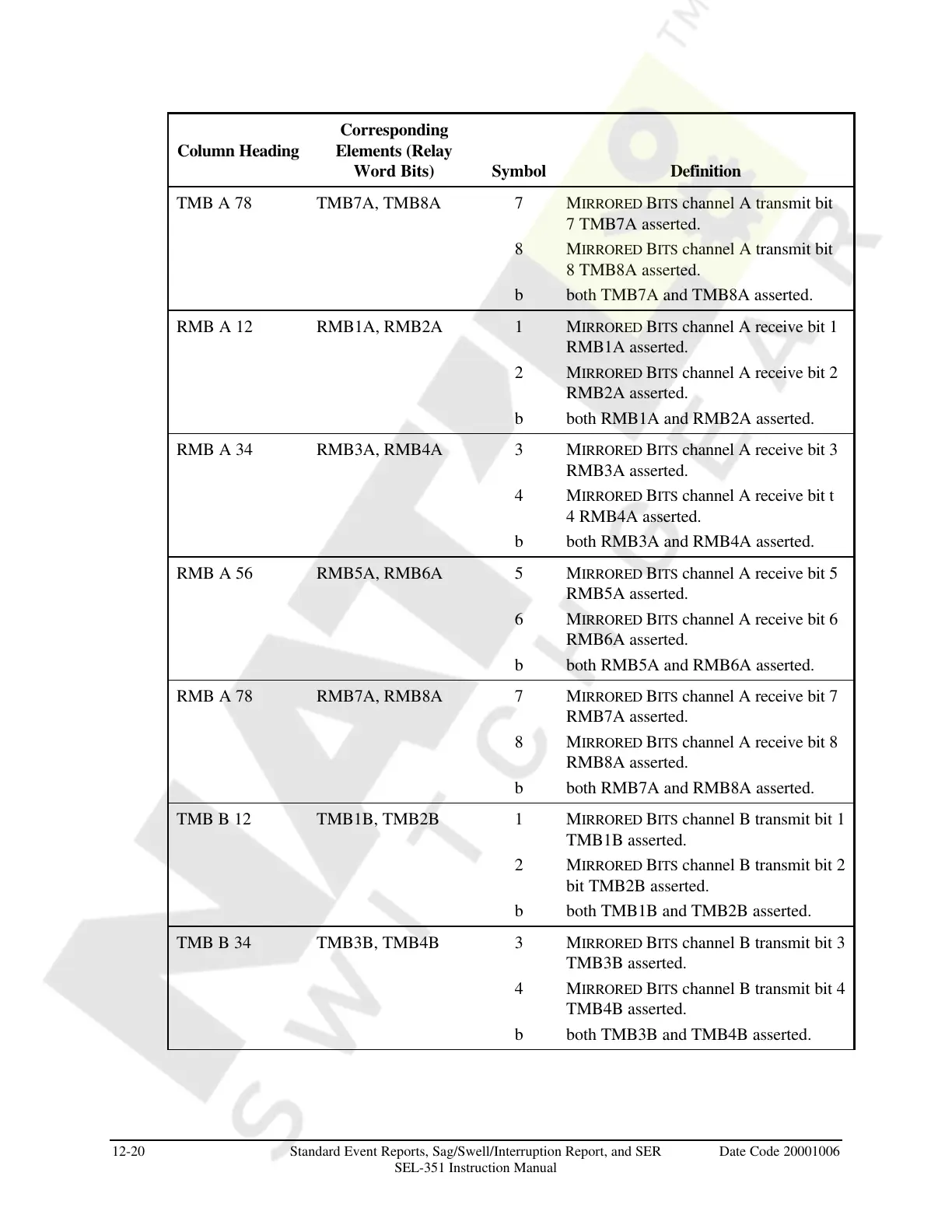

12-20 Standard Event Reports, Sag/Swell/Interruption Report, and SER Date Code 20001006
SEL-351 Instruction Manual
Column Heading
Corresponding
Elements (Relay
Word Bits) Symbol Definition
TMB A 78 TMB7A, TMB8A 7 MIRRORED BITS channel A transmit bit
7 TMB7A asserted.
8 MIRRORED BITS channel A transmit bit
8 TMB8A asserted.
b both TMB7A and TMB8A asserted.
RMB A 12 RMB1A, RMB2A 1 MIRRORED BITS channel A receive bit 1
RMB1A asserted.
2 MIRRORED BITS channel A receive bit 2
RMB2A asserted.
b both RMB1A and RMB2A asserted.
RMB A 34 RMB3A, RMB4A 3 MIRRORED BITS channel A receive bit 3
RMB3A asserted.
4 MIRRORED BITS channel A receive bit t
4 RMB4A asserted.
b both RMB3A and RMB4A asserted.
RMB A 56 RMB5A, RMB6A 5 MIRRORED BITS channel A receive bit 5
RMB5A asserted.
6 MIRRORED BITS channel A receive bit 6
RMB6A asserted.
b both RMB5A and RMB6A asserted.
RMB A 78 RMB7A, RMB8A 7 MIRRORED BITS channel A receive bit 7
RMB7A asserted.
8 MIRRORED BITS channel A receive bit 8
RMB8A asserted.
b both RMB7A and RMB8A asserted.
TMB B 12 TMB1B, TMB2B 1 MIRRORED BITS channel B transmit bit 1
TMB1B asserted.
2 MIRRORED BITS channel B transmit bit 2
bit TMB2B asserted.
b both TMB1B and TMB2B asserted.
TMB B 34 TMB3B, TMB4B 3 MIRRORED BITS channel B transmit bit 3
TMB3B asserted.
4 MIRRORED BITS channel B transmit bit 4
TMB4B asserted.
b both TMB3B and TMB4B asserted.
