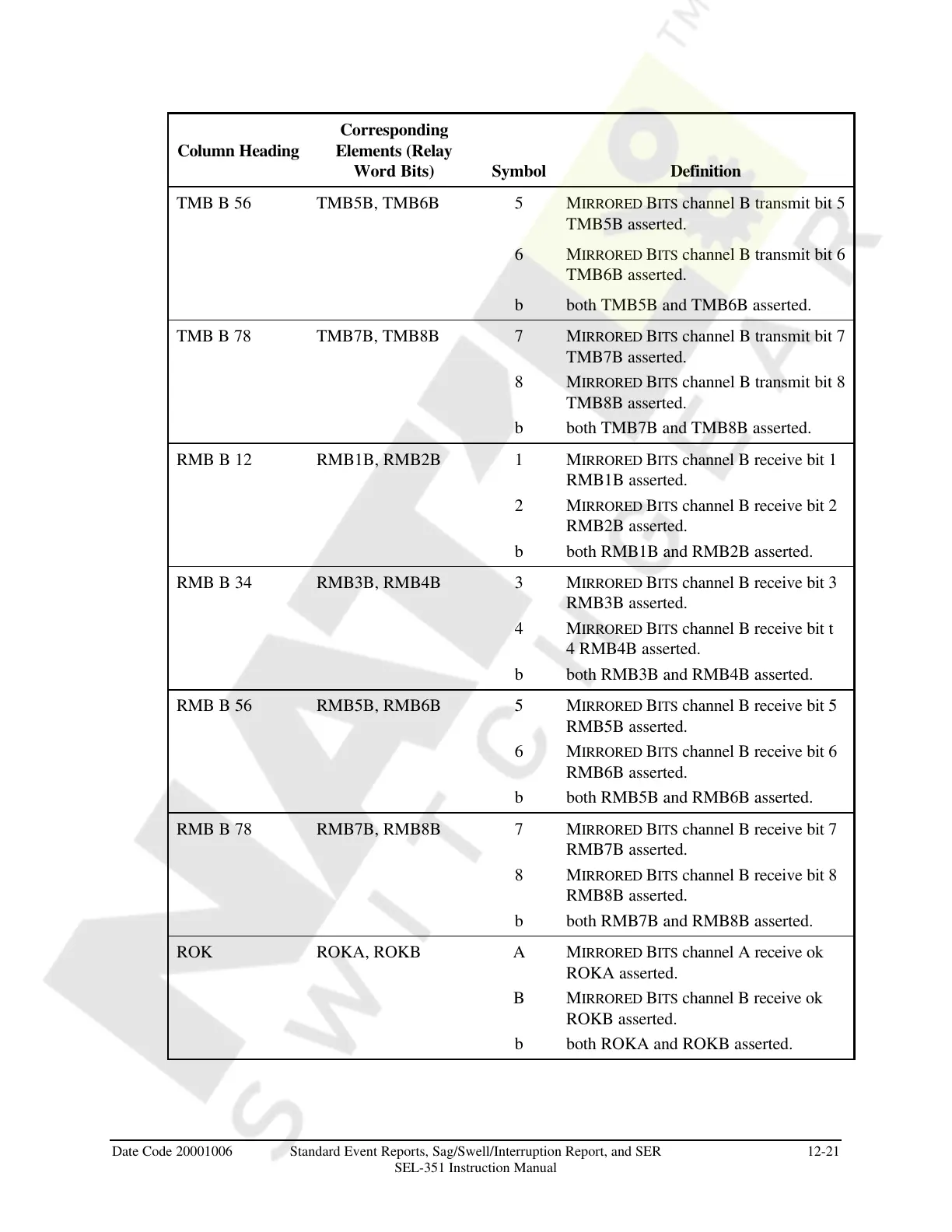

Date Code 20001006 Standard Event Reports, Sag/Swell/Interruption Report, and SER
SEL-351 Instruction Manual
12-21
Column Heading
Corresponding
Elements (Relay
Word Bits) Symbol Definition
TMB B 56 TMB5B, TMB6B 5 MIRRORED BITS channel B transmit bit 5
TMB5B asserted.
6 MIRRORED BITS channel B transmit bit 6
TMB6B asserted.
b both TMB5B and TMB6B asserted.
TMB B 78 TMB7B, TMB8B 7 MIRRORED BITS channel B transmit bit 7
TMB7B asserted.
8 MIRRORED BITS channel B transmit bit 8
TMB8B asserted.
b both TMB7B and TMB8B asserted.
RMB B 12 RMB1B, RMB2B 1 MIRRORED BITS channel B receive bit 1
RMB1B asserted.
2 MIRRORED BITS channel B receive bit 2
RMB2B asserted.
b both RMB1B and RMB2B asserted.
RMB B 34 RMB3B, RMB4B 3 MIRRORED BITS channel B receive bit 3
RMB3B asserted.
4 MIRRORED BITS channel B receive bit t
4 RMB4B asserted.
b both RMB3B and RMB4B asserted.
RMB B 56 RMB5B, RMB6B 5 MIRRORED BITS channel B receive bit 5
RMB5B asserted.
6 MIRRORED BITS channel B receive bit 6
RMB6B asserted.
b both RMB5B and RMB6B asserted.
RMB B 78 RMB7B, RMB8B 7 MIRRORED BITS channel B receive bit 7
RMB7B asserted.
8 MIRRORED BITS channel B receive bit 8
RMB8B asserted.
b both RMB7B and RMB8B asserted.
ROK ROKA, ROKB A MIRRORED BITS channel A receive ok
ROKA asserted.
B MIRRORED BITS channel B receive ok
ROKB asserted.
b both ROKA and ROKB asserted.
