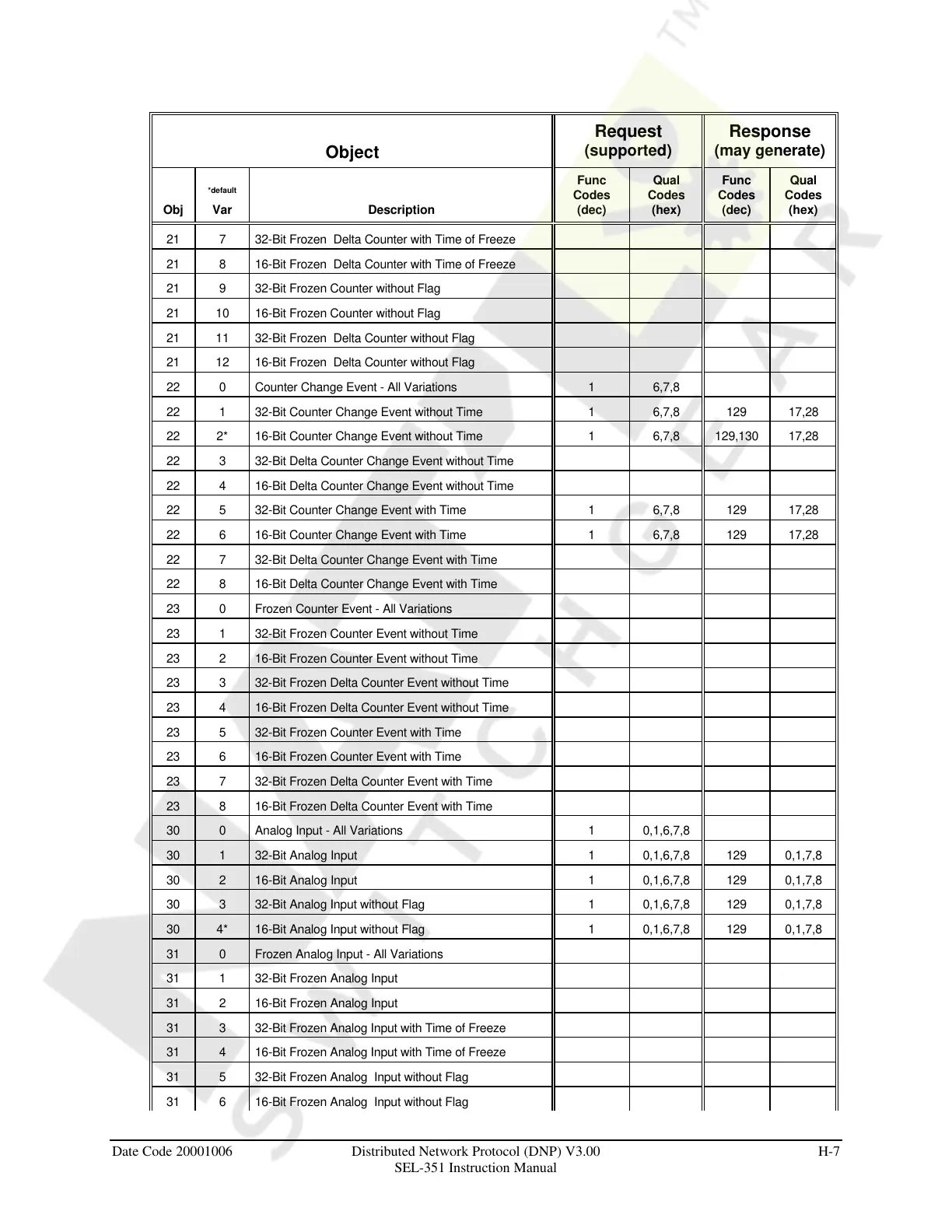

Date Code 20001006 Distributed Network Protocol (DNP) V3.00 H-7
SEL-351 Instruction Manual
Object
Request
(supported)
Response
(may generate)
Obj
*default
Var Description
Func
Codes
(dec)
Qual
Codes
(hex)
Func
Codes
(dec)
Qual
Codes
(hex)
21 7 32-Bit Frozen Delta Counter with Time of Freeze
21 8 16-Bit Frozen Delta Counter with Time of Freeze
21 9 32-Bit Frozen Counter without Flag
21 10 16-Bit Frozen Counter without Flag
21 11 32-Bit Frozen Delta Counter without Flag
21 12 16-Bit Frozen Delta Counter without Flag
22 0 Counter Change Event - All Variations 1 6,7,8
22 1 32-Bit Counter Change Event without Time 1 6,7,8 129 17,28
22 2* 16-Bit Counter Change Event without Time 1 6,7,8 129,130 17,28
22 3 32-Bit Delta Counter Change Event without Time
22 4 16-Bit Delta Counter Change Event without Time
22 5 32-Bit Counter Change Event with Time 1 6,7,8 129 17,28
22 6 16-Bit Counter Change Event with Time 1 6,7,8 129 17,28
22 7 32-Bit Delta Counter Change Event with Time
22 8 16-Bit Delta Counter Change Event with Time
23 0 Frozen Counter Event - All Variations
23 1 32-Bit Frozen Counter Event without Time
23 2 16-Bit Frozen Counter Event without Time
23 3 32-Bit Frozen Delta Counter Event without Time
23 4 16-Bit Frozen Delta Counter Event without Time
23 5 32-Bit Frozen Counter Event with Time
23 6 16-Bit Frozen Counter Event with Time
23 7 32-Bit Frozen Delta Counter Event with Time
23 8 16-Bit Frozen Delta Counter Event with Time
30 0 Analog Input - All Variations 1 0,1,6,7,8
30 1 32-Bit Analog Input 1 0,1,6,7,8 129 0,1,7,8
30 2 16-Bit Analog Input 1 0,1,6,7,8 129 0,1,7,8
30 3 32-Bit Analog Input without Flag 1 0,1,6,7,8 129 0,1,7,8
30 4* 16-Bit Analog Input without Flag 1 0,1,6,7,8 129 0,1,7,8
31 0 Frozen Analog Input - All Variations
31 1 32-Bit Frozen Analog Input
31 2 16-Bit Frozen Analog Input
31 3 32-Bit Frozen Analog Input with Time of Freeze
31 4 16-Bit Frozen Analog Input with Time of Freeze
31 5 32-Bit Frozen Analog Input without Flag
31 6 16-Bit Frozen Analog Input without Flag
