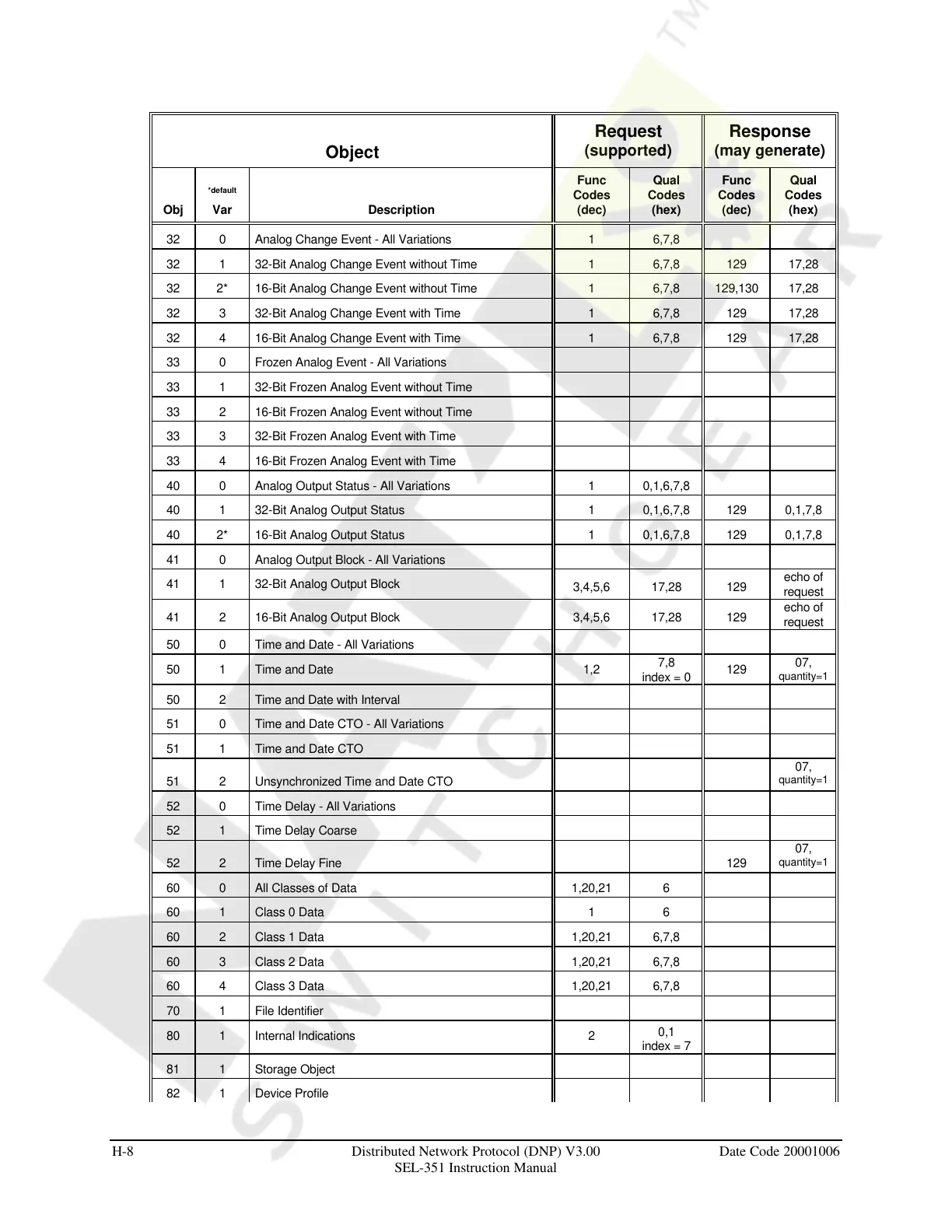

H-8 Distributed Network Protocol (DNP) V3.00 Date Code 20001006
SEL-351 Instruction Manual
Object
Request
(supported)
Response
(may generate)
Obj
*default
Var Description
Func
Codes
(dec)
Qual
Codes
(hex)
Func
Codes
(dec)
Qual
Codes
(hex)
32 0 Analog Change Event - All Variations 1 6,7,8
32 1 32-Bit Analog Change Event without Time 1 6,7,8 129 17,28
32 2* 16-Bit Analog Change Event without Time 1 6,7,8 129,130 17,28
32 3 32-Bit Analog Change Event with Time 1 6,7,8 129 17,28
32 4 16-Bit Analog Change Event with Time 1 6,7,8 129 17,28
33 0 Frozen Analog Event - All Variations
33 1 32-Bit Frozen Analog Event without Time
33 2 16-Bit Frozen Analog Event without Time
33 3 32-Bit Frozen Analog Event with Time
33 4 16-Bit Frozen Analog Event with Time
40 0 Analog Output Status - All Variations 1 0,1,6,7,8
40 1 32-Bit Analog Output Status 1 0,1,6,7,8 129 0,1,7,8
40 2* 16-Bit Analog Output Status 1 0,1,6,7,8 129 0,1,7,8
41 0 Analog Output Block - All Variations
41 1 32-Bit Analog Output Block
3,4,5,6 17,28 129
echo of
request
41 2 16-Bit Analog Output Block 3,4,5,6 17,28 129
echo of
request
50 0 Time and Date - All Variations
50 1 Time and Date 1,2
7,8
index = 0
129
07,
quantity=1
50 2 Time and Date with Interval
51 0 Time and Date CTO - All Variations
51 1 Time and Date CTO
51 2 Unsynchronized Time and Date CTO
07,
quantity=1
52 0 Time Delay - All Variations
52 1 Time Delay Coarse
52 2 Time Delay Fine 129
07,
quantity=1
60 0 All Classes of Data 1,20,21 6
60 1 Class 0 Data 1 6
60 2 Class 1 Data 1,20,21 6,7,8
60 3 Class 2 Data 1,20,21 6,7,8
60 4 Class 3 Data 1,20,21 6,7,8
70 1 File Identifier
80 1 Internal Indications 2
0,1
index = 7
81 1 Storage Object
82 1 Device Profile
