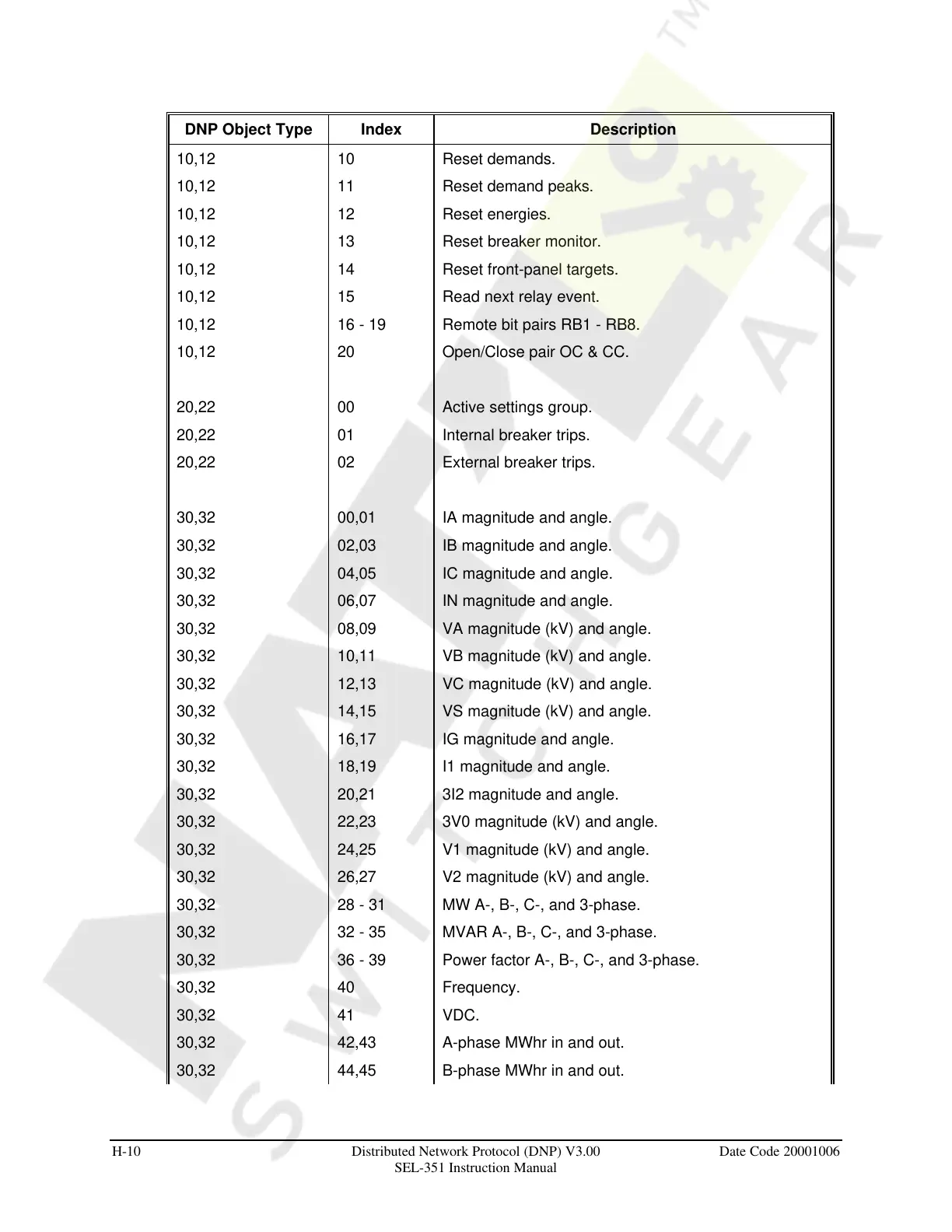

H-10 Distributed Network Protocol (DNP) V3.00 Date Code 20001006
SEL-351 Instruction Manual
DNP Object Type Index Description
10,12 10 Reset demands.
10,12 11 Reset demand peaks.
10,12 12 Reset energies.
10,12 13 Reset breaker monitor.
10,12 14 Reset front-panel targets.
10,12 15 Read next relay event.
10,12 16 - 19 Remote bit pairs RB1 - RB8.
10,12 20 Open/Close pair OC & CC.
20,22 00 Active settings group.
20,22 01 Internal breaker trips.
20,22 02 External breaker trips.
30,32 00,01 IA magnitude and angle.
30,32 02,03 IB magnitude and angle.
30,32 04,05 IC magnitude and angle.
30,32 06,07 IN magnitude and angle.
30,32 08,09 VA magnitude (kV) and angle.
30,32 10,11 VB magnitude (kV) and angle.
30,32 12,13 VC magnitude (kV) and angle.
30,32 14,15 VS magnitude (kV) and angle.
30,32 16,17 IG magnitude and angle.
30,32 18,19 I1 magnitude and angle.
30,32 20,21 3I2 magnitude and angle.
30,32 22,23 3V0 magnitude (kV) and angle.
30,32 24,25 V1 magnitude (kV) and angle.
30,32 26,27 V2 magnitude (kV) and angle.
30,32 28 - 31 MW A-, B-, C-, and 3-phase.
30,32 32 - 35 MVAR A-, B-, C-, and 3-phase.
30,32 36 - 39 Power factor A-, B-, C-, and 3-phase.
30,32 40 Frequency.
30,32 41 VDC.
30,32 42,43 A-phase MWhr in and out.
30,32 44,45 B-phase MWhr in and out.
