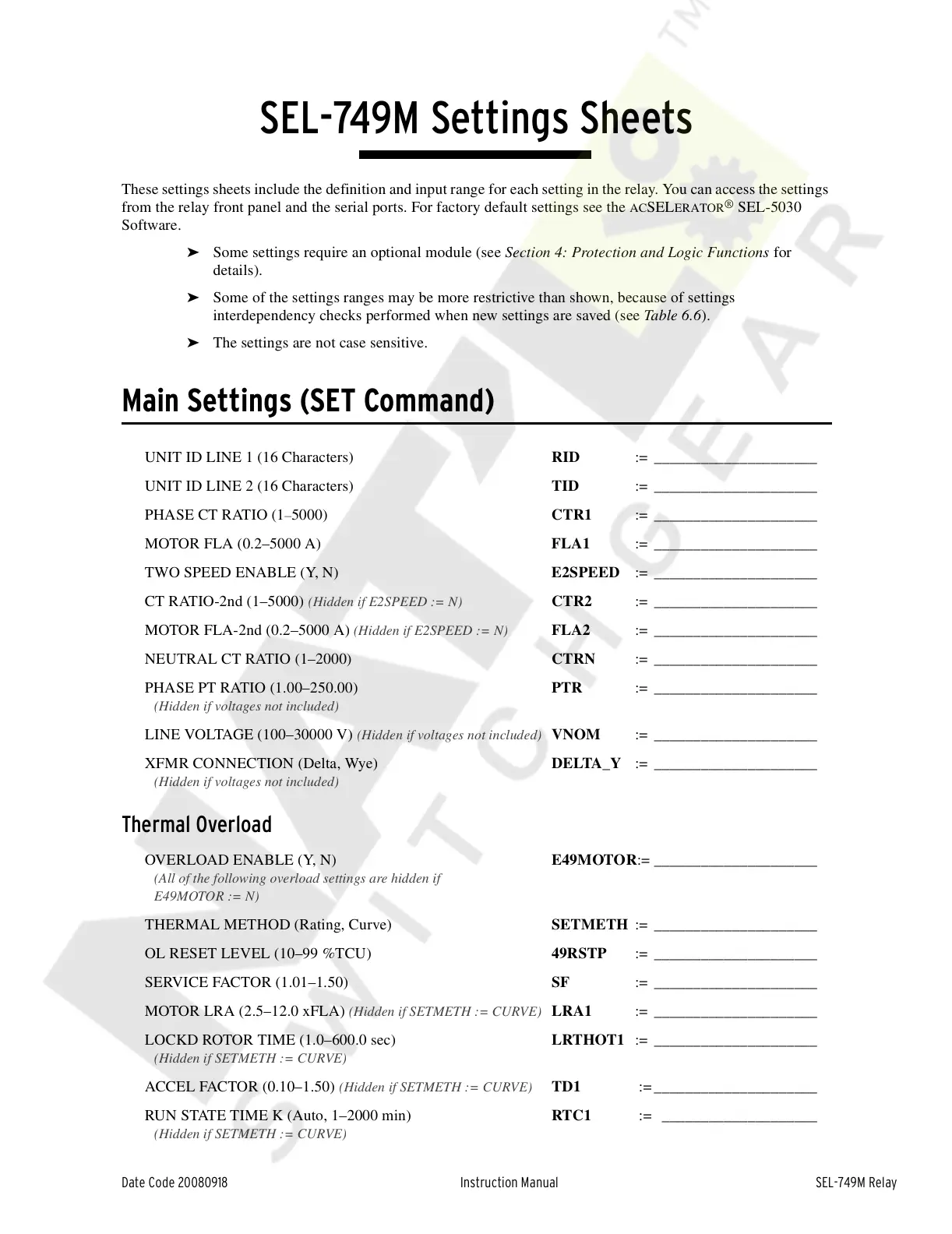

SEL-749M Settings Sheets
Instructi on Manual
These settings sheets include the definition and input range for each setting in the relay. You can access the settings
from the relay front panel and the serial ports. For factory default settings see the
ACSELERATOR
®
SEL-5030
Software.
➤ Some settings require an optional module (see Section 4: Protection and Logic Functions for
details).
➤ Some of the settings ranges may be more restrictive than shown, because of settings
interdependency checks performed when new settings are saved (see Table 6.6).
➤ The settings are not case sensitive.
Main Settings (SET Command)
UNIT ID LINE 1 (16 Characters) RID := _____________________
UNIT ID LINE 2 (16 Characters) TID := _____________________
PHASE CT RATIO (1
–5000) CTR1 := _____________________
MOTOR FLA (0.2–5000 A) FLA1 := _____________________
TWO SPEED ENABLE (Y, N) E2SPEED := _____________________
CT RATIO-2nd (1–5000)
(Hidden if E2SPEED := N) CTR2 := _____________________
MOTOR FLA-2nd (0.2–5000 A)
(Hidden if E2SPEED := N) FLA2 := _____________________
NEUTRAL CT RATIO (1–2000) CTRN := _____________________
PHASE PT RATIO (1.00–250.00)
(Hidden if voltages not included)
PTR := _____________________
LINE VOLTAGE (100–30000 V)
(Hidden if voltages not included) VNOM := _____________________
XFMR CONNECTION (Delta, Wye)
(Hidden if voltages not included)
DELTA_Y := _____________________
Thermal Overload
OVERLOAD ENABLE (Y, N)
(All of the following overload settings are hidden if
E49MOTOR := N)
E49MOTOR:= _____________________
THERMAL METHOD (Rating, Curve) SETMETH := _____________________
OL RESET LEVEL (10–99 %TCU) 49RSTP := _____________________
SERVICE FACTOR (1.01–1.50) SF := _____________________
MOTOR LRA (2.5–12.0 xFLA)
(Hidden if SETMETH := CURVE) LRA1 := _____________________
LOCKD ROTOR TIME (1.0–600.0 sec)
(Hidden if SETMETH := CURVE)
LRTHOT1 := _____________________
ACCEL FACTOR (0.10–1.50)
(Hidden if SETMETH := CURVE) TD1 := _____________________
RUN STATE TIME K (Auto, 1–2000 min)
(Hidden if SETMETH := CURVE)
RTC1 := ____________________
