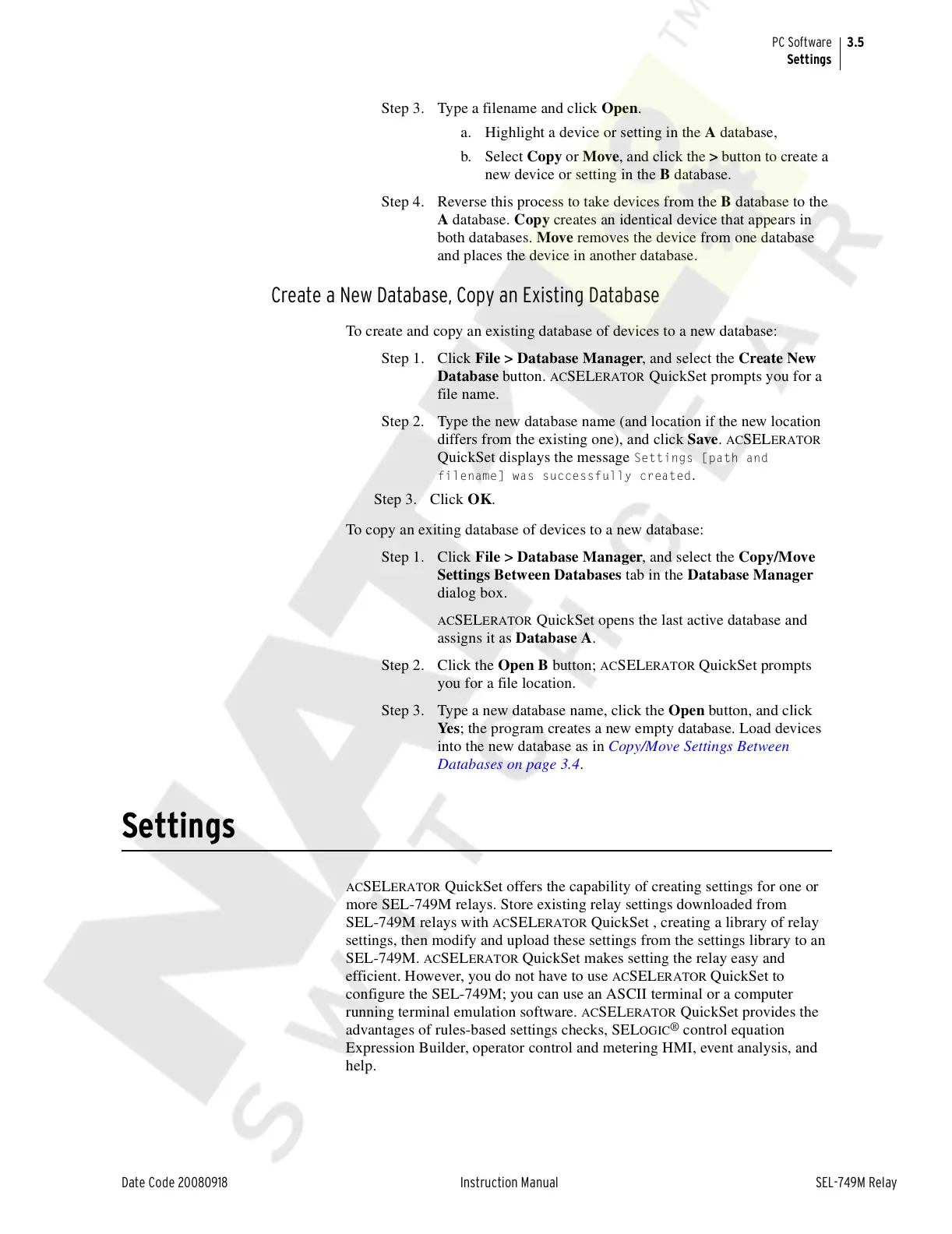

3.5
Date Code 20080918 Instruction Manual SEL-749M Relay
PC Software
Settings
Step 3. Type a filename and click Open.
a. Highlight a device or setting in the A database,
b. Select Copy or Move, and click the > button to create a
new device or setting in the B database.
Step 4. Reverse this process to take devices from the B database to the
A database. Copy creates an identical device that appears in
both databases. Move removes the device from one database
and places the device in another database.
Create a New Database, Copy an Existing Database
To create and copy an existing database of devices to a new database:
Step 1. Click File > Database Manager, and select the Create New
Database button.
ACSELERATOR QuickSet prompts you for a
file name.
Step 2. Type the new database name (and location if the new location
differs from the existing one), and click Save.
ACSELERATOR
QuickSet displays the message
Settings [path and
filename] was successfully created
.
Step 3. Click OK.
To copy an exiting database of devices to a new database:
Step 1. Click File > Database Manager, and select the Copy/Move
Settings Between Databases tab in the Database Manager
dialog box.
ACSELERATOR QuickSet opens the last active database and
assigns it as Database A.
Step 2. Click the Open B button;
ACSELERATOR QuickSet prompts
you for a file location.
Step 3. Type a new database name, click the Open button, and click
Ye s; the program creates a new empty database. Load devices
into the new database as in Copy/Move Settings Between
Databases on page 3.4.
Settings
ACSELERATOR QuickSet offers the capability of creating settings for one or
more SEL-749M relays. Store existing relay settings downloaded from
SEL-749M relays with
ACSELERATOR QuickSet , creating a library of relay
settings, then modify and upload these settings from the settings library to an
SEL-749M.
ACSELERATOR QuickSet makes setting the relay easy and
efficient. However, you do not have to use
ACSELERATOR QuickSet to
configure the SEL-749M; you can use an ASCII terminal or a computer
running terminal emulation software.
ACSELERATOR QuickSet provides the
advantages of rules-based settings checks, SEL
OGIC
®
control equation
Expression Builder, operator control and metering HMI, event analysis, and
help.
