Table A.2 lists the instruction manual release dates and a description of
modifications. The most recent instruction manual revisions are listed at the
top.

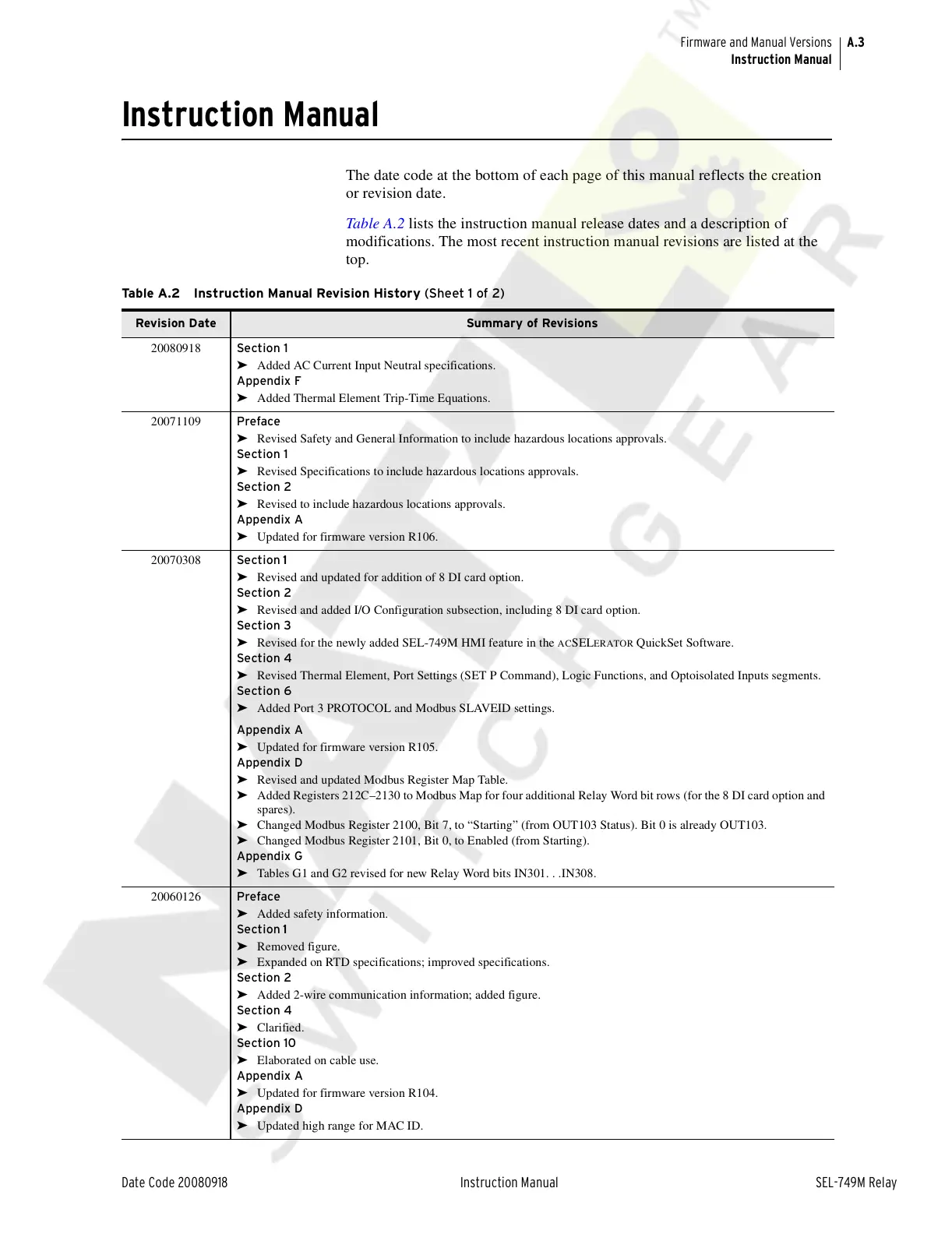

Table A.2 Instruction Manual Revision History (Sheet 1 of 2)
Revision Date Summary of Revisions
20080918 Section 1
➤ Added AC Current Input Neutral specifications.
Appendix F
➤ Added Thermal Element Trip-Time Equations.
20071109 Preface
➤ Revised Safety and General Information to include hazardous locations approvals.
Section 1
➤ Revised Specifications to include hazardous locations approvals.
Section 2
➤ Revised to include hazardous locations approvals.
Appendix A
➤ Updated for firmware version R106.
20070308 Section 1
➤ Revised and updated for addition of 8 DI card option.
Section 2
➤ Revised and added I/O Configuration subsection, including 8 DI card option.
Section 3
➤ Revised for the newly added SEL-749M HMI feature in the
ACSELERATOR QuickSet Software.
Section 4
➤ Revised Thermal Element, Port Settings (SET P Command), Logic Functions, and Optoisolated Inputs segments.
Section 6
➤ Added Port 3 PROTOCOL and Modbus SLAVEID settings.
Appendix A
➤ Updated for firmware version R105.
Appendix D
➤ Revised and updated Modbus Register Map Table.
➤ Added Registers 212C–2130 to Modbus Map for four additional Relay Word bit rows (for the 8 DI card option and
spares).
➤ Changed Modbus Register 2100, Bit 7, to “Starting” (from OUT103 Status). Bit 0 is already OUT103.
➤ Changed Modbus Register 2101, Bit 0, to Enabled (from Starting).
Appendix G
➤ Tables G1 and G2 revised for new Relay Word bits IN301. . .IN308.
20060126 Preface
➤ Added safety information.
Section 1
➤ Removed figure.
➤ Expanded on RTD specifications; improved specifications.
Section 2
➤ Added 2-wire communication information; added figure.
Section 4
➤ Clarified.
Section 10
➤ Elaborated on cable use.
Appendix A
➤ Updated for firmware version R104.
Appendix D
➤ Updated high range for MAC ID.
