2.18

SEL-749M Relay Instruction Manual Date Code 20080918

Installation

AC/DC Control Connection Diagrams

Two-Speed Motor

In Figure 2.15, contactors C1 and C2 are interlocked so that only one is

energized to select either Speed1 or Speed2. The following setting is required.

SPEED2 := IN101

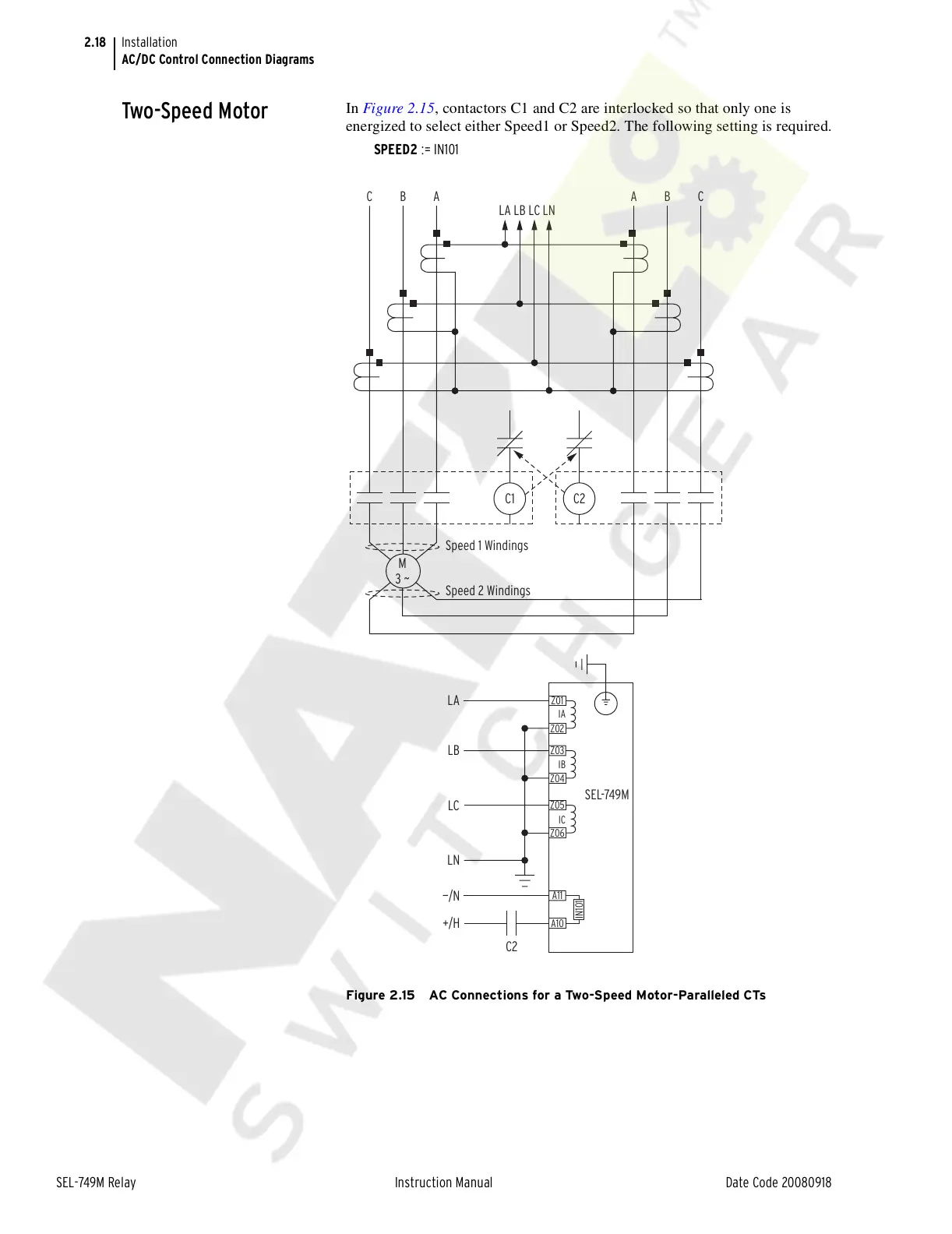

Figure 2.15 AC Connections for a Two-Speed Motor-Paralleled CTs

+/H

—/N

SEL-749M

Z06

Z05

A10

A11

Z04

Z03

Z02

Z01

IN101

Speed 1 Windings

Speed 2 Windings

ABC

3 ~

CBA

C2C1

LA LB LC LN
