Date Code 20080918 Instruction Manual SEL-749M Relay
PC Software
Meter and Control
Click on the Targe ts button to view the status of all the Relay Word bits.
When a Relay Word bit has a value of 1 (ENABLED = 1), the Relay Word bit
is asserted. Similarly, when a Relay Word bit has a value of 0 (RB02 = 0), the
Relay Word bit is deasserted.
The Status and SER screens display the same information as the ASCII STA
and SER commands.
Click on the Motor Start Report > Data button to display the motor start
report data or on the Graph button to display the report graphically.

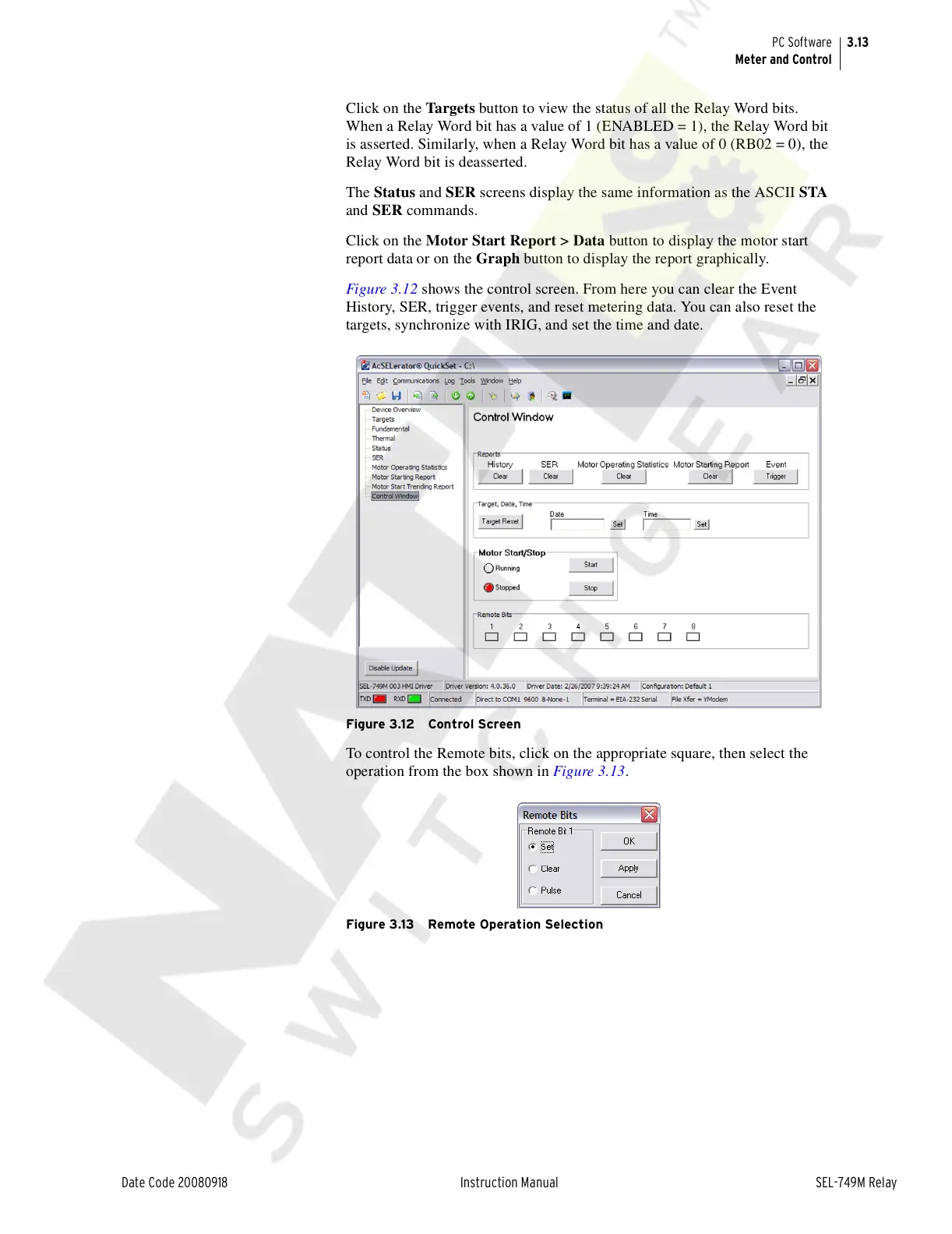

Figure 3.12 shows the control screen. From here you can clear the Event
History, SER, trigger events, and reset metering data. You can also reset the
targets, synchronize with IRIG, and set the time and date.
Figure 3.12 Control Screen
To control the Remote bits, click on the appropriate square, then select the
operation from the box shown in Figure 3.13.
Figure 3.13 Remote Operation Selection
