2.15

Date Code 20080918 Instruction Manual SEL-749M Relay

Installation

AC/DC Control Connection Diagrams

Voltage Connections

With the voltage inputs option, the three-phase voltages may be directly

connected, wye-wye VT connected, or open-delta VT connected.

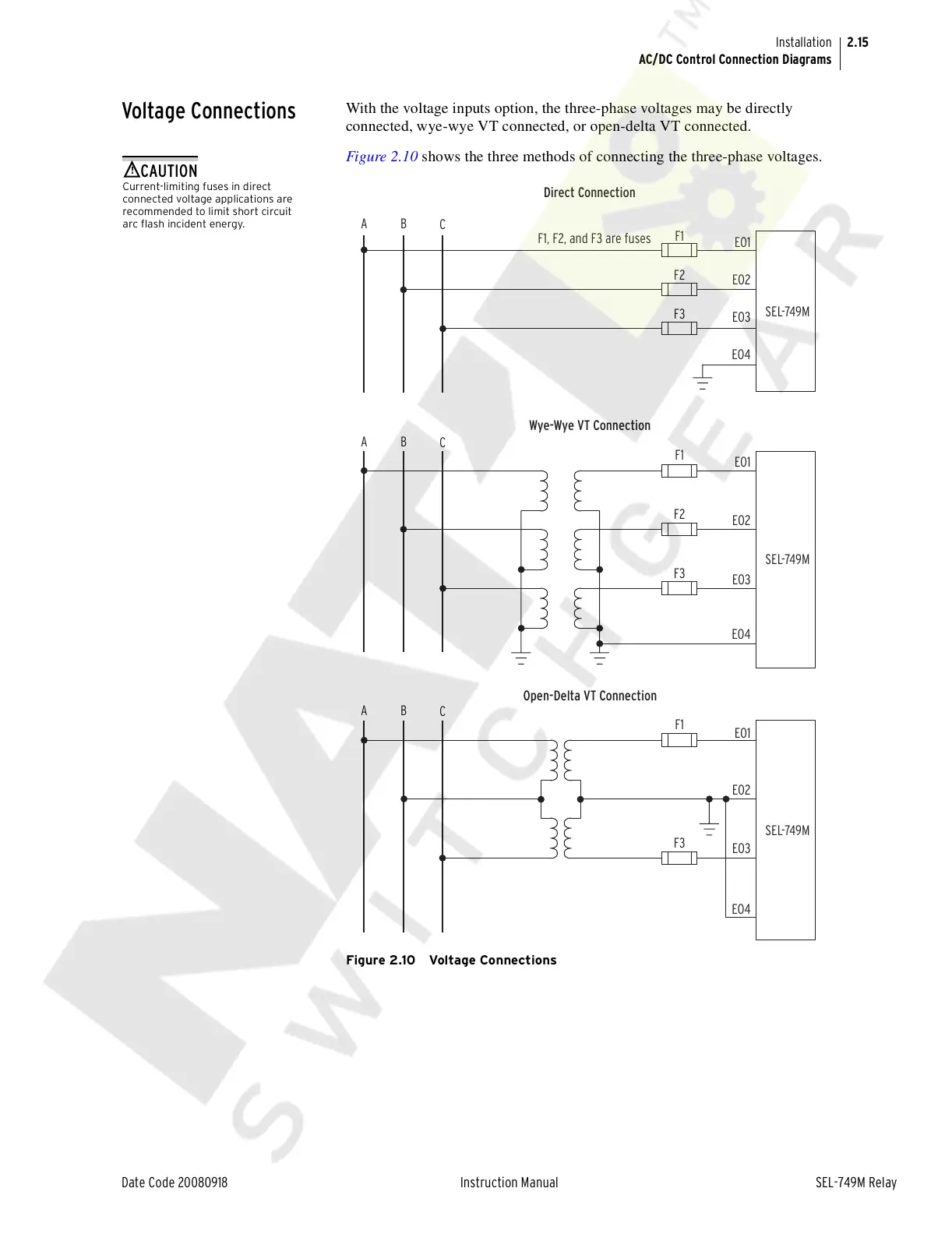

Figure 2.10 shows the three methods of connecting the three-phase voltages.

Figure 2.10 Voltage Connections

CAUTION

Current-limiting fuses in direct

connected voltage applications are

recommended to limit short circuit

arc flash incident energy.

SEL-749M

EO1

EO2

EO3

EO4

EO1

EO2

EO3

EO4

Direct Connection

Wye-Wye VT Connection

Open-Delta VT Connection

F1, F2, and F3 are fuses

SEL-749M

EO1

EO2

EO3

EO4

SEL-749M
