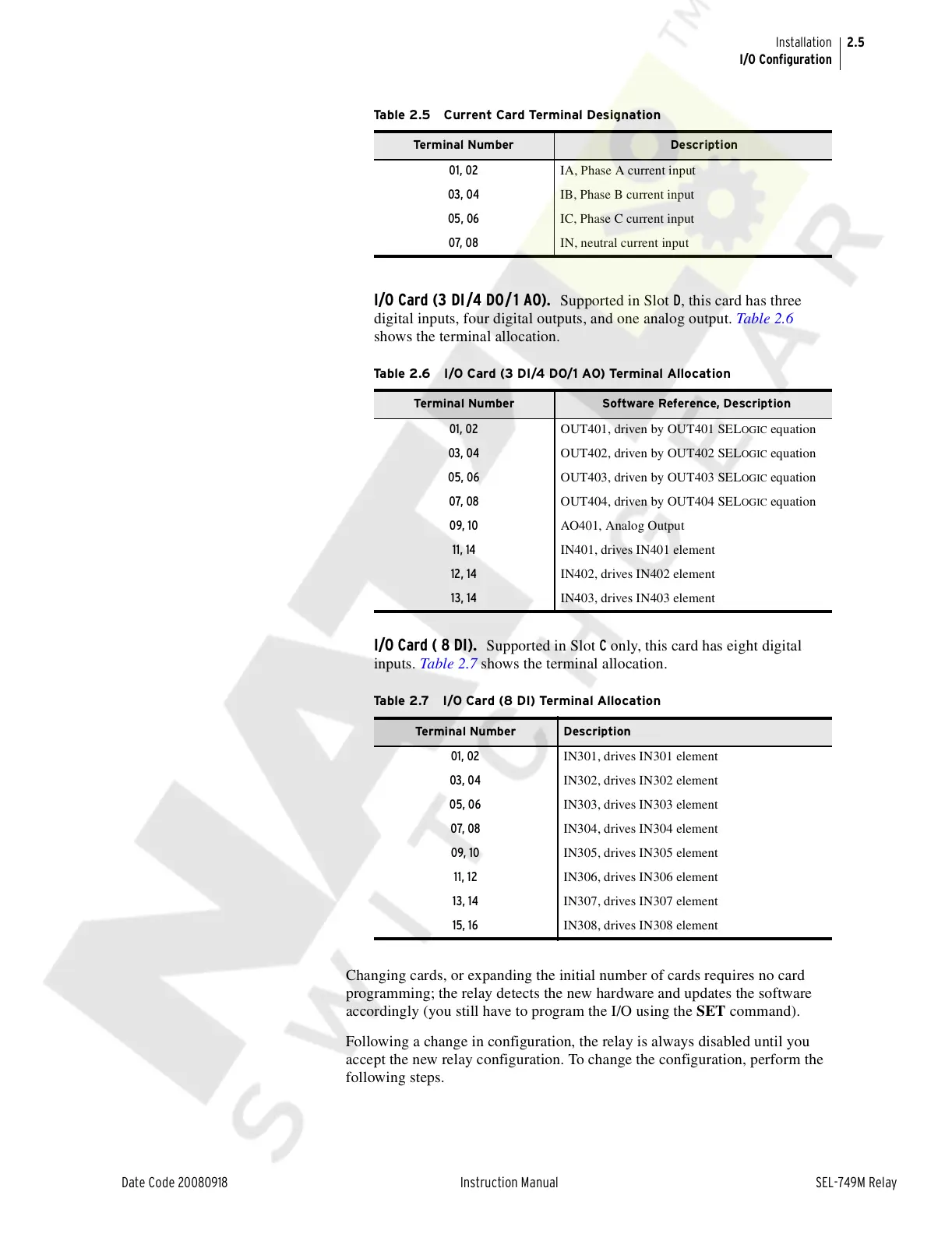

2.5
Date Code 20080918 Instruction Manual SEL-749M Relay
Installation
I/O Configuration
I/O Card (3 DI/4 DO/1 AO). Supported in Slot D, this card has three
digital inputs, four digital outputs, and one analog output. Table 2.6
shows the terminal allocation.
I/O Card ( 8 DI). Supported in Slot C only, this card has eight digital
inputs. Table 2.7 shows the terminal allocation.
Changing cards, or expanding the initial number of cards requires no card
programming; the relay detects the new hardware and updates the software
accordingly (you still have to program the I/O using the SET command).
Following a change in configuration, the relay is always disabled until you
accept the new relay configuration. To change the configuration, perform the
following steps.
T
able 2.5 Current Card Terminal Designation
Te r m in a l N um b er Description
01, 02 IA, Phase A current input
03, 04 IB, Phase B current input
05, 06 IC, Phase C current input
07, 08 IN, neutral current input
T
able 2.6 I/O Card (3 DI/4 DO/1 AO) Terminal Allocation
Termi nal Number Software Reference, Description
01, 02 OUT401, driven by OUT401 SELOGIC equation
03, 04 OUT402, driven by OUT402 SEL
OGIC equation
05, 06 OUT403, driven by OUT403 SEL
OGIC equation
07, 08 OUT404, driven by OUT404 SEL
OGIC equation
09, 10 AO401, Analog Output
11, 14 IN401, drives IN401 element
12, 14 IN402, drives IN402 element
13, 14 IN403, drives IN403 element
T
able 2.7 I/O Card (8 DI) Terminal Allocation
Termi nal Number Description
01, 02 IN301, drives IN301 element
03, 04 IN302, drives IN302 element
05, 06 IN303, drives IN303 element
07, 08 IN304, drives IN304 element
09, 10 IN305, drives IN305 element
11, 12 IN306, drives IN306 element
13, 14 IN307, drives IN307 element
15, 16 IN308, drives IN308 element
