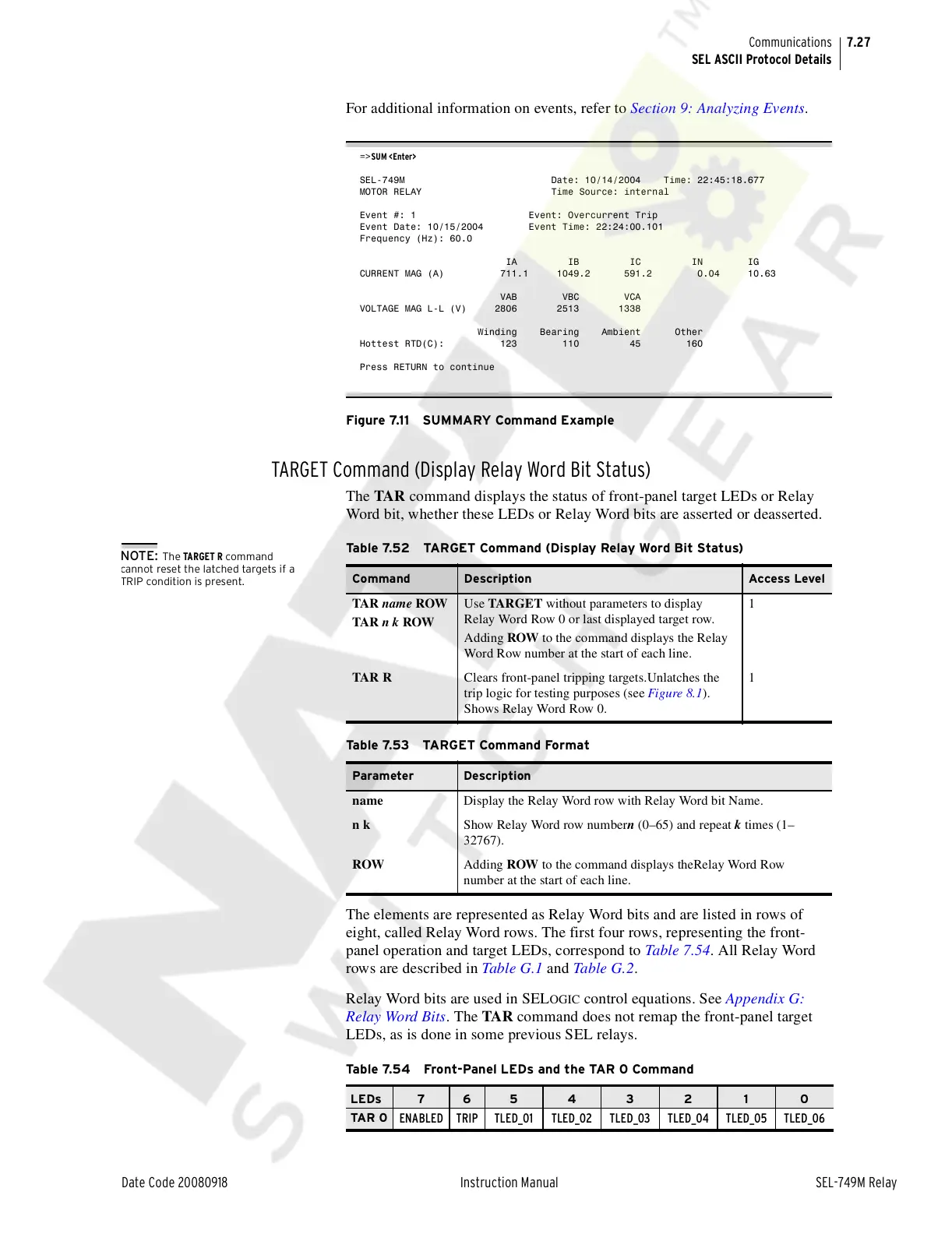

Schweitzer Engineering Laboratories SEL-749M - Table 7.52 TARGET Command (Display Relay Word Bit Status); Table 7.53 TARGET Command Format; Table 7.54 Front-Panel Leds and the TAR 0 Command; Figure 7.11 SUMMARY Command Example

7.27
Date Code 20080918 Instruction Manual SEL-749M Relay
Communications
SEL ASCII Protocol Details
For additional information on events, refer to Section 9: Analyzing Events.
=>SUM <Enter>
SEL-749M Date: 10/14/2004 Time: 22:45:18.677
MOTOR RELAY Time Source: internal
Event #: 1 Event: Overcurrent Trip
Event Date: 10/15/2004 Event Time: 22:24:00.101
Frequency (Hz): 60.0
IA IB IC IN IG
CURRENT MAG (A) 711.1 1049.2 591.2 0.04 10.63
VAB VBC VCA
VOLTAGE MAG L-L (V) 2806 2513 1338
Winding Bearing Ambient Other
Hottest RTD(C): 123 110 45 160
Press RETURN to continue
Figure 7.11 SUMMARY Command Example
TARGET Command (Display Relay Word Bit Status)
The TAR command displays the status of front-panel target LEDs or Relay
Word bit, whether these LEDs or Relay Word bits are asserted or deasserted.
The elements are represented as Relay Word bits and are listed in rows of
eight, called Relay Word rows. The first four rows, representing the front-
panel operation and target LEDs, correspond to Table 7.54. All Relay Word
rows are described in Table G.1 and Table G.2.
Relay Word bits are used in SEL
OGIC control equations. See Appendix G:
Relay Word Bits. The TAR command does not remap the front-panel target
LEDs, as is done in some previous SEL relays.
Table 7.52 TARGET Command (Display Relay Word Bit Status)
Command Description Access Level
TAR name ROW
TAR n k ROW
Use TARGET without parameters to display
Relay Word Row 0 or last displayed target row.
Adding ROW to the command displays the Relay
Word Row number at the start of each line.
1
TAR R Clears front-panel tripping targets.Unlatches the
trip logic for testing purposes (see Figure 8.1).
Shows Relay Word Row 0.
1
Table 7.53 TARGET Command Format
Parameter Description
name Display the Relay Word row with Relay Word bit Name.
n k Show Relay Word row numbern (0–65) and repeat k times (1–
32767).
ROW Adding ROW to the command displays theRelay Word Row
number at the start of each line.
Table 7.54 Front-Panel LEDs and the TAR 0 Command
LEDs 7 6 5 4 3 2 1 0
TAR 0
ENABLED TRIP TLED_01 TLED_02 TLED_03 TLED_04 TLED_05 TLED_06
NOTE: The TARGET R command
c
annot reset the latched targets if a
T
RIP condition is present.
