REFILL TANK/BIN & PRODUCT CALIBRATION PAGE

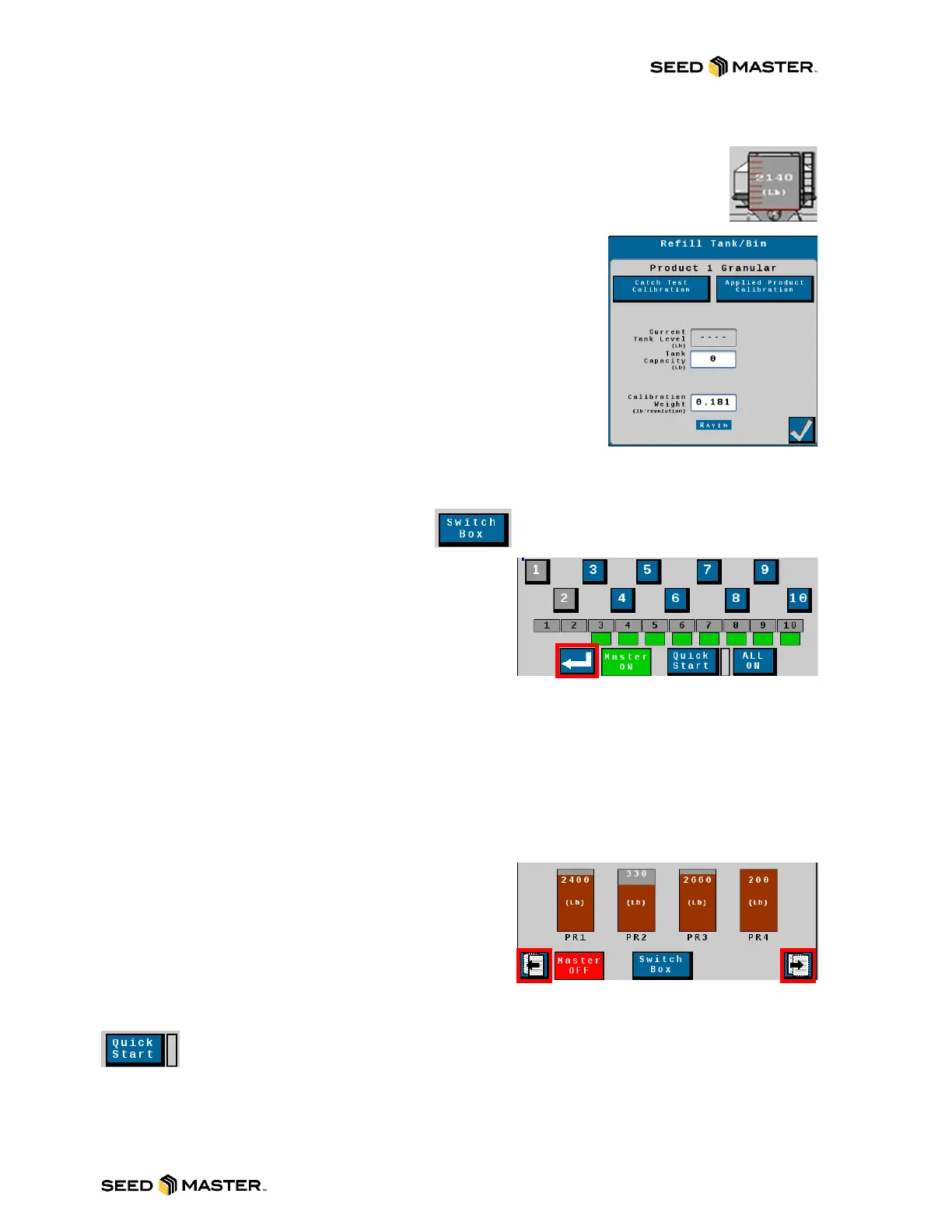

To quickly access the tank fill and product calibration settings simply touch on the tank in
the middle of the screen. The tank indicator on the product control home screen displays
a tally of product remaining based upon the load cells. The tank volume is the volume of
product currently in the tank or bin, not the capacity of the tank or bin. The tank capacity
can manually be set by entering the Current Tank Level. The current
tank level value will adjust as product is applied. Before adding product
to the tank, it is important to zero out the Current Tank Level. Simply
touch the “Zero” button to zero the tank weight.
To perform a product calibration test, touch the “Catch Test
Calibration” button. Please see the “CATCH TEST CALIBRATION
PROCEDURE”, (PG.63) for more info.
To perform an automatic product calibration, where the load cells and
rate controller compare applied product weights, touch on the “Applied
Product Calibration“ button. Please see the “APPLIED PRODUCT
PROCEDURE”, PG.67 for more info. A manual calibration weight can
be entered from this page.
SECTION STATUS & SWITCH BOX
1. Select the Section Switchbox button.
2. Disable or enable sections:
a. Select the Section Number button to enable
or disable a section. If operating multiple
product configurations, enabling or disabling a
section affects all products in that section
group. If needed, select a different product to
access different section groups.
b. Select “All On” button to enable all sections for the product or section group.
3. Select the back button to return to the main run page.
4. The implement sections can be in one of three states:
Disabled - Manually disabled by Section Switchbox buttons. Square block below section number is
clear.
Enabled - Section is ready to apply. Square block below section number has a black rectangular
outline.
Active - Section is applying. Square block below section number is filled green.
ALTERNATE TANK VIEW
Use the “Page Left” or “Page Right” buttons to show the
following screen. It shows each product’s tank weight.
Touch on any one of the tanks to access the tank fill and
product calibration page. To toggle back to the single tank
view, use the “Page Left” or “Page Right” buttons.
QUICK START BUTTON
The Quick Start button enables after activating the system for a product. If operating
multiple products, select the desired products and enable the system. Then, select the
“Quick Start” button for each product. Selecting a “Quick Start” button turns on all sections only for the
active product and applies the product at target rate. When selected, “Quick Start” overrides the Section
Control and machine speed threshold for 5 seconds for the active product. A countdown indicator
appears when selected. Select the Quick Start button at any time during countdown to reset counter
back to 5 seconds.
