Using the EM 6000

102

►

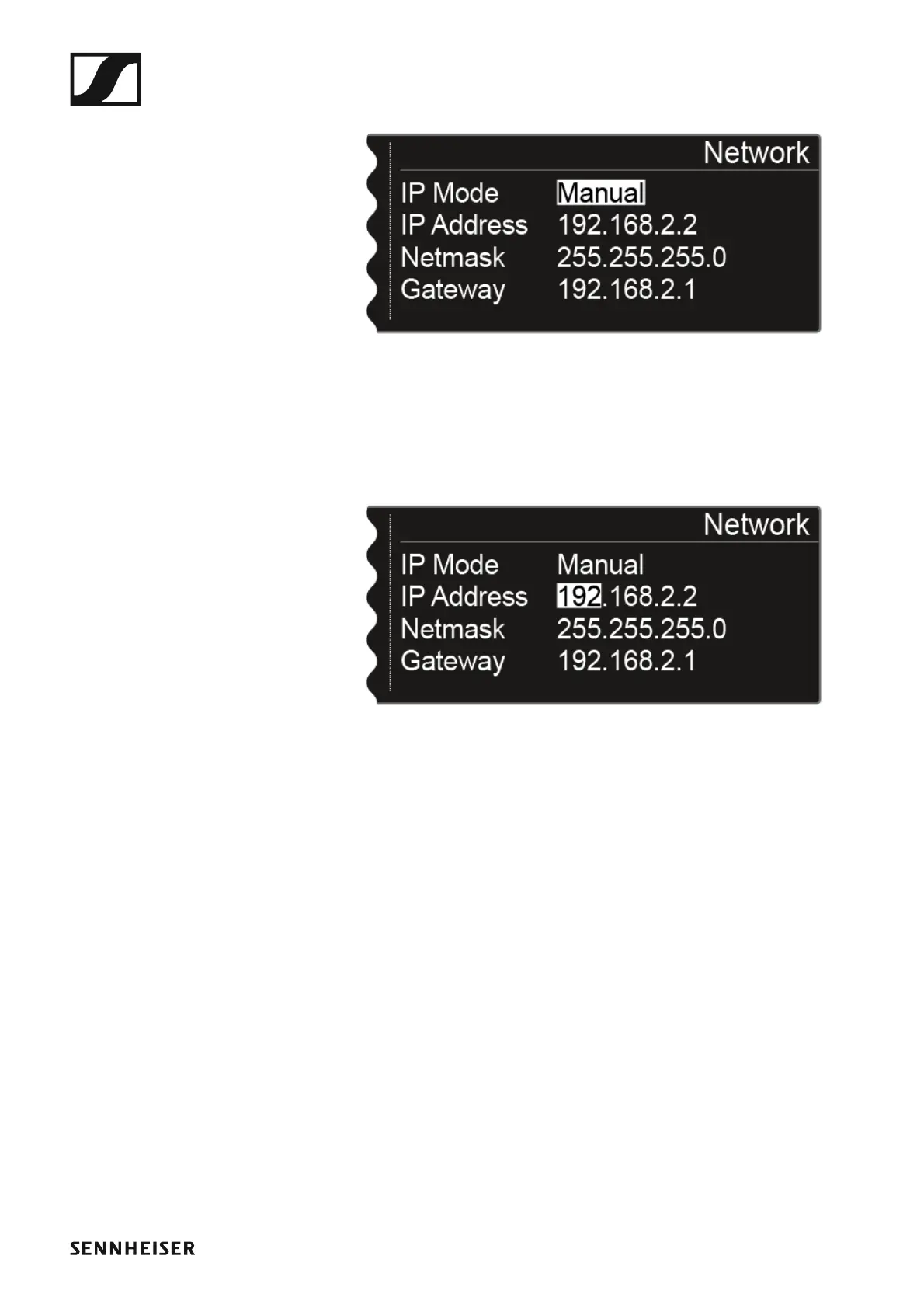

To configure the settings in IP Mode Manual and IP Mode mDNS:

▷ Press the jog dial to switch between the individual network configura-

tion items.

▷ Turn the jog dial to set the value.

►

▷ Press the SAVE button to save the settings.
