Installing the EM 6000

36

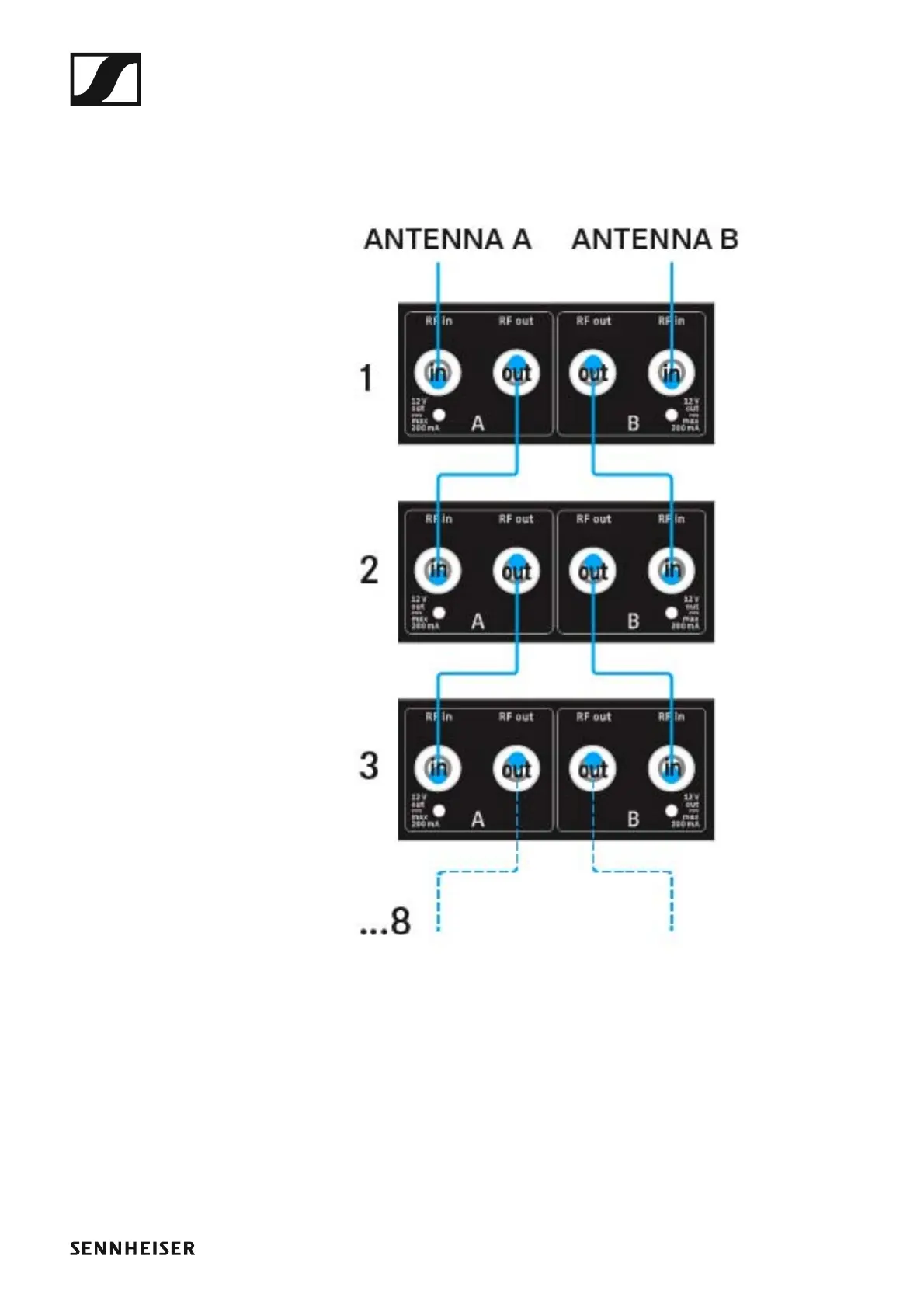

Cascading receivers

For larger 4-channel systems, you can cascade up to 8 receivers without

using additional antenna splitters and you then require only one pair of an-

tennas.

►
