Installing the EM 6000
30
Outputting analog audio signals
Each of the two channels CH 1 and CH 2 on the EM 6000 have both a sym-
metrical XLR-3M output socket and a symmetrical 6.3 mm (1/4") jack out-
put socket.
▷ Always use only one of the two Bal AF out output sockets for each
channel.
The two output sockets of a channel are connected in parallel.

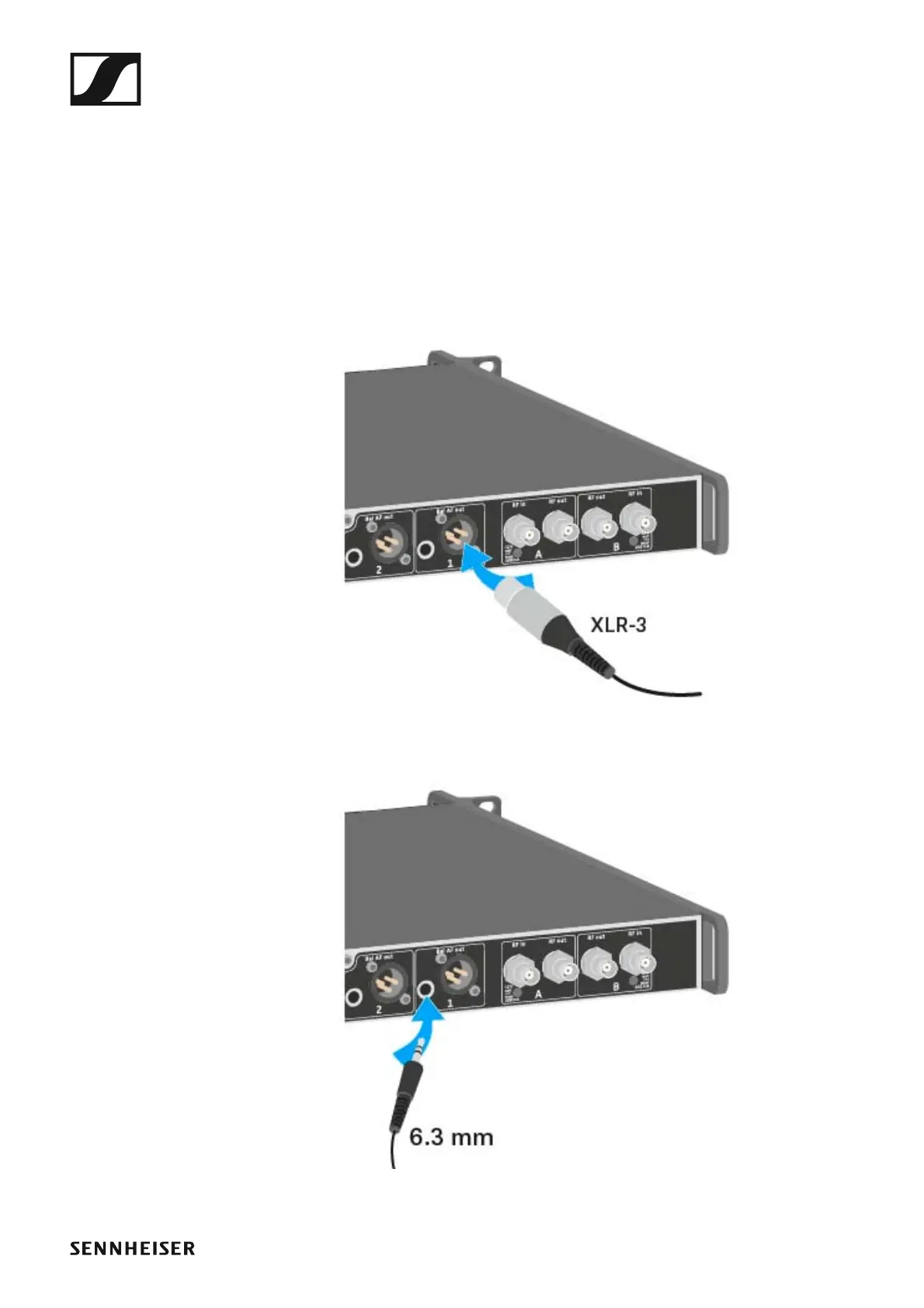

To connect an XLR cable:
►
To connect a jack cable:
►
