Sennheiser Digital 6000 - Connecting an Instrument or Line Source to the SK 6000

Installing the SK 6000
53
Connecting an instrument or line source to the
SK 6000
You can connect instruments or audio sources with a line level to the
SK 6000 bodypack transmitter.
To do so, you require the Sennheiser CI 1-4 cable (6.3 mm (1/4") jack plug
to 3-pin audio connector)
To connect an instrument or line source to bodypack transmitter:

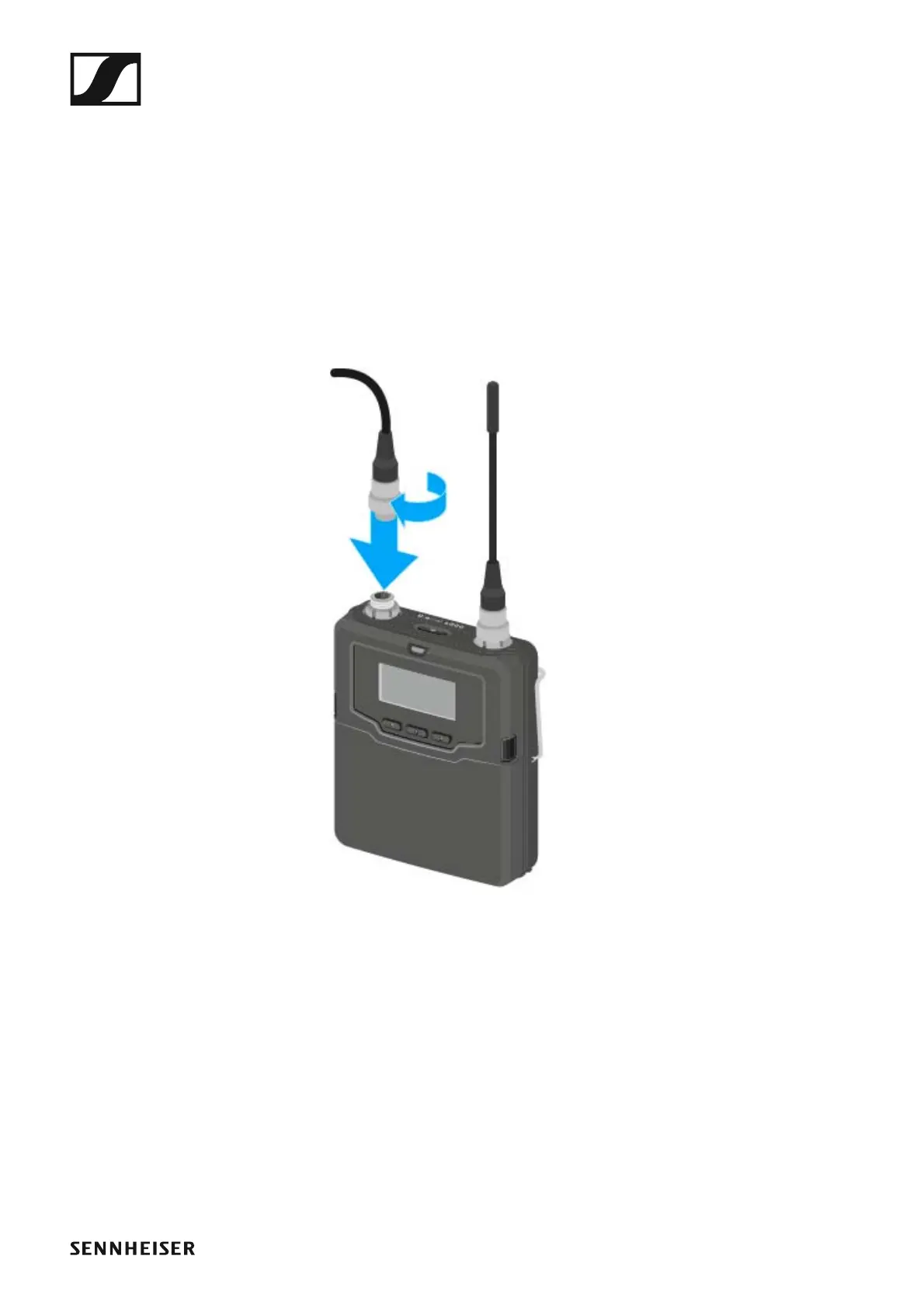

▷ Connect the 3-pin audio connector of the CI 1-4 cable to the SK 6000
bodypack transmitter audio socket as shown in the figure.
▷ Tightly screw on the audio cable coupling ring on the audio socket
thread of the SK 6000 bodypack transmitter.
►
