Installing the EM 6000
35
Connecting remote antennas
We recommend using remote antennas. You can also find useful informa-
tion about using antennas under “Recommendations for using antennas”.
To connect remote antennas:
▷ Connect the first antenna to the RF in socket for Antenna A on the rear
side of the EM 6000.
▷ Connect the second antenna to the RF in socket for Antenna B on the
rear side of the EM 6000.
►

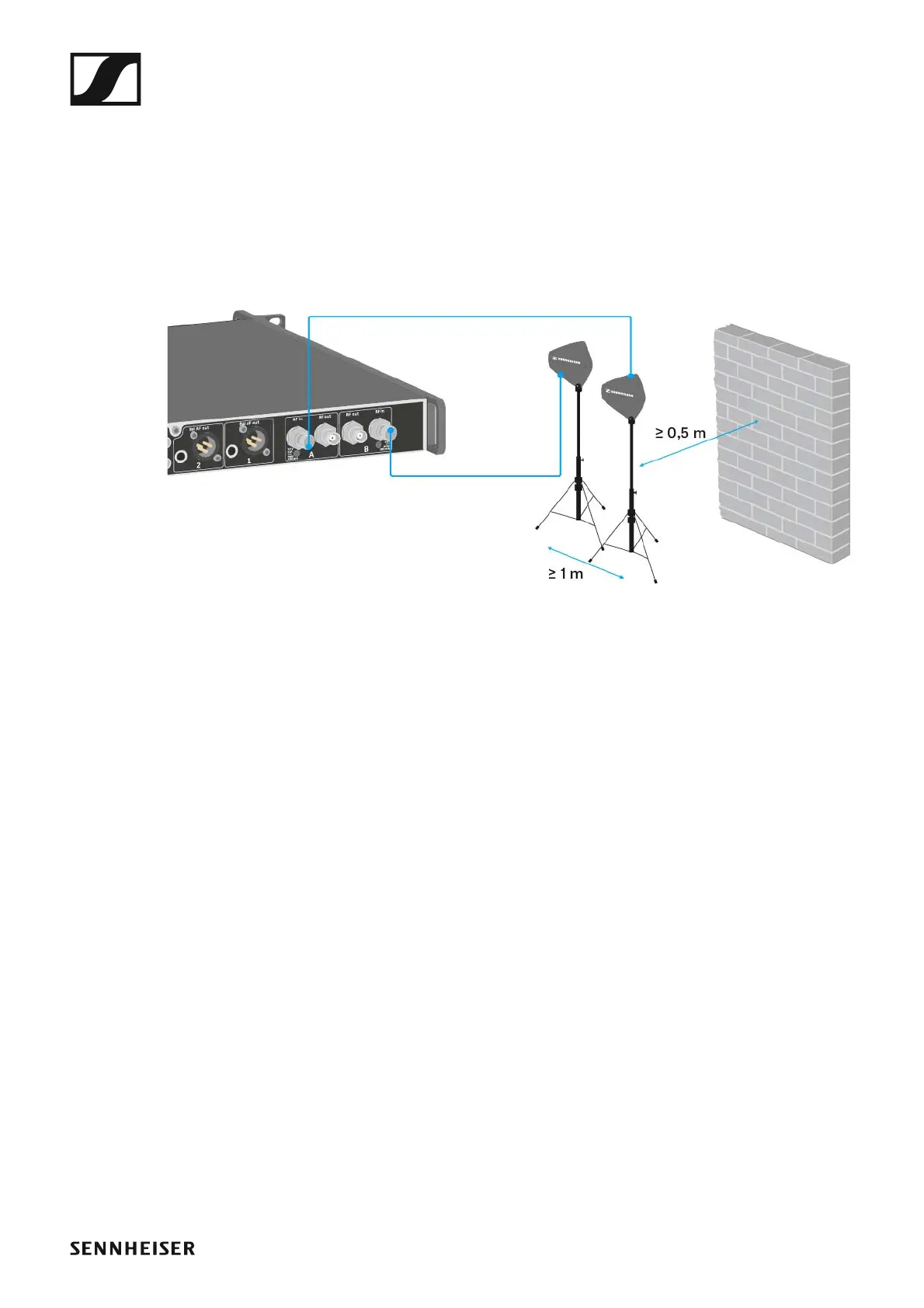

Note the following information when setting up antennas:
▷ Maintain a distance of at least 1 m (3 ft) between the antennas.
▷ Maintain a distance of at least 0.5 m (1.5 ft) between the antennas and
the nearest wall.
▷ Position the antennas so that there is a direct line of sight between the
transmitters and the antennas.
▷ Refer to the more detailed information under “Remote antennas”.
▷ Activate the booster feed in the EM 6000 menu if you are using active
antennas. See “Booster Feed” in the chapter “System menu item”. Al-
ternatively, use an external antenna amplifier.
