Installing the EM 6000

34

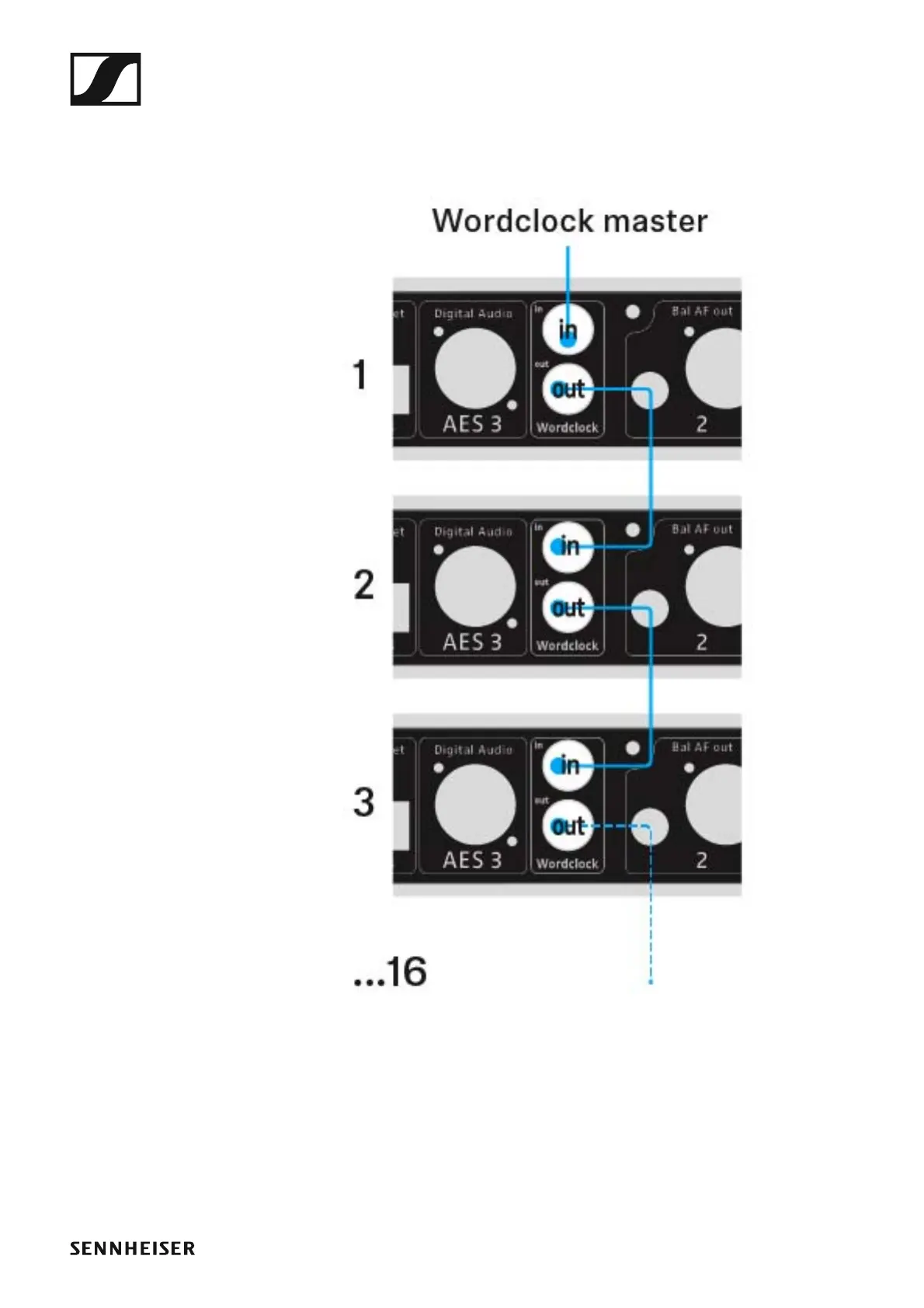

To cascade the word clock:

▷ Connect the Wordclock In input of the next EM 6000 to the Wordclock

Out output of the previous EM 6000.

►
