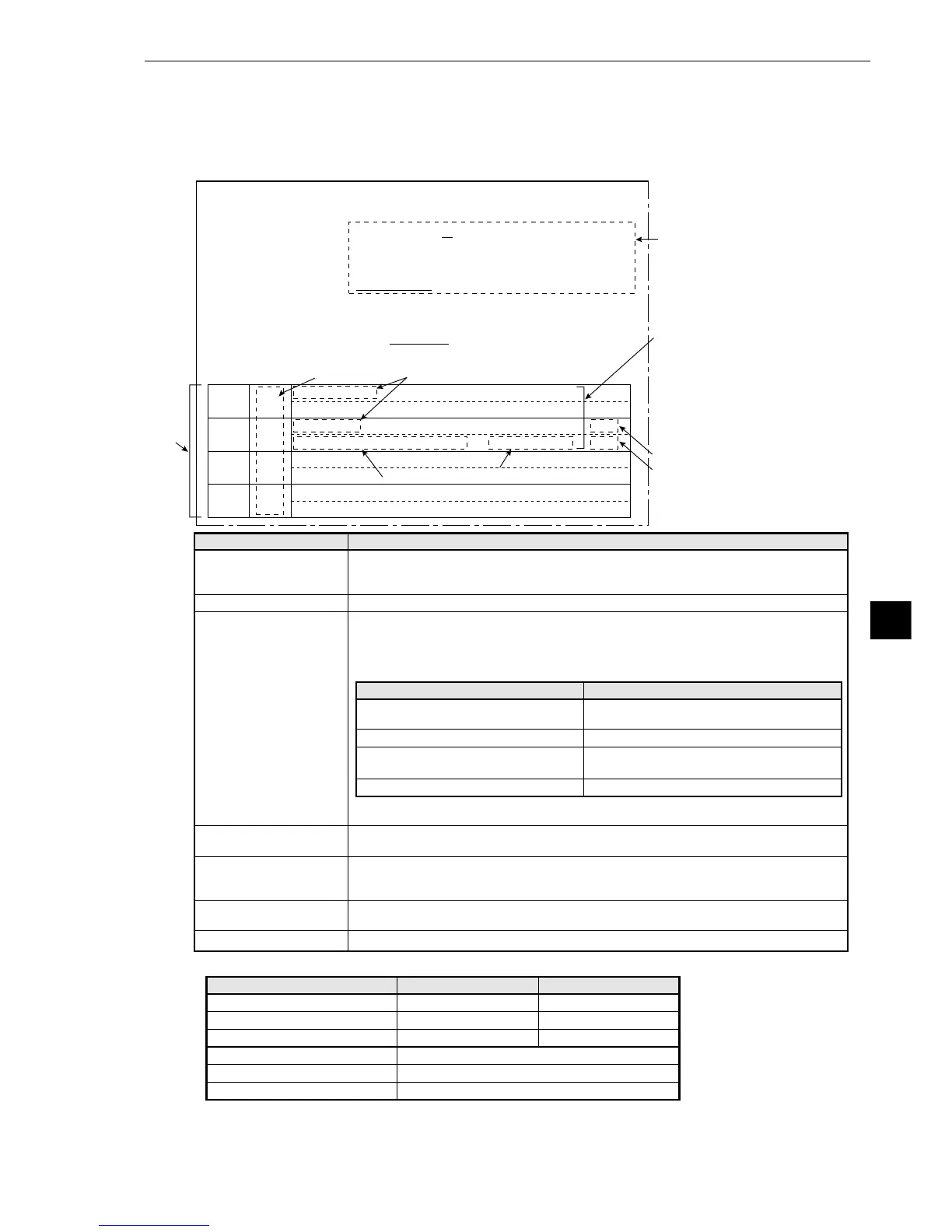

9-15
Shared settings
9
[NUMERIC CALC]
(TYPE00-MEAS.0-POS-DEVIATION)
1CALC.RESULT
N00(0~15)
2OBJECT TYPE
NO COORD[X Y] DEVIAT[x y] MATCH [M]
ANGL-DEV[B] NUM-CALC[NC] CNST[C]
3FORMULA
REG.0(0~7) MDL0(0~1) N00(0~15)
＋−＊／←→ DEL END
4UPPER&LOWER LIMIT +
00000650.0~+00000700.0
5OUTPUT
NO Y0(0~7) C000(0~107)
6TEST A RUN
(SET KEY)
7UPPER MENU
N00
N01
N02
N03
[C]
[X]
＋
00000002.0
0X0
＊N
00 Y0
＋
00000400.0〜
＋
00000410.0
＋
00000406.0 OK
· The number of styles may be set as follows, depending on the selections made in items ② and ③.
The display will be different for
each measurement program.
* 2
* 1
* 3
* 4
* 6
* 7
* 5
Ex.:
The coordinates [X] is multiplied
by 2 and the results is stored in
N01
1. The constant 2 is stored in
N00
2. The X1 value of the registra-
tion number and the value in
N00 are multiplied, and the
result is stored in N01.
The numbers from 0 to 7 in
front of the characters are
registration numbers.
Numerical calculation
1CALC. RESULT
(calculation results)
2OBJECT TYPE
3FORMULA
(registation number)
4UPPER&LOWER LIMIT
5OUTPUT
6TEST A RUN
(make a test run)
7UPPER MENU
Setting details (selections)
You may set the location where the arithmetical operation results of the specified output data
will be stored, from locations 00 to 15.
⇒The results will be displayed 4 as one unit at position
* 1 above.
Select the type of data being calculated.
A number of style settings are used.
· The style type is selected using the left and right keys and the numerical values are entered
using the up and down keys.
⇒The settings are displayed at N00 to N15, position * 3 above.
The first line of the display will change, according to the selection made in item ②.
Note: Please enter a smaller number for N (00 to 15) in the formula than N (00 to 15) of item
1CALC. RESULT
Enter the upper and lower limits for making a judgment. ⇒This setting will be displayed in N00
to N15, at position * 4 above.
Setting the output of the calculation results.
The output can be set to Y0 to Y7 or C000 to C107. ⇒This setting is displayed in N00 to N15,
at position * 6 above.
Pressing the SET key will store the setting details as well as run a test. ⇒Both the numerical
results of the tests and the OK or NG judgment will be displayed at position * 5 and * 7 above.
Will return to the [TYPE00-MEAS0] menu.
② OBJECT TYPE
Coordinates X/Y
Coordinate deviation
Degree of match M
Angular deviation B
Numerical calculation NC
Constant C
Model 0
0X0 to 7X0 / 0Y0 to 7Y0
0x0 to 7x0 / 0y0 to 7y0
0M0 to 7M0
0B to 7B
ABS / / TAN / ATAN (00 to 15)
-99999999.9 to +99999999.9
Model 1
0X1 to 7X1 / 0Y1 to 7Y1
0x1 to 7x1 / 0y1 to 7y1
0M1 to 7M1
Item ② selections
Coordinates X and Y, positional deviation
coordinates x and y, degree of match M
Angular deviation B
Numerical calculation NC
Constant C
The first line of the display
Record 0 (0 to 7) Model 0 (0 to 1) N00 (0 to 15)
Record 0 (0 to 7) N00 (0 to 15)
ABS √TAN ATAN N00(0 to 15) (second line is
not displayed)
+00000000.0 (second line is not displayed)
(1) The individual numerical calculations for each measuring program
The setting details and procedures for numerical calculations are the same for all measurement
programs with the exception of the point measurement program. In this section we explain the
use of the numerical calculations menu [NUMERIC CALC] for out of position measurements.
- The [NUMERIC CALC] (numerical calculations) menu for positional deviation measurement.
