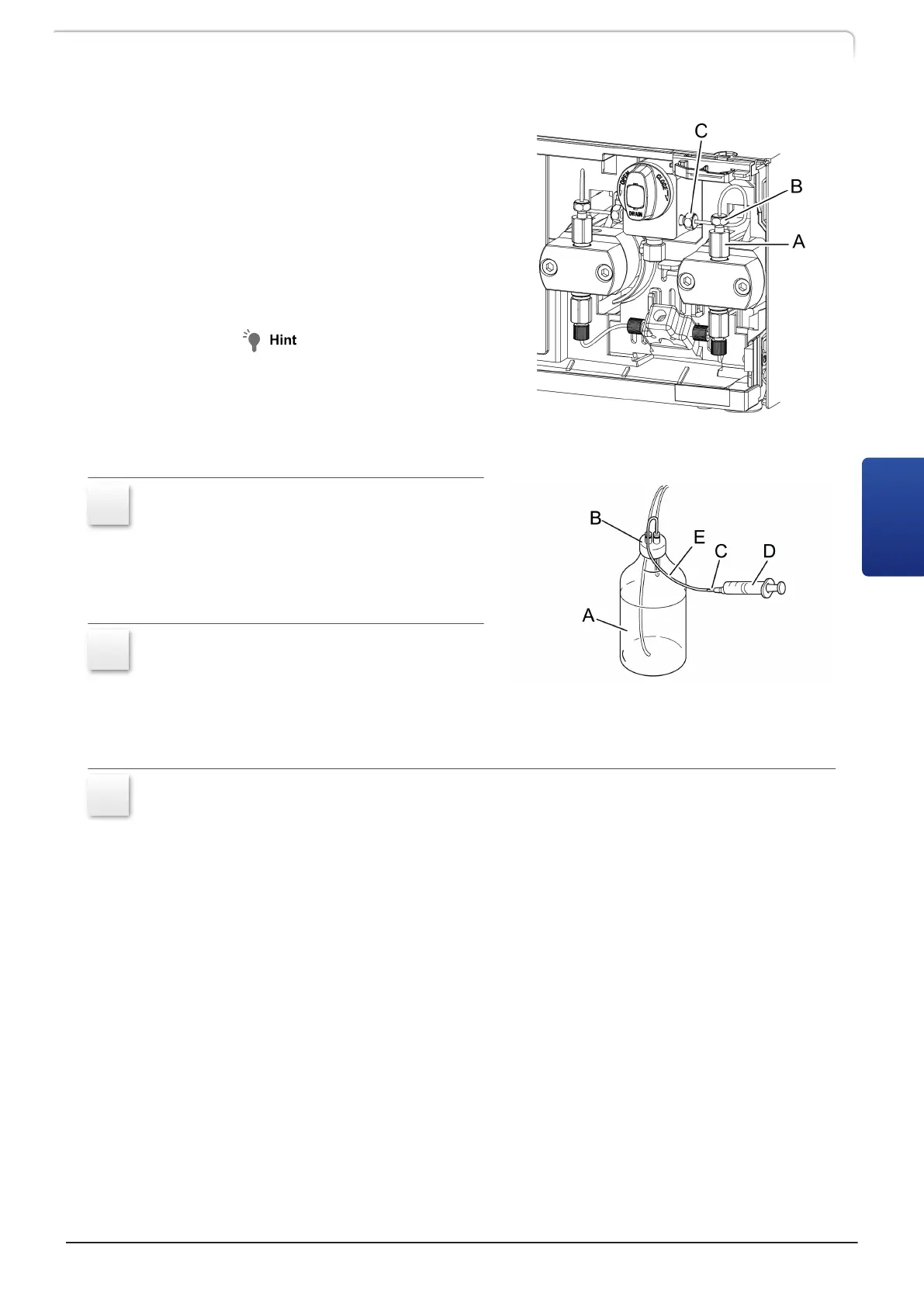

3 While holding the check valve
OUT (A) with a 10-mm wrench,
tighten the SUS pipe R male nut
on the check valve OUT side with
an 8-mm wrench (B).
4 Tighten the pressure sensor side
male nut (C) of the SUS pipe R
with an 8-mm wrench.
Though the orientation is
opposite to the right one
(SUS pipe R), attach the
left tube (SUS pipe L) in
the same procedure.
5
Attach the original rinsing kit cap (B)
to the rinse solution bottle (A), and
then remove the outlet FEP tubing (E)
(upward U-shape) from the rinse
solution bottle.
6
Attach the syringe needle (C) to the
end of the FEP tubing (E) (upward
U-shape), and use the syringe (D) to
suction out the rinse solution from the
rinse flow line.
7
Return the rinsing kit to the reservoir tray.
LC-40D X3 CL LC-40D XR CL
91
4.3 Removing/Installing the Pump Heads
