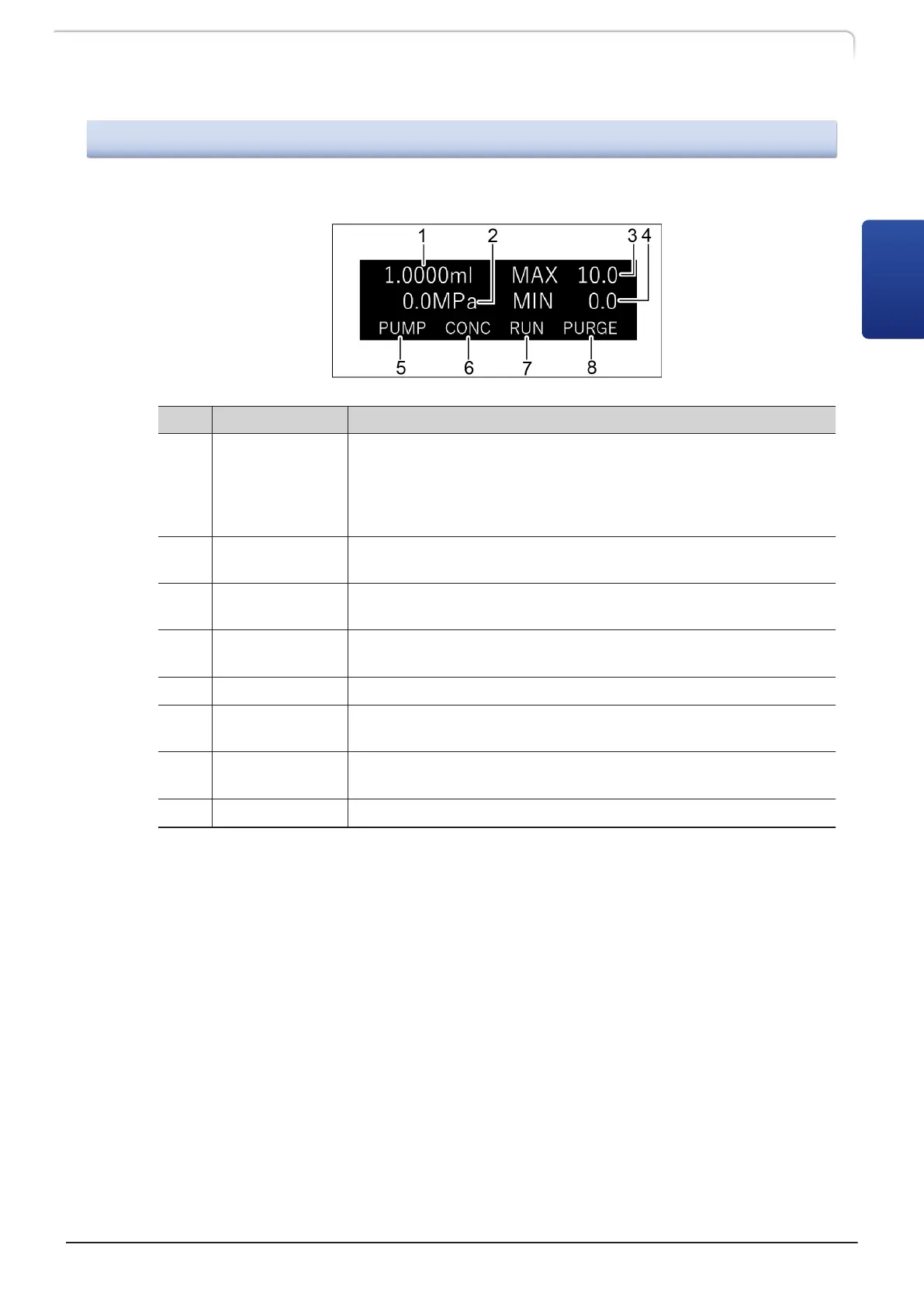

2.5.1 Display Area
In this section the display on the initial screen is described.
No. Name Function
1 Flow/Press
In the constant flow delivery mode, the set flow rate (mL/min) is
displayed.
(Only for LC-40D XR CL) In the constant pressure delivery mode,
the set pressure is displayed in the pressure unit set with the
[PRESSURE UNIT] auxiliary function.
2 Pressure
Displays reading measured by pressure sensor, in units set with
the [PRESSURE UNIT] auxiliary function.
3 P.MAX
The maximum pressure is displayed in the pressure unit set with
the [PRESSURE UNIT] auxiliary function.
4 P.MIN
The minimum pressure is displayed in the pressure unit set with
the [PRESSURE UNIT] auxiliary function.
5 PUMP Highlighted during pump operation.
6 CONC
Highlighted in the low-pressure gradient mode or blinks in the
high-speed LC mode.
7 RUN
Highlighted during execution of a time program or in the
high-speed LC mode.
8 PURGE Highlighted during purging.
LC-40D X3 CL LC-40D XR CL
13
2.5 Name and Functions of the Operation Panel
2
