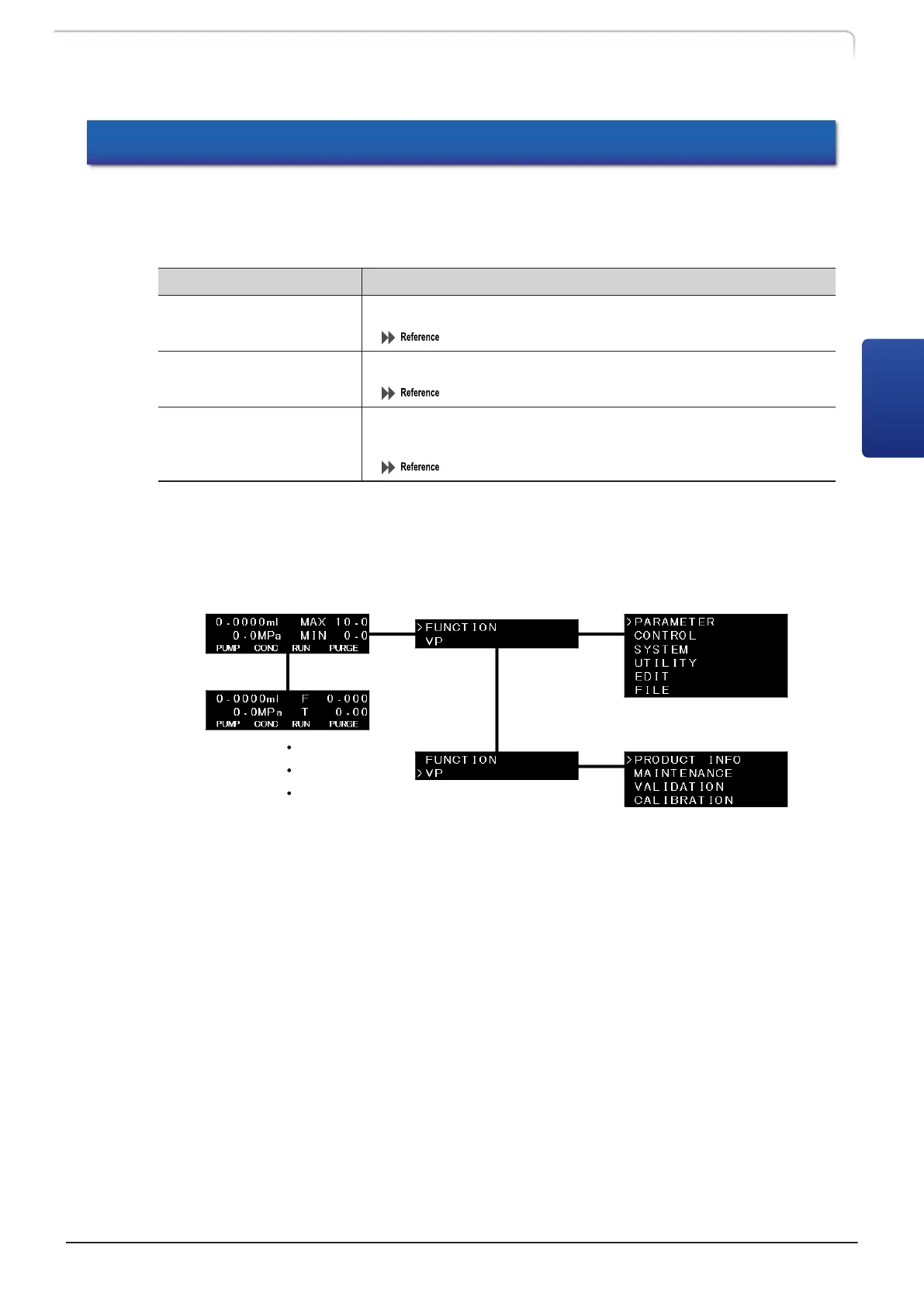

3.3 Types of Screens
Turning ON the power displays the initial screen.
By pressing the [↓] and [→] arrows on the initial screen, the screen can be switched
from the initial screen to one of three screens below:
Displays Screen Description
Monitor screen
View the status of the instrument.
"3.4 Monitoring Screens" P.24
Auxiliary functions screen
Configure various parameter settings and perform operations.
"3.5 Auxiliary Functions Screen (FUNCTION)" P.28
VP function screen
Supports the validation of the instrument with functions for
viewing and checking instrument information.
"3.6 VP Functions Screen" P.47
Pressing [→] on the initial screen displays the screen to select the auxiliary functions
screen [FUNCTION] or VP functions screen [VP]. Move the cursor to the desired option
with [↓] or [↑] and press [→] to display the screen. Press [←] to return to the previous
screen. And Press [CE] to return to the initial screen.
LC-40D X3 CL LC-40D XR CL
23
3.3 Types of Screens
3
