Shimadzu LC-40D XR CL User Manual

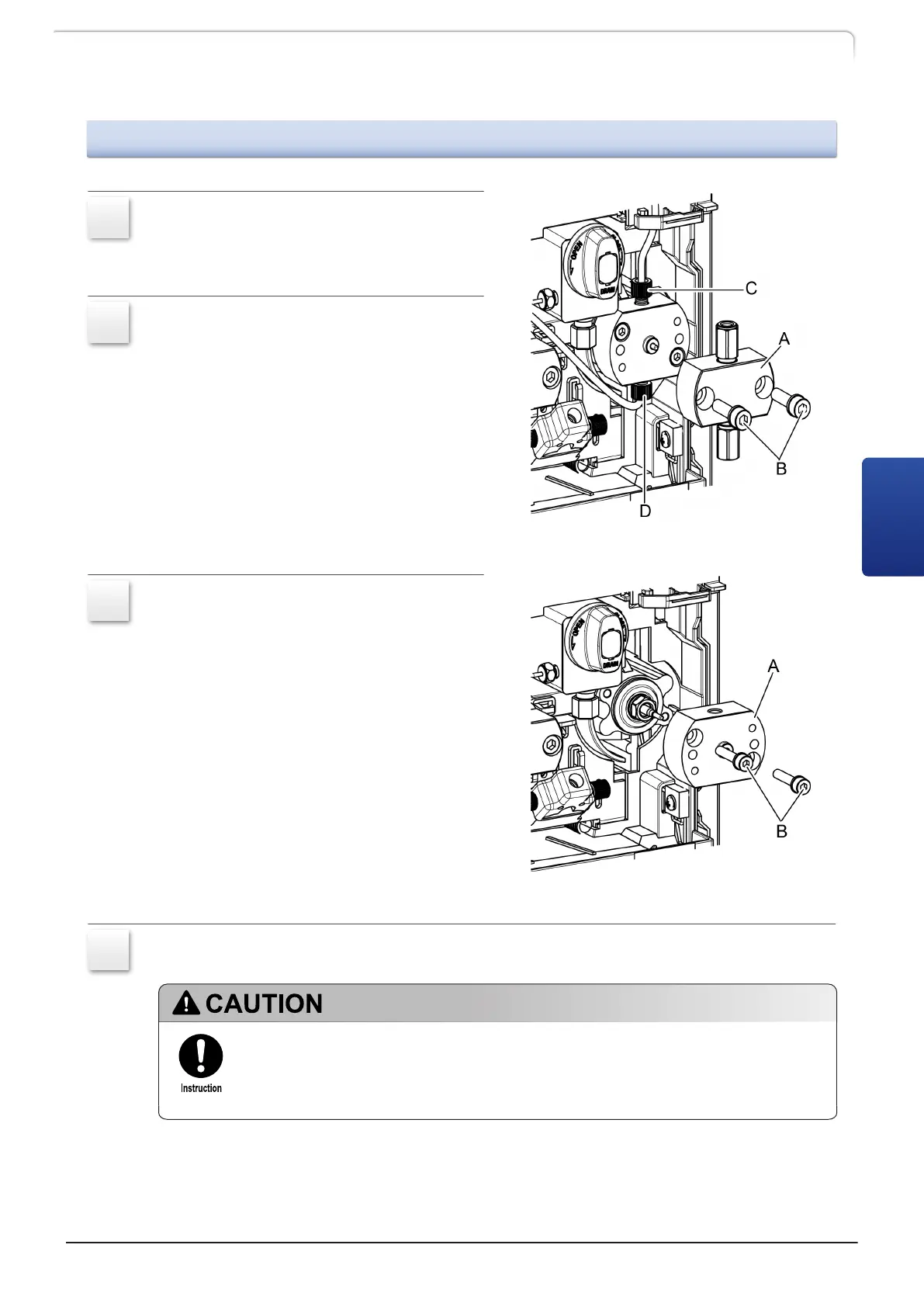

4.5.1 Removing the Pump Head and the Head Holder
1
Remove the pump head, SUS pipe, and
inlet tube by following the instructions
in "Removing the pump head" P.85.
2
Loosen the head holder top and
bottom fittings (C and D), and remove
the rinse tube.
3
Gradually loosen the 2 hexagonal
socket screws (B) of the head holder
(A) using an Allen wrench (M4) by
alternating between the left and right
screw.
4
Remove the head holder.
Gently pull the head holder horizontally along the plunger.
If the head holder is not removed carefully, the plunger may become damaged.
LC-40D X3 CL LC-40D XR CL
101
4.5 Cleaning/ Replacing the Plunger and Diaphragm
4
