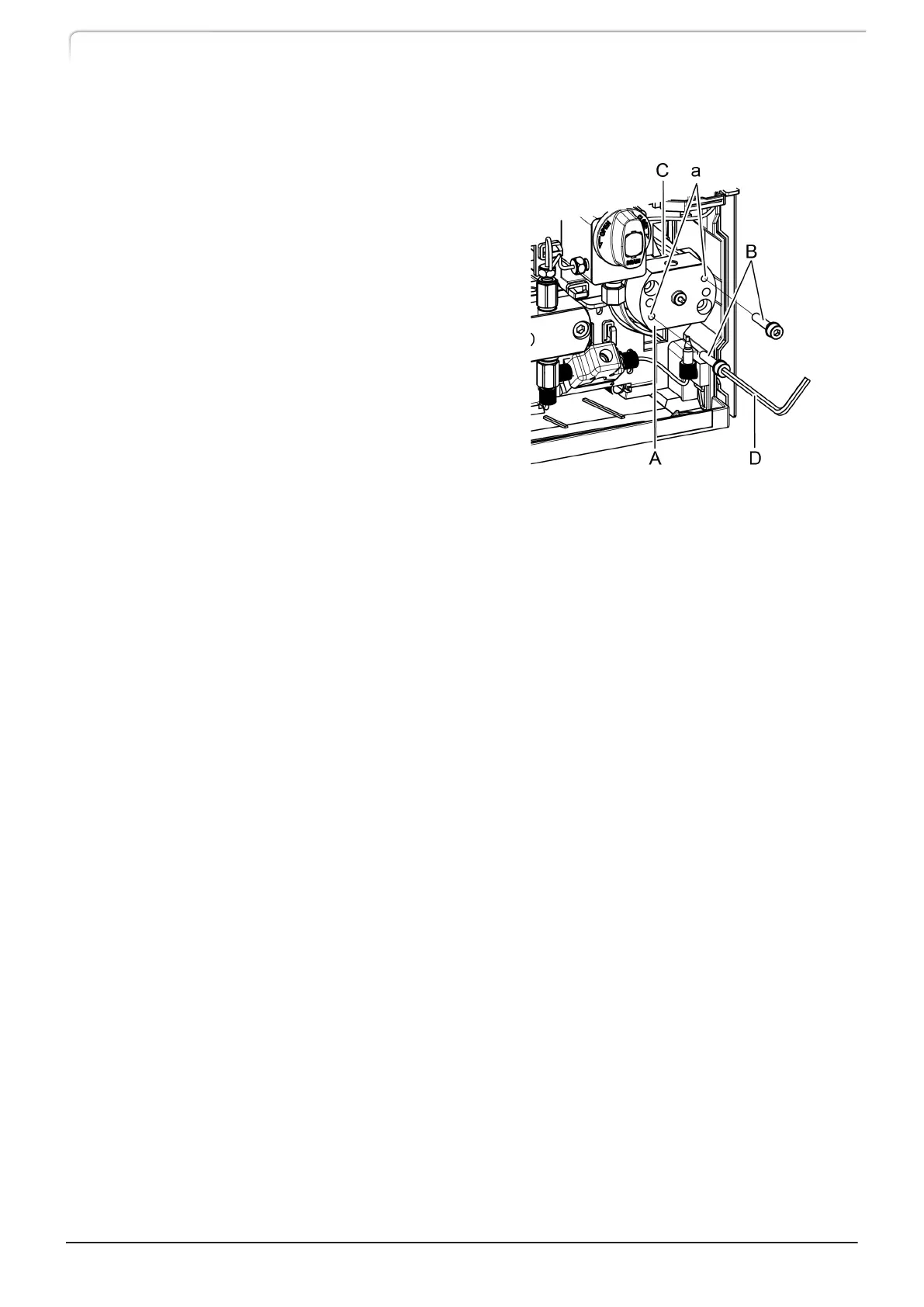

n In the case the head holder is difficult to remove
Insert into the head holder M4 bolt hole
(a) the 2 hexagonal socket screws (B) that
were removed, and tighten the left and
right sides gradually using an Allen wrench
(M4) (D).
The head holder (A) can be loosened by
pushing the pump body (C) using the 2
hexagonal socket screws (B).
102
LC-40D X3 CL LC-40D XR CL
4 Maintenance
