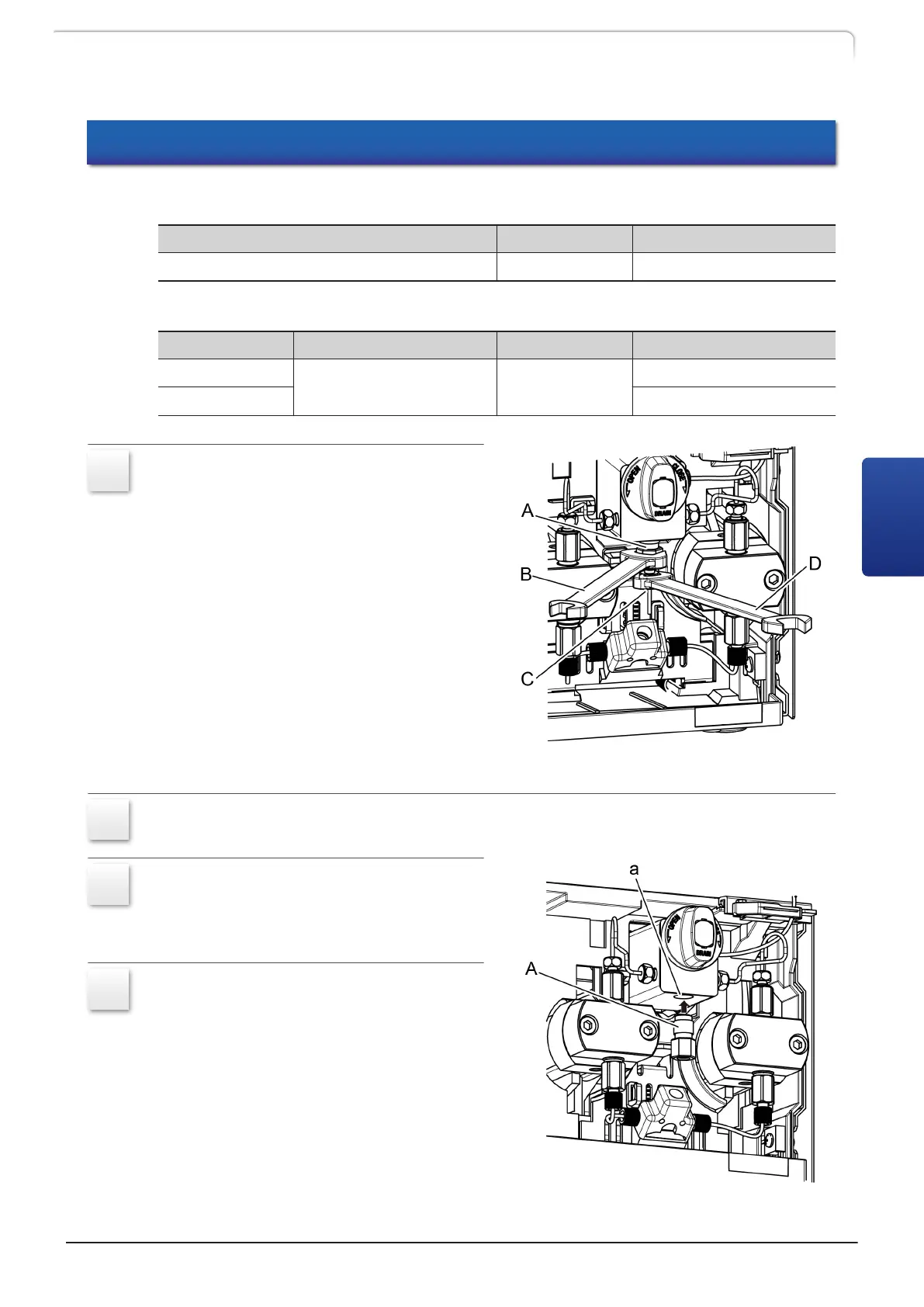

4.10 Replacing the Line Filter
Necessary tools
Part Name Quantity Part No.
Wrench (8 mm and 10 mm) 2 086-03002
Necessary parts
Target Model Part Name Part Type Part No.
LC-40D X3 CL
Line Filter Consumable part
228-57501-92
LC-40D XR CL 228-35871-96
1
Fix the line filter (A) with a 10 mm
wrench (B) and loosen the male nut (C)
of the pump outlet tube with an 8 mm
wrench (D) to remove it.
2
Loosen the line filter (A) with 10 mm wrench to remove it.
3
Wipe with a cotton swab, etc., to wipe
away any dirt from the line filter port
(a).
4
Attach the new line filter (A) to the
line filter port (a) by hand, and tighten
it 45° using a 10 mm wrench.
LC-40D X3 CL LC-40D XR CL
115
4.10 Replacing the Line Filter
4
