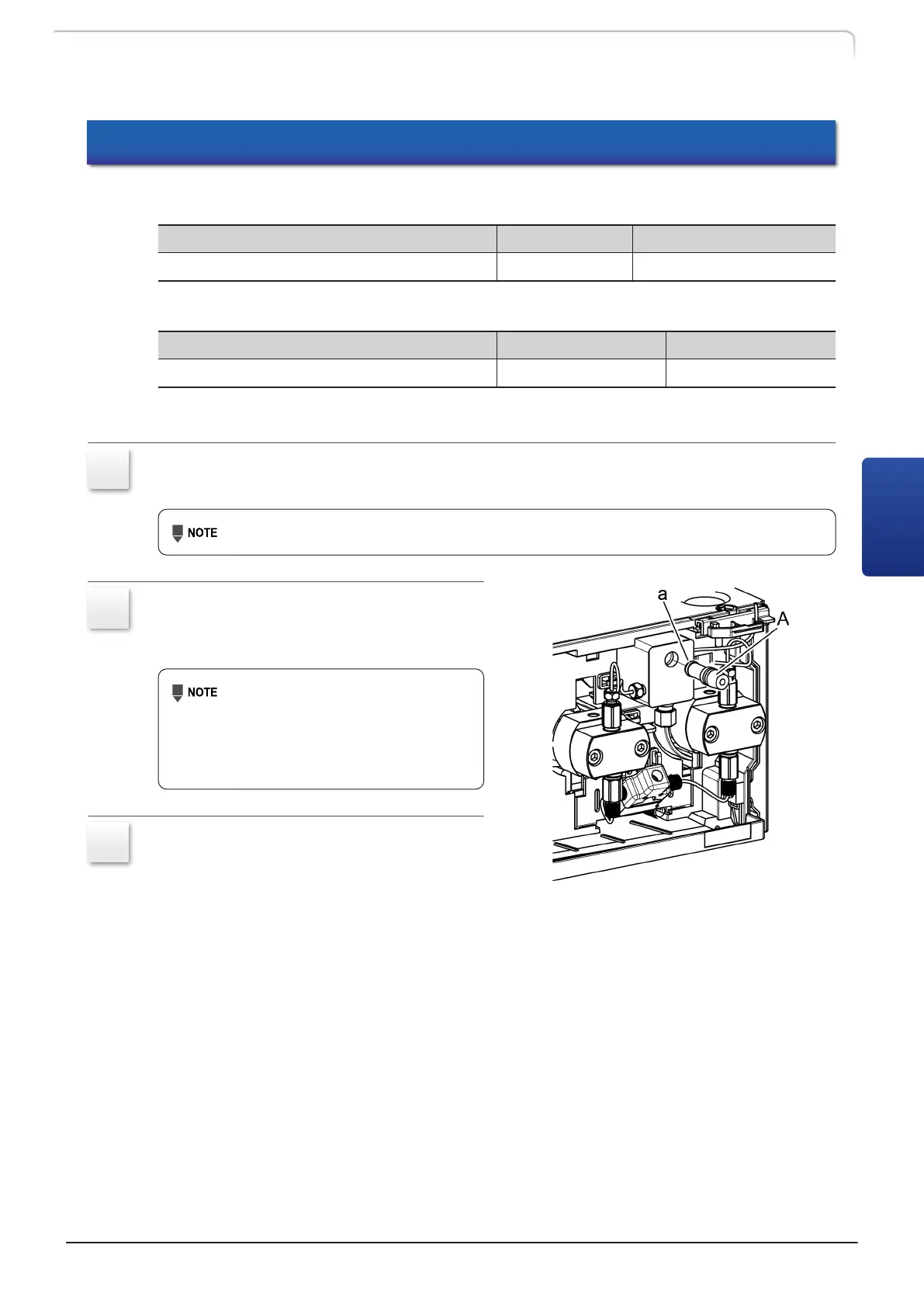

Shimadzu LC-40D XR CL User Manual

4.12 Replacing the Drain Valve
Necessary tools
Part Name Quantity Part No.
Phillips screwdriver 1 -
Necessary parts
Part Name Part Type Part No.
DRAIN VALVE ASSY,TP Replacement part 228-51229-93
1
Rotate the drain valve ASSY counter-clockwise at least 3 complete rotations and
pull it off straight.
Check the hole for foreign objects.
2
Wet the seal portion (a) of the new
drain valve ASSY (A) with 2-propanol,
etc., and insert it into the hole.
If the drain valve ASSY is
forcefully inserted or is not
inserted straight, the seal
portion may become deformed,
resulting in leakage.
3
Tighten the drain valve ASSY
clockwise.
LC-40D X3 CL LC-40D XR CL
119
4.12 Replacing the Drain Valve
4
