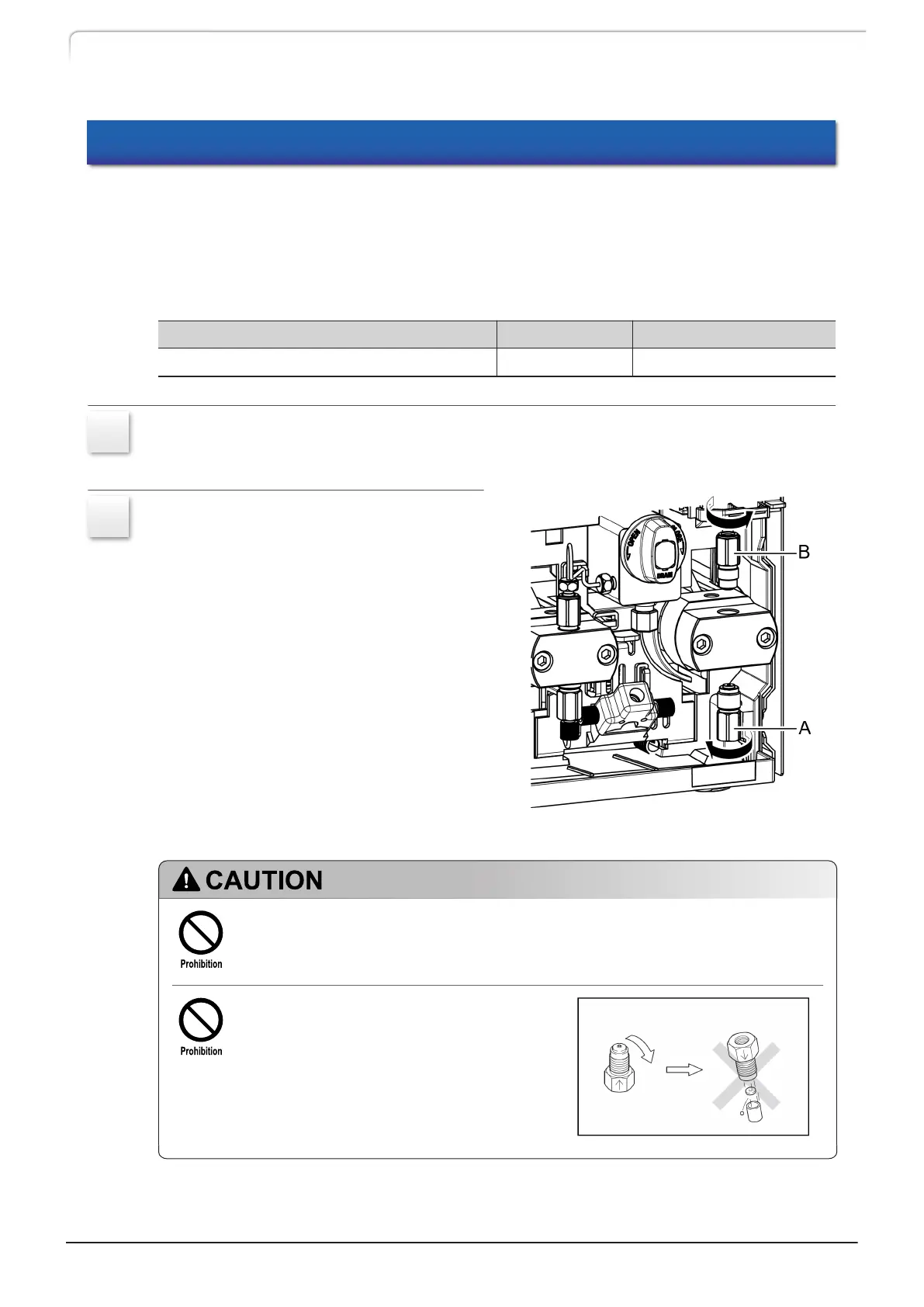

4.7 Performing an Ultrasonic Cleaning of the Check Valve
Check valves are attached to the left and right pump heads. The following section will
explain the method for performing an ultrasonic cleaning of the check valves on the
right side (when viewed from the front). Performing an ultrasonic cleaning of the check
valves on the left side are also the same procedure.
Necessary tools
Part Name Quantity Part No.
Wrench (8 mm and 10 mm) 2 086-03002
1
Remove the SUS pipe and inlet tube by following the instructions in
"Removing
the pump head" P.85
.
2
Use a 10 mm wrench to remove the
inlet check valve (A) and the outlet
check valve (B).
Never disassemble the check valve.
Performance cannot be guaranteed if disassembled.
(For LC-40D X3 CL) Do NOT turn the inlet
check valve (A) upside down.
If you do, the internal parts will fall out.
110
LC-40D X3 CL LC-40D XR CL
4 Maintenance
