SICK Flexi Soft User Manual

5.4.11 Connecting Flexi-Line system
Important information
WARNING
L
imited safety due to buffering elements
The target safety-related level may not be achieved in the event of non-compliance.
►
Do not use any buffering elements in a Flexi Line system, such as CAN bridges,
CAN repeaters or CAN-capable optical photoelectric sensors.
►
Do not use any other components except Flexi Line stations in a Flexi Link system.
NOTICE
O
vervoltage at the Flexi Line inputs
The device may be damaged if this is not observed.
►
Observe the maximum permissible voltage at the Flexi Line inputs of ±30V (to
terminal A2=GND).
Approach
1. Connect the NEXT connection of each station to the PRE connection of the next
station.
2. Connect the identically named terminals with one another, i.e. A with A and B with
B.

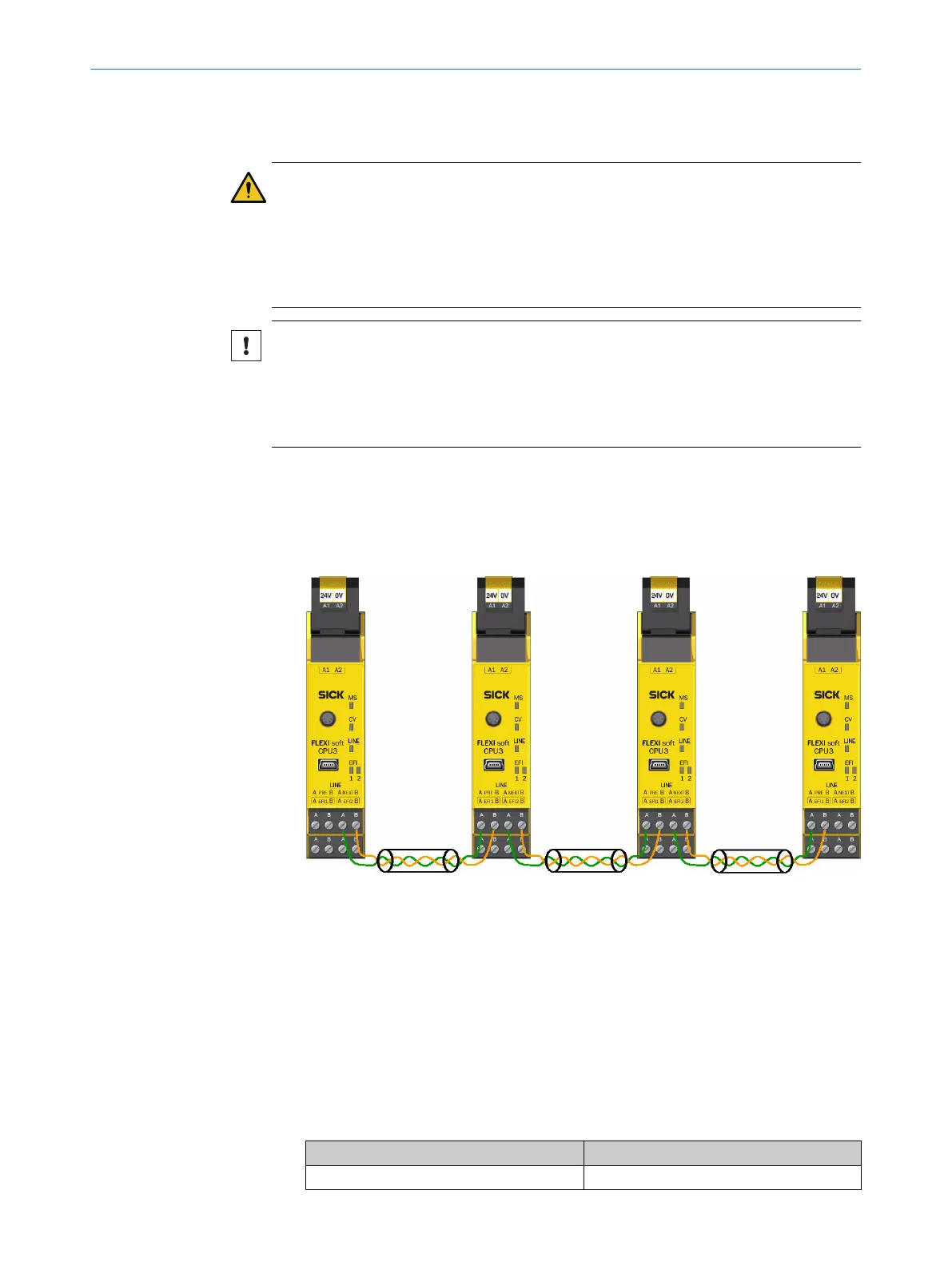

Figure 60: Connection of a Flexi-Line system
3. Connect not used cables to the functional earth (FE) at both ends.
Complementary information
C
onnection:
•
No external terminator is required for the Flexi Line connections on the main
module.
•
Stub cables or star-shaped wiring are not allowed.
•
The maximum permissible total length between two Flexi-Line stations is 1,000m.
Flexi-Line cables
•
Flexi-Line stations can be connected using CAN cables (shielded, twisted pair).
Table 79: Possible lengths of cable and types for Flexi Line connections
Length of cable Cable type
Up to 40m 2 × 0.22mm² (AWG 23)
5 ELECTRICAL INSTALLATION
100
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
