12.4.5 FX3-EBX1, FX3-EBX3, and FX3-EBX4 encoder/motor feedback connection boxes
FX3-EBX1 optimized dual encoder/motor feedback connection box

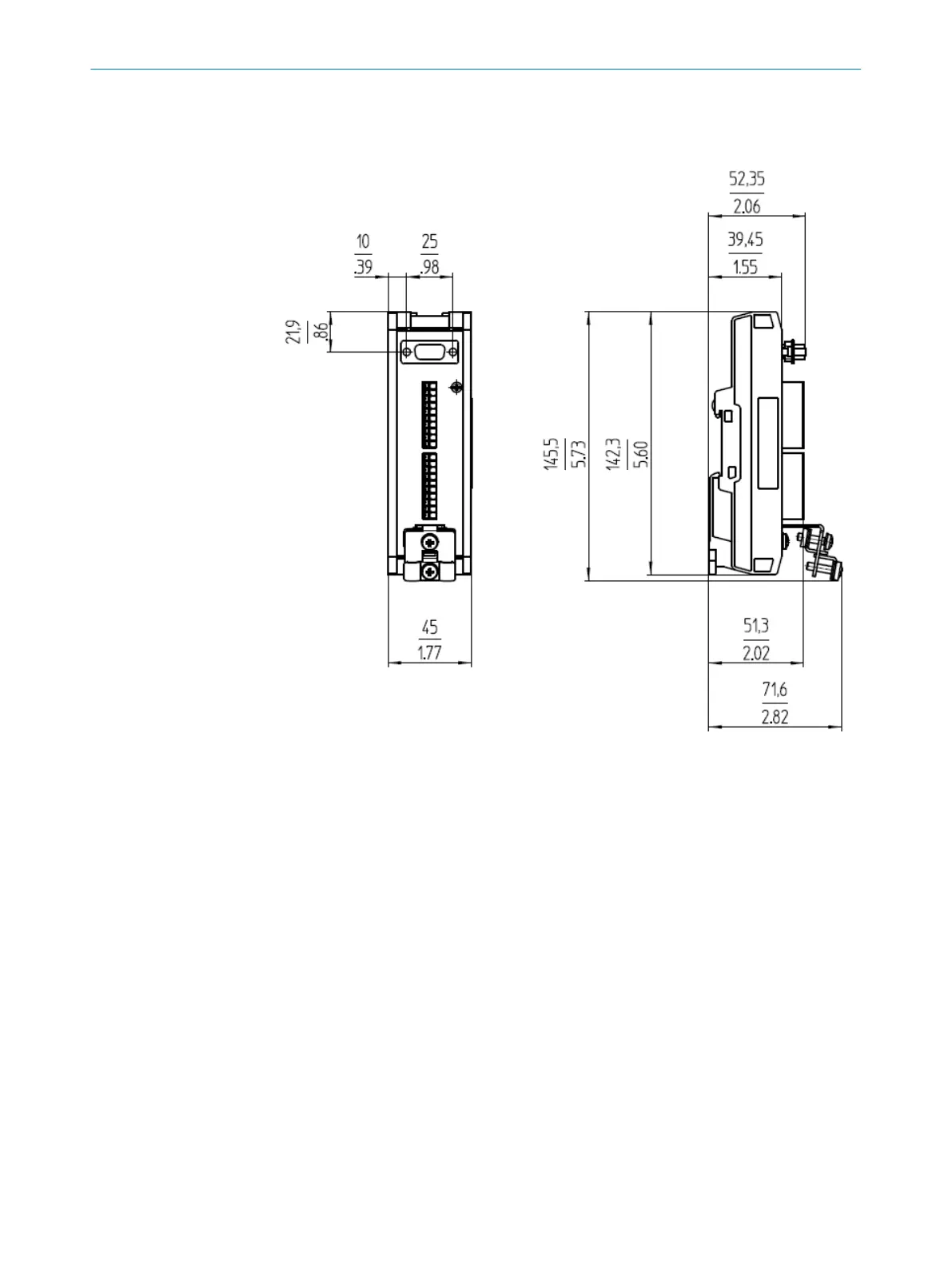

Figure 74: Dimensional drawing for the optimized dual encoder/motor feedback connection box
FX3-EBX1 (mm/
in)
