MS LED (Module St
atus)
6
CV LED (Configuration Verified)
7
EFI1 LED
8
EFI2 LED
9
EFI2_B
ß
EFI2_A
Table 19: Pin assignment at FX3-CPU1 main module with FX3-MPL0 system plug and at FX3-
CPU2 main module with FX3-MPL1 system plug
Terminal Pin assignment
A1 24 V power supply for all modules, with the exception of the supply to
t
he outputs (Q1 … Q4)
A2 Power supply GND
EFI1_A Connections for EFI or for Flexi Link
EFI1_B
EFI2_A
EFI2_B
5.2.3 FX3-CPU3 main module

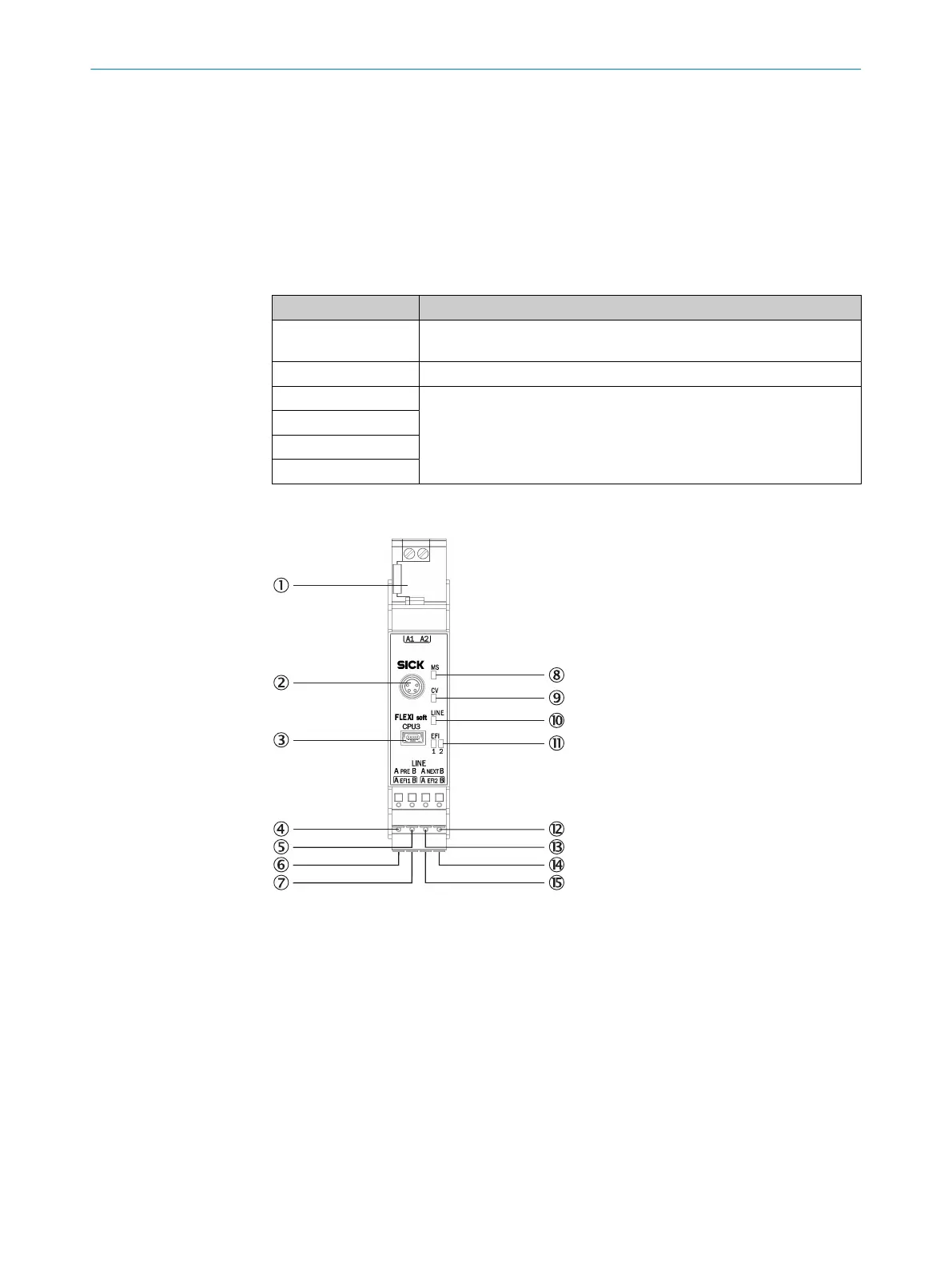

Figure 30: FX3-CPU3 main module
1
FX3-MPL1 system plug
2
RS-232 interface
3
USB interface
4
Line_PRE_A (previous)
5
Line_PRE_B (previous)
6
EFI1_A
7
EFI1_B
8
MS LED (Module St
atus)
9
CV LED (Configuration Verified)
ß
LINE LED
à
EFI1 and EFI2 LEDs
á
Line_NEXT_B (next)
ELECTRICAL INSTALLATION 5
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
55
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
