NOTE
Use of t
hetest outputs
The FX3-XTIOhas two test outputs.
•
For each device to be tested, one test output must be used of the same module to
which the device is connected.
•
If the device to be tested is connected to an odd-numbered input (I1, I3, I5, I7),
then test output X1 mustbe used. If the device to be tested is connected to an
even-numbered input (I2, I4, I6, I8), then test output X2 mustbe used.
5.2.5 FX3-XTDI I/O module

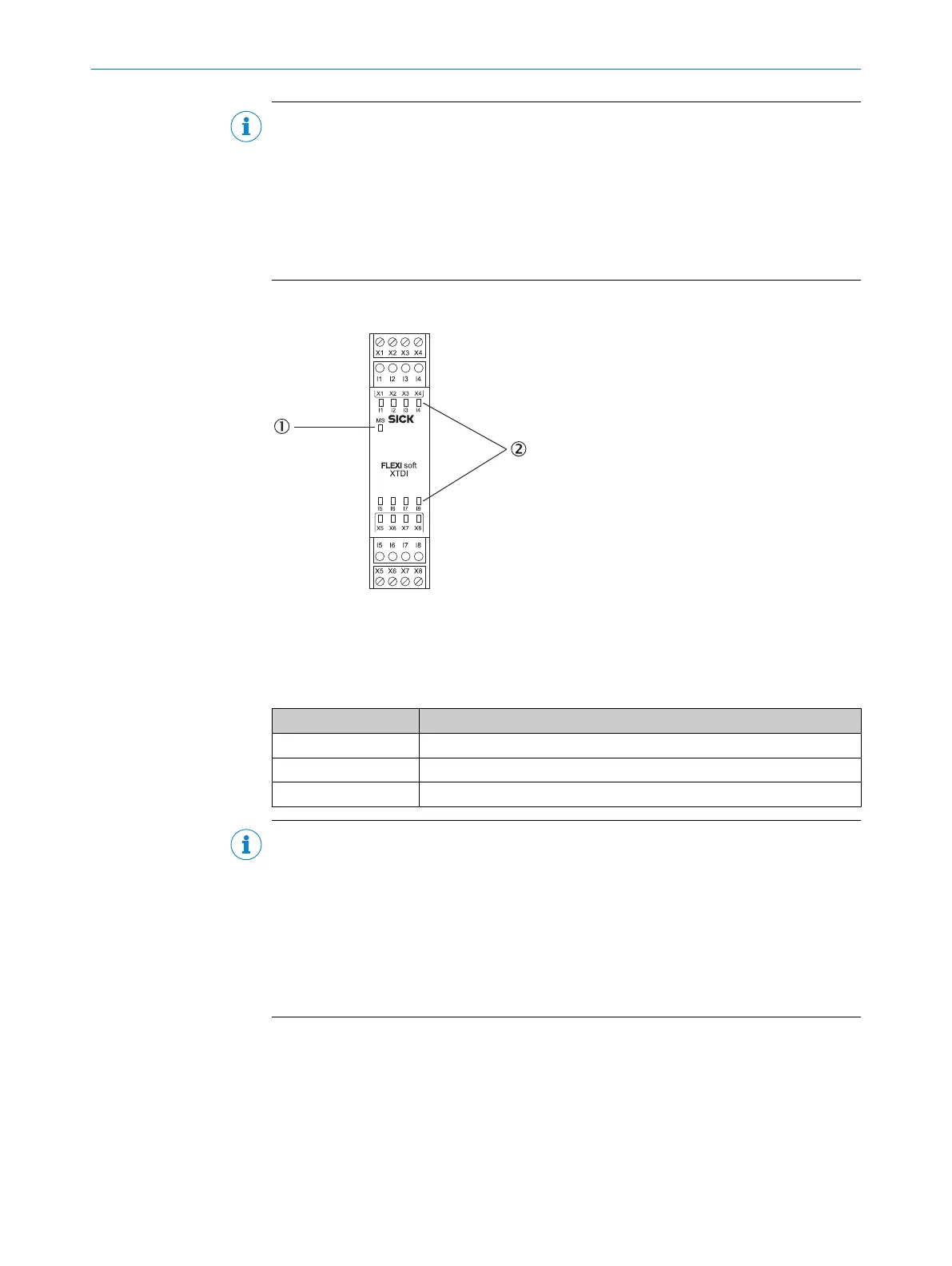

Figure 32: FX3-XTDI I/O module
1
MS LED (Module St
atus)
2
8 input LEDs
Table 22: Pin assignment for the FX3-XTDI I/O module
Terminal Pin assignment
I1 … I8 Safety inputs 1 to 8
X1/X3/X5/X7 Test output 1 (test signal generator 1)
X2/X4/X6/X8 Test output 2 (test signal generator 2)
NOTE
Use of t
hetest outputs
The FX3-XTDIhas eight test outputs.
•
For each device to be tested, one test output must be used of the same module to
which the device is connected.
•
If the device to be tested is connected to an odd-numbered input (I1, I3, I5, I7),
then an odd-numbered test output (X1, X3, X5, X7) mustbe used. If the device
to be tested is connected to an even-numbered input (I2, I4, I6, I8), then an
even-numbered test output (X2, X4, X6, X8) mustbe used.
ELECTRICAL INSTALLATION 5
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
57
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
