3.4.7.1 Internal circuitry

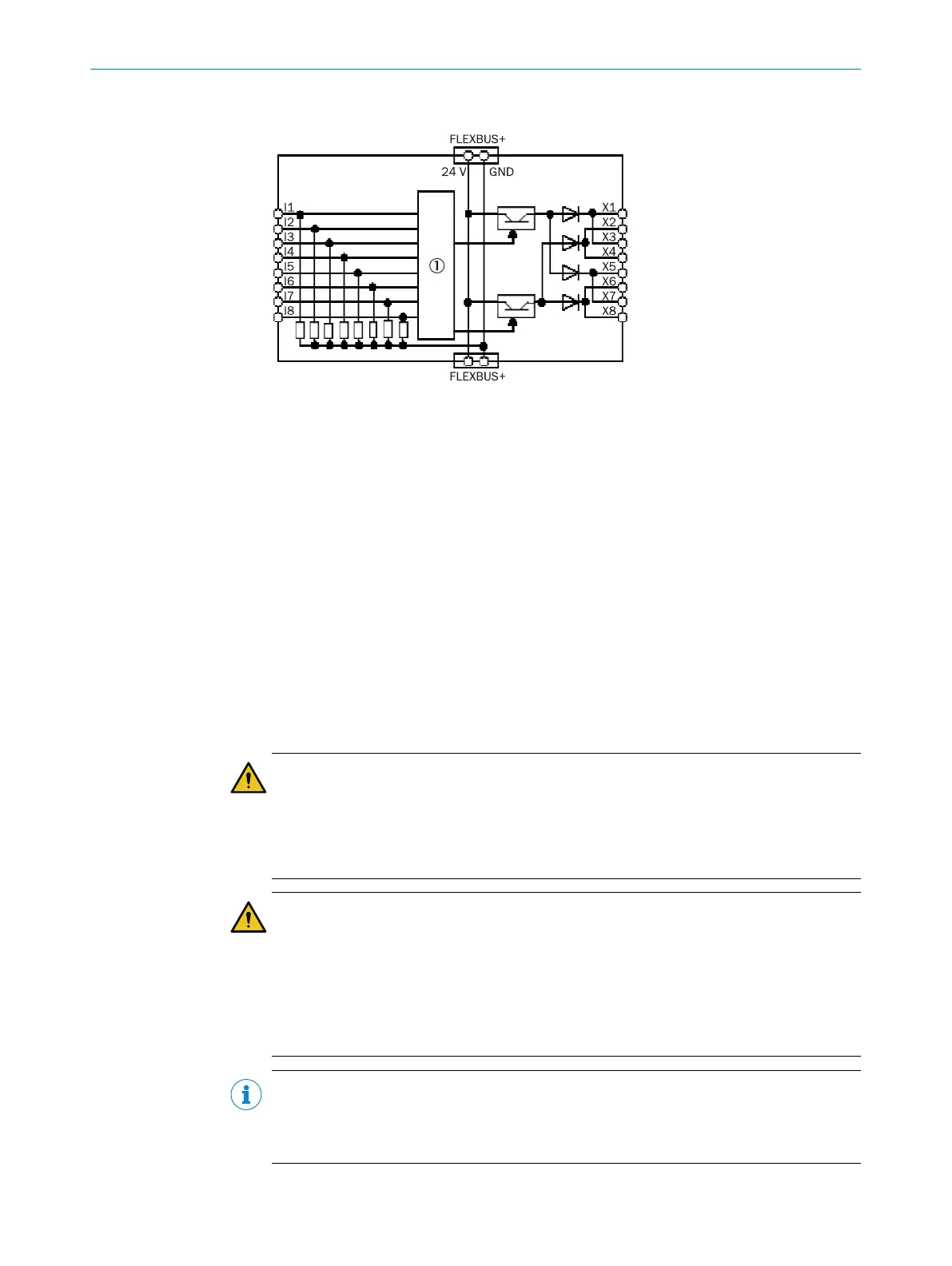

Figure 11: Internal structure of the FX3-XTDI – safety inputs and test outputs
1
Internal logic
3.4.8 FX3-XTDS I/O module
Overview
T
he FX3-XTDS module is an input/output expansion module with 8safety inputs and
4non-safety outputs. It has 2test pulse generators, one for test output XY1 and one for
test output XY2.
The FX3-XTDS module supports the following functions:
•
Monitoring of the connected safety devices
•
Forwarding of information at inputs I1 to I8 to the main module
•
Receipt of control signals from the main module and corresponding switching of
outputs
•
Outputs XY1 and XY2 can be used as either test outputs or non-safe outputs.
Important information
WARNING
Improper use of the non-safety outputs
The dangerous state may not be stopped or not be stopped in a timely manner in the
event of non-compliance.
►
Do not use the FX3-XTDS outputs for safety functions.
WARNING
Ine
ffectiveness of the protective device due to undetected short-circuits between the
test pulse generators
The dangerous state may not be stopped or not be stopped in a timely manner in the
event of non-compliance.
►
Configure the test outputs of the Flexi Soft expansion modules with test pulse
widths ≤4ms and a test pulse interval ≥200ms.
NOTE
If bo
th outputs XY1 and XY2 are used as non-safety outputs, then it is nevertheless
possible to connect a tested element to one of these inputs I1 to I8. However, this
element is marked red in the hardware configuration as a warning.
3 PRODUCT DESCRIPTION
30
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
