SICK Flexi Soft User Manual

Prerequisites
•
T
he module can only be operated with a main module.
I/O module FX3-XTDS
T
he voltage supply for the internal logic and the test outputs is provided via the system
plug and the internal FLEXBUS+ bus.
The voltage supply of the outputs Y3 to Y6 of the FX3-XTDS must be provided directly
via A1/A2 on the respective module.

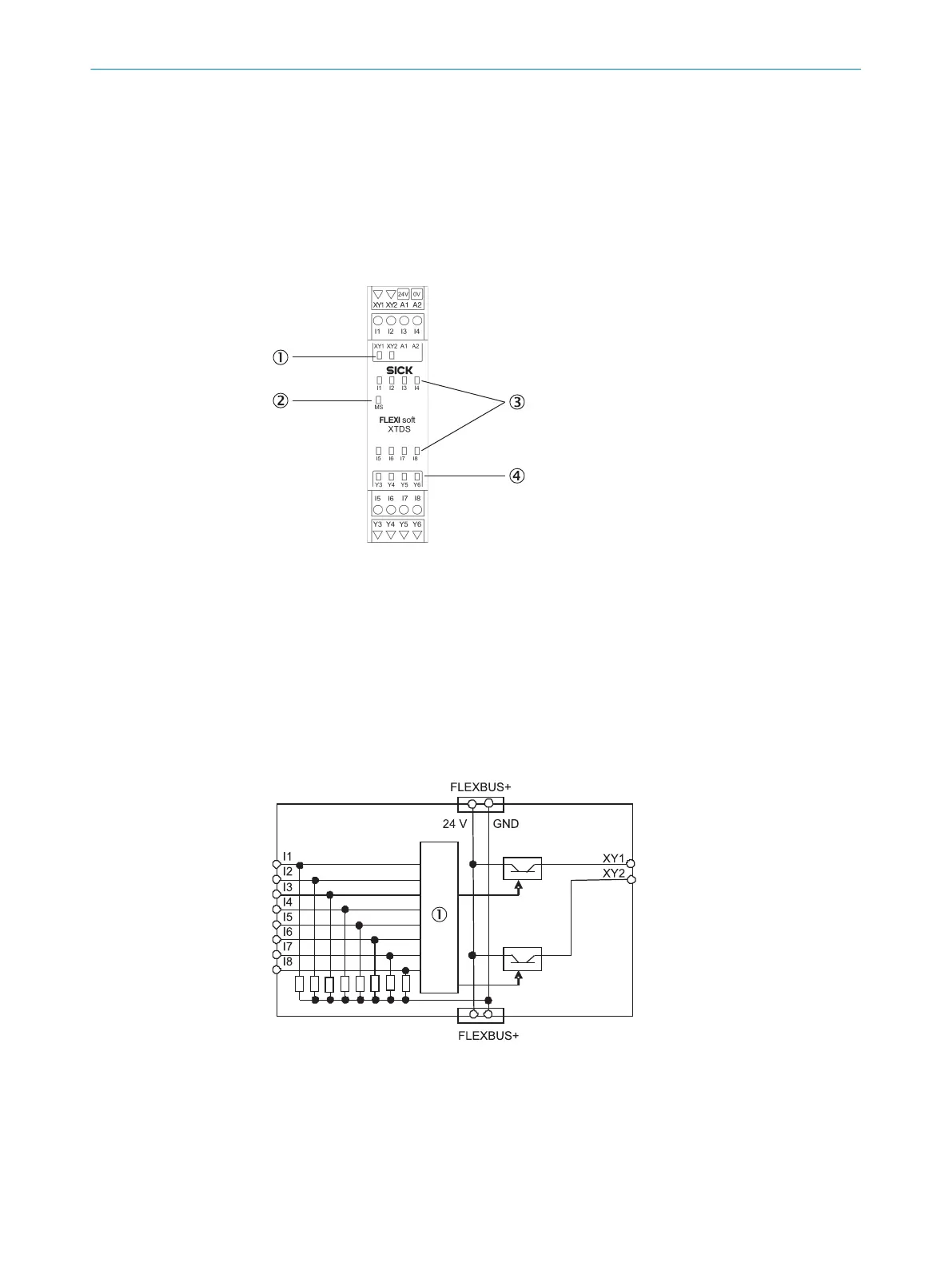

Figure 12: I/O module FX3-XTDS
1
2 LEDs for test outputs or non-safe outputs
2
MS LED (Module St
atus)
3
8 input LEDs
4
4 output LEDs
Further topics
•
"C
onstruction and function", page 17
3.4.8.1 Internal circuitry
Figure 13: Internal structure of the FX3-XTDS – safety inputs and test outputs
1
Internal logic
PRODUCT DESCRIPTION 3
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
31
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
